335 RX - Husqvarna String Trimmer (SN: 20064000001 - 20070100000) HANDLE & CONTROLS Parts Diagram

String Trimmer

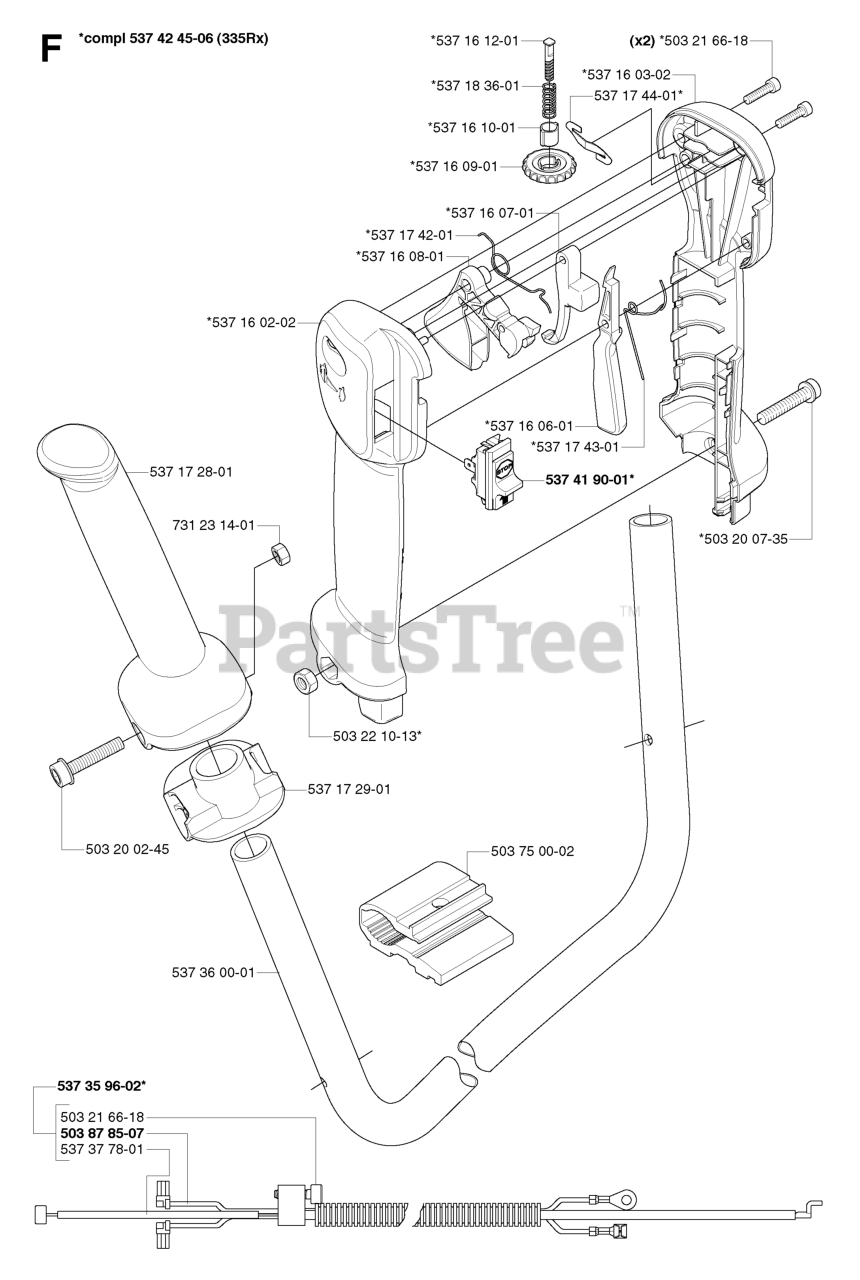

HANDLE & CONTROLS Parts Diagram

  • Title
537 42 45-06

Husqvarna 537424506

HANDLE SYSTEM ASSY.
(Superseded to 537424509)

$79.99

$

Usually ships in 3-10 days

0

503 22 10-13

$7.49

$

In Stock, only 2 left!

0

731 23 14-01

$2.49

$

In Stock, Qty 20+

0

537 18 36-01

Husqvarna 537183601

SPRING

Note: Does not fit with HANDLE HALF 537 16 02-09

$

$

Not available

503 21 66-18

$7.49

$

In Stock, Qty 5

0

503 75 00-02

Husqvarna 503750002

CLAMP
(Superseded to 544020901)

$14.99

$

Usually ships in 3-10 days

0

537 17 29-01

$5.99

$

Usually ships in 3-10 days

0

537 41 90-01

Husqvarna 537419001

STOP BUTTON

$9.49

$

In Stock, only 2 left!

0

537 16 02-02

Husqvarna 537160202

HANDLE
(Superseded to 537160209)

Note: Replaced by 537 18 35-07 HANDLE SYSTEM cpl

$20.99

$

Usually ships in 3-10 days

0

537 36 00-01

$34.99

$

Usually ships in 3-10 days

0

503 87 85-07

Husqvarna 503878507

SHORT CIRCUIT CABLE

$20.99

$

Usually ships in 3-10 days

0

537 35 96-02

Husqvarna 537359602

WIRING KIT COMPLETE

$37.99

$

Usually ships in 3-10 days

0

537 37 78-01

Husqvarna 537377801

THROTTLE WIRE

$42.99

$

Usually ships in 3-10 days

0

537 16 12-01

Husqvarna 537161201

SCREW

Note: Does not fit with HANDLE HALF 537 16 02-09

$3.49

$

Usually ships in 3-10 days

0

537 17 42-01

$6.49

$

In Stock, only 4 left!

0

537 16 03-02

$20.99

$

Usually ships in 3-10 days

0

537 16 10-01

Husqvarna 537161001

HUB

Note: Does not fit with HANDLE HALF 537 16 02-09

$

$

Not available

537 16 09-01

Husqvarna 537160901

STEERING WHEEL

Note: Does not fit with HANDLE HALF 537 16 02-09

$3.49

$

Usually ships in 3-10 days

0

503 20 07-35

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$4.99

$

Usually ships in 3-10 days

0

537 16 06-01

Husqvarna 537160601

THROTTLE LOCK
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0

537 17 28-01

$17.99

$

Usually ships in 3-10 days

0

537 17 44-01

Husqvarna 537174401

PLATE

Note: Does not fit with HANDLE HALF 537 16 02-09

$43.99

$

Usually ships in 3-10 days

0

503 21 66-18

$7.49

$

In Stock, Qty 5

0

537 16 02-09

Husqvarna 537160209

HANDLE HALF LEFT

Note: Without hole for Steering wheel assy

$20.99

$

Usually ships in 3-10 days

0

537 16 07-01

Husqvarna 537160701

LOCKOUT STARTER THROTTLE
(Superseded to 537160703)

$5.99

$

Usually ships in 3-10 days

0

503 20 02-45

$6.49

$

Usually ships in 3-10 days

0

537 17 43-01

$7.49

$

Usually ships in 3-10 days

0

537 16 08-01

Husqvarna 537160801

THROTTLE TRIGGER
(Superseded to 506497701)

$12.99

$

In Stock, only 1 left!

0
