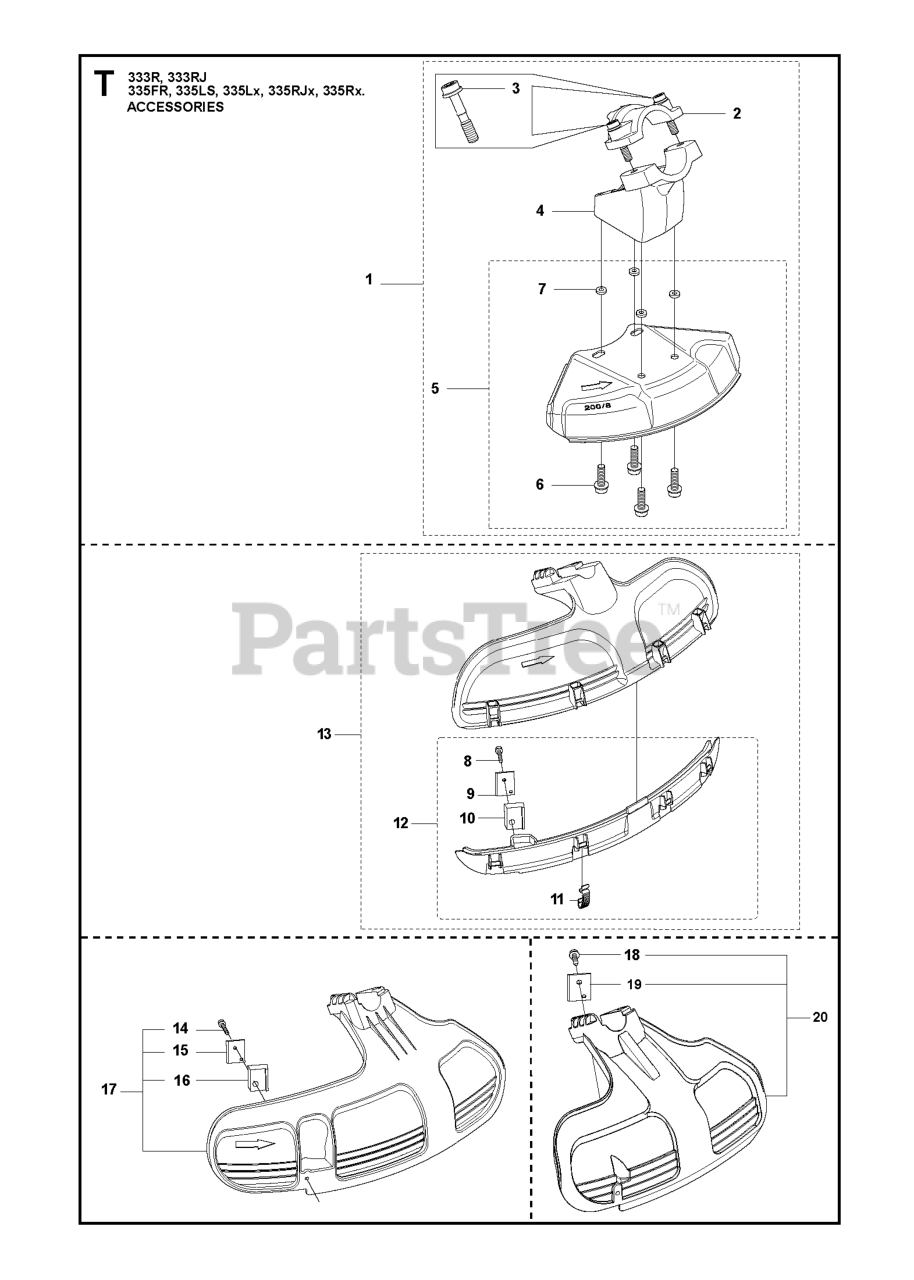

335 LS - Husqvarna String Trimmer (Original) ACCESSORIES Parts Diagram

String Trimmer

ACCESSORIES Parts Diagram

  • Title

13

Husqvarna 537331601

COMBI PROTECTOR

Note: 333R, 335Rx

$56.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537396301

SPLASH GUARD

Note: 333R, 335Rx

$

$

Not available

20

Husqvarna 502448101

TRIMMER GUARD ASSY

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 573994304

SCREW IHSCFMO

Note: Captive Screw M5

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 503210716

SCREW

Note: 333R, 335Rx

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 503798801

LINE CUTTER
(Superseded to 503798802)

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 574039501

LOCKING NUT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544124501

DISTANSBLOCK

Note: 33RJ, 335RJx, 335Lx, 335LS

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537349403

PROTECTOR

$31.99

$

In Stock, Qty 20+

0

5

Husqvarna 574532601

BLADE GUARD

Note: Incl. Pos. 6-7

$28.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503216825

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503798801

LINE CUTTER
(Superseded to 503798802)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 574530601

CLAMP

Note: Spare part incl. Screws Pos. 3

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503216825

SCREW

Note: 333RJ, 335RJx, 335Lx, 335LS

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544124501

DISTANSBLOCK

$8.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501320402

ADAPTER

Note: Incl. Pos. 2-7

$43.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503216825

SCREW

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 501320801

ADAPTER
(Superseded to 501320802)

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537331603

COMBI PROTECTOR

Note: 333RJ, 335Lx, 335RJx, 335LS

$

$

Not available

6

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 537387201

BUCKLE

$

$

Not available

12

Husqvarna 537396303

SPLASH GUARD

Note: 333RJ, 335RJx, 335Lx, 335LS

$

$

Not available

19

Husqvarna 503798801

LINE CUTTER
(Superseded to 503798802)

$6.99

$

In Stock, only 2 left!

0
