335 - International Harvester 21" Self-Propelled Walk-Behind Mower (1971) Magneto And Starter Parts Diagram

21" Self-Propelled Walk-Behind Mower

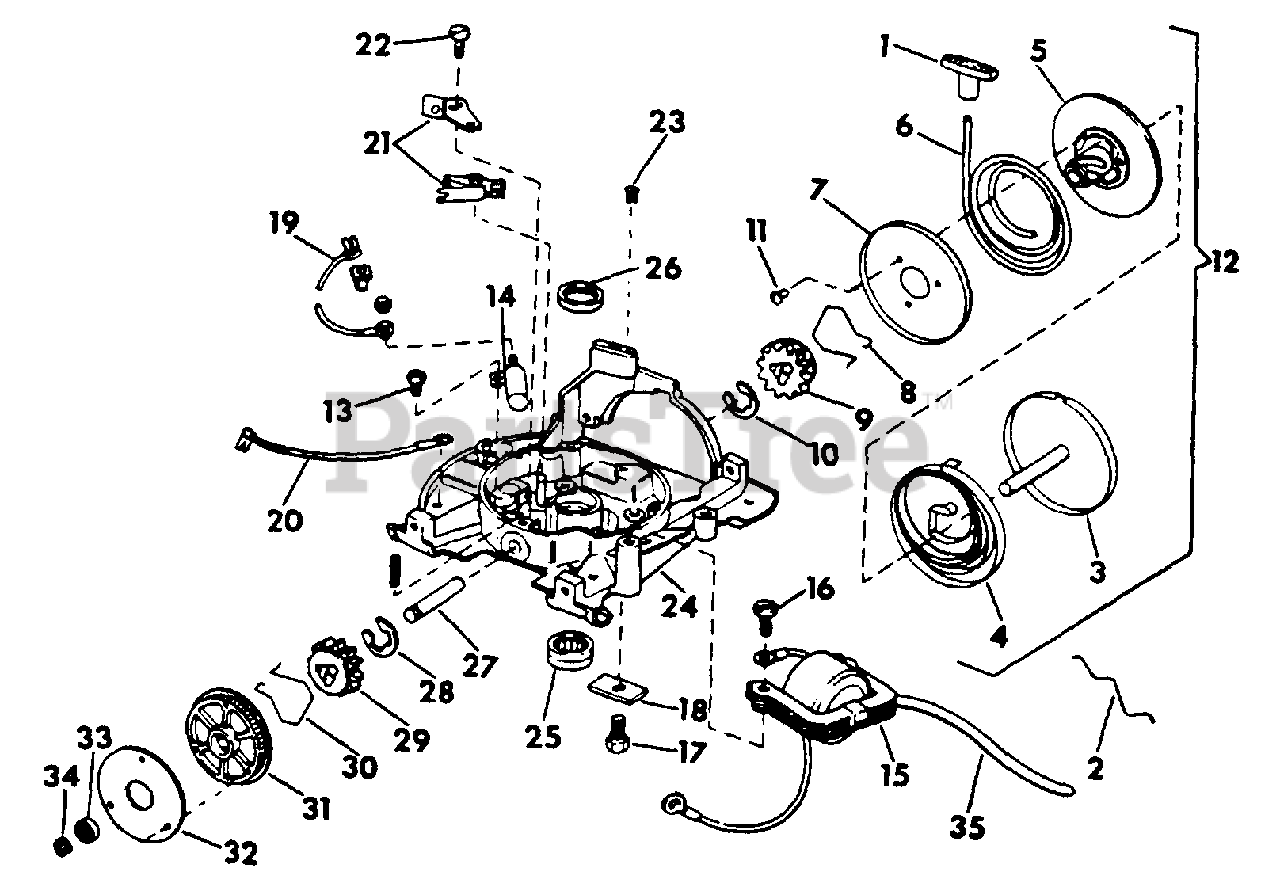

Magneto And Starter Parts Diagram

  • Title

1

Cub Cadet IH-544981-R1

HANDLE, STARTER

$

$

Currently unavailable

2

Cub Cadet IH-544982-R1

SPRING, STARTER ROPE RETAINER

$

$

Not available

3

Cub Cadet IH-544984-R1

SPRING, CUP & PIN

$

$

Currently unavailable

4

Cub Cadet IH-544985-R1

SPRING, STARTER

$

$

Not available

5

Cub Cadet IH-544986-R1

PULLEY, STARTER

$

$

Not available

6

Cub Cadet IH-545061-R1

ROPE, STARTER - 53 IN.

$

$

Not available

7

Cub Cadet IH-545062-R1

PLATE, STARTER PULLEY

$

$

Currently unavailable

8

Cub Cadet IH-545063-R1

SPRING, STARTER PINION

$

$

Not available

9

Cub Cadet IH-545064-R1

PINION, STARTER

$

$

Currently unavailable

10

Cub Cadet IH-373523-R1

RING, RETAINER

$

$

Not available

11

Cub Cadet IH-545066-R1

SCREW, THD CUTTING STARTER

$

$

Currently unavailable

12

Cub Cadet IH-544983-R91

STARTER ASSY

Note: (CONSISTS OF REF NOS 3 THRU 11)

$

$

Currently unavailable

13

Cub Cadet IH-545144-R1

SCREW, CONDENSER MTG

$

$

Currently unavailable

14

Cub Cadet IH-545124-R91

CONDENSER & NUT ASSY

$

$

Currently unavailable

Cub Cadet IH-453996

NUT, 8-32 CAD HEX. MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

15

Cub Cadet IH-545070-R1

COIL & LAMINATION ASSY

$

$

Currently unavailable

16

Cub Cadet IH-545071-R1

SCREW, LAMINATION MTG

$

$

Currently unavailable

17

Cub Cadet IH-545151-R1

SCREW, STARTER ATT

$

$

Currently unavailable

18

Cub Cadet IH-545072-R1

CLAMP, STARTER PIN

$

$

Currently unavailable

19

Cub Cadet IH-545076-R1

TERMINAL & LEAD ASSY

$

$

Currently unavailable

20

Cub Cadet IH-545077-R1

TERMINAL & LEAD ASSY

$

$

Currently unavailable

21

Cub Cadet IH-545116-R1

BREAKER BASE & ARM

$

$

Currently unavailable

Cub Cadet IH-17072-R1

PIN, 1/16 X 1/2 SPRING

$

$

Currently unavailable

22

Cub Cadet IH-545079-R1

SCREW, BREAKER BASE

$

$

Currently unavailable

23

Cub Cadet IH-545080-R1

GROMMET, COVER MTG

$

$

Currently unavailable

24

Cub Cadet IH-545156-R91

ARMATURE PLATE BRG & SEAL ASSY

$

$

Currently unavailable

25

Cub Cadet IH-545073-R91

BEARING

$

$

Not available

26

Cub Cadet IH-544667-R92

SEAL, OIL

$

$

Currently unavailable

27

Cub Cadet IH-545081-R1

SHAFT, STARTER

$

$

Currently unavailable

28

Cub Cadet IH-373523-R1

RING, RETAINING

$

$

Not available

29

Cub Cadet IH-545064-R1

PINION, STARTER

$

$

Currently unavailable

30

Cub Cadet IH-545082-R1

SPRING, STARTER PINION

$

$

Currently unavailable

31

Cub Cadet IH-545083-R1

PULLEY, STARTER

$

$

Currently unavailable

32

Cub Cadet IH-545084-R1

PLATE, STARTER PULLEY

$

$

Currently unavailable

Cub Cadet IH-166251

SCREW, 6-32 X 5/16 C-Z CR-REC-F-HC TAP

$

$

Currently unavailable

33

Cub Cadet IH-545086-R91

BEARING, STARTER PULLEY NEEDLE

$

$

Currently unavailable

34

Cub Cadet IH-110668-R1

RING, RETAINING STARTER SHAFT

$

$

Currently unavailable

35

Cub Cadet IH-545067-R91

HIGH TENSION LEAD ASSY

$

$

Currently unavailable
