3342 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Mower Housing, Rear Shield And Rear Wheels Parts Diagram

21" Self-Propelled Walk-Behind Mower

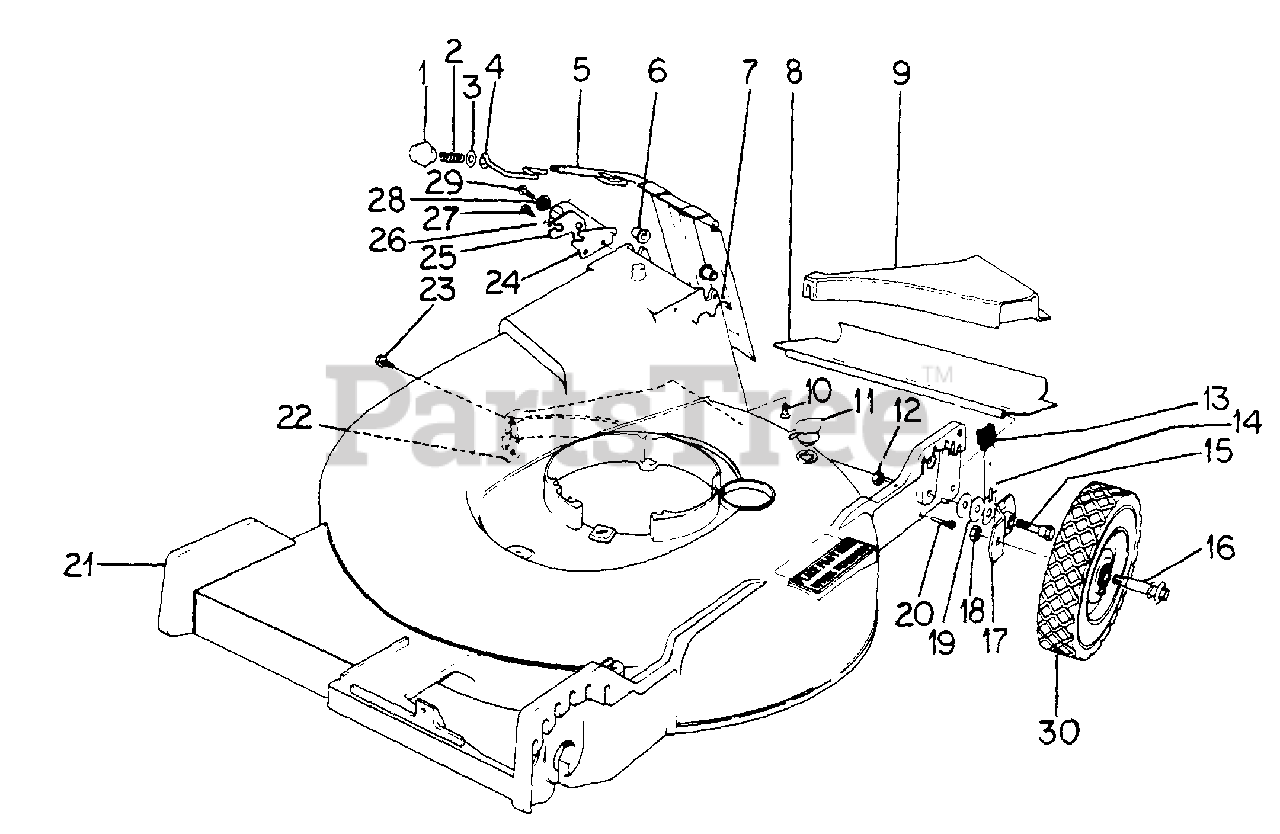

Mower Housing, Rear Shield And Rear Wheels Parts Diagram

  • Title
1

Cub Cadet IH-73550-C1

KNOB, HANDLE

$

$

Currently unavailable

2

Cub Cadet IH-73549-C1

SPRING, COMPRESSION

$

$

Currently unavailable

$

$

Currently unavailable

4

Cub Cadet IH-73547-C1

LATCH, DOOR

$

$

Currently unavailable

5

Cub Cadet IH-73544-C1

HANDLE, DOOR

$

$

Currently unavailable

$

$

Currently unavailable

7

Cub Cadet IH-73546-C1

SPRING, DOOR

$

$

Currently unavailable

8

Cub Cadet IH-73543-C1

SHIELD, REAR

$

$

Currently unavailable

9

Cub Cadet IH-73556-C1

INSERT, REAR

$

$

Currently unavailable

$

$

Currently unavailable

11

Cub Cadet IH-73519-C1

PLUG, WASH-OUT

$

$

Currently unavailable

12

Cub Cadet IH-9411638

NUT, 5/16 CAD P/T LOCK TYPE

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Cub Cadet IH-73527-C1

ARM, SPRING

$

$

Not available

15

Cub Cadet IH-73561-C1

BOLT, PIVOT

$

$

Currently unavailable

Cub Cadet IH-73530-C1

NUT, 5/16-18

$

$

Currently unavailable

16

Cub Cadet IH-73521-C1

BOLT, WHEEL

$

$

Not available

17

Cub Cadet IH-73559-C1

PIVOT, LH REAR

$

$

Currently unavailable

17

Cub Cadet IH-73560-C1

PIVOT, RH REAR

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Cub Cadet IH-71961-C1

WASHER, PIVOT

$

$

Currently unavailable

20

Cub Cadet IH-73517-C1

SCREW, PIVOT

$

$

Currently unavailable

21

Cub Cadet IH-73512-C1

HOUSING, MOWER

$

$

Currently unavailable

Cub Cadet IH-73573-C1

CAP, HOUSING

$

$

Currently unavailable

22

Cub Cadet IH-73557-C1

NUT, SPECIAL

$

$

Currently unavailable

23

Cub Cadet IH-73558-C1

SCREW, SELF TAPPING

$

$

Currently unavailable

24

Cub Cadet IH-73551-C1

CATCH, PLATE

$

$

Currently unavailable

$

$

Currently unavailable

26

Cub Cadet IH-73553-C1

SPRING, TORSION

$

$

Currently unavailable

27

Cub Cadet IH-172427

SCREW, 1/4 X 1/2 H/HD TAP

$

$

Not available

28

Cub Cadet IH-73554-C1

WASHER, LATCH

$

$

Currently unavailable

$

$

Currently unavailable

30

Cub Cadet IH-73535-C1

WHEEL W/TIRE REAR

$

$

Currently unavailable
