3342 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Engine, Shroud, Cutting Blade And Product Graphics Parts Diagram

21" Self-Propelled Walk-Behind Mower

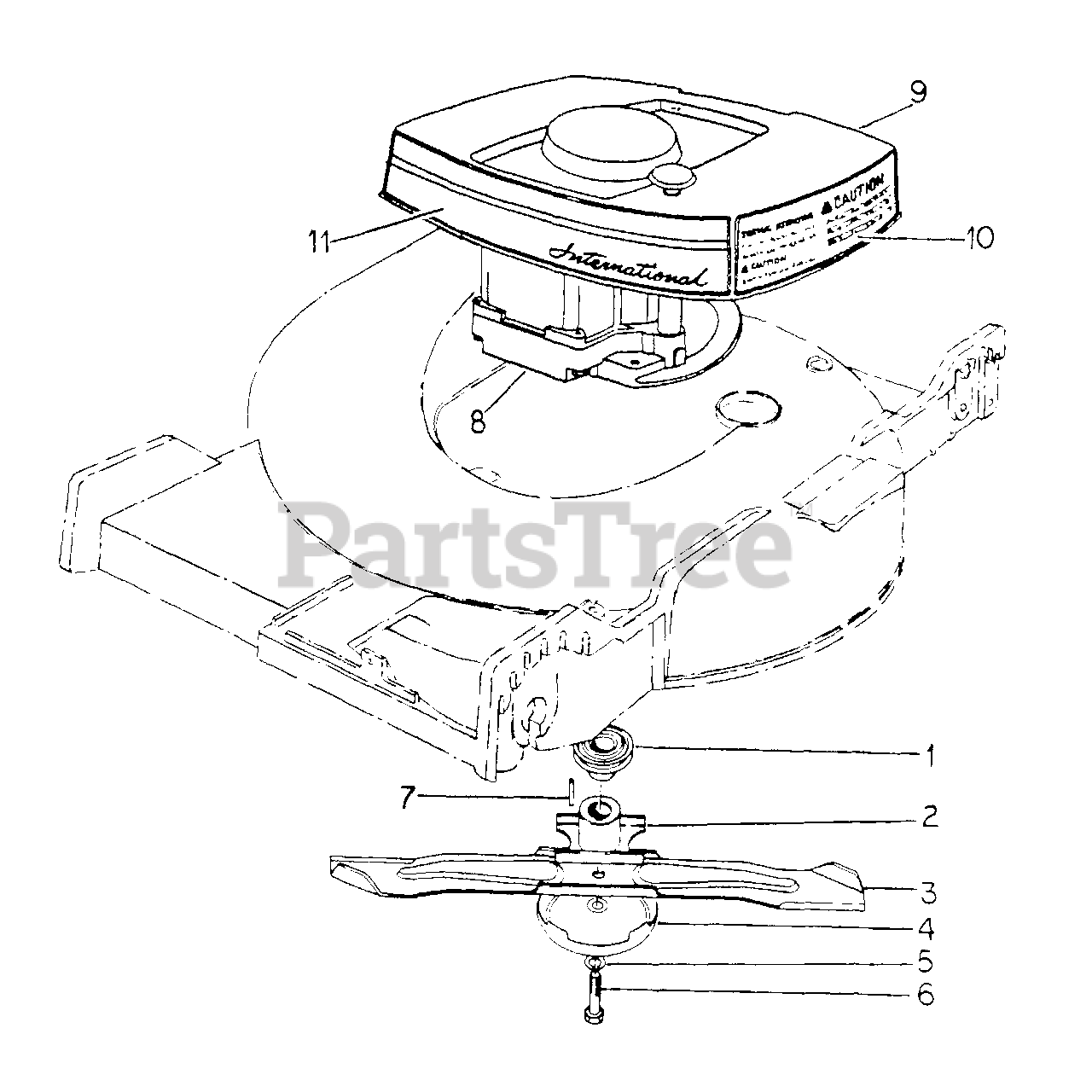

Engine, Shroud, Cutting Blade And Product Graphics Parts Diagram

  • Title

1

Cub Cadet IH-73807-C1

PULLEY, DRIVE

$

$

Currently unavailable

2

Cub Cadet IH-73564-C1

RETAINER, BLADE

$

$

Currently unavailable

3

Cub Cadet IH-73565-C1

BLADE, 21 IN. CUTTING

$

$

Not available

4

Cub Cadet IH-73541-C1

CUP, ANTI-SCALP

$

$

Not available

5

Cub Cadet IH-103328

WASHER, 7/16 HEAVY LOCK

$

$

Currently unavailable

6

Cub Cadet IH-73566-C1

SCREW, BLADE

$

$

Currently unavailable

7

Cub Cadet IH-626803-R1

KEY, 3/16 X .50 SQ PARALLEL
(Superseded to 714-3009)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-73818-C91

ENGINE ASSY, 4 HORSEPOWER

Note: (FOR COMPONENTS SEE "ENGINE ASSEMBLY 4 H.P." ILLUSTRATION AND PARTS LIST.)

$

$

Currently unavailable

Cub Cadet IH-73820-C1

SCREW, 3/8-16 X 2-3/4 HEX-WASHER

$

$

Currently unavailable

9

Cub Cadet IH-73816-C1

SHROUD, ENGINE

$

$

Not available

10

Cub Cadet IH-73505-C1

PRODUCT GRAPHIC, CAUTION AND STARTING INSTRUCTIONS

$

$

Currently unavailable

11

PRODUCT GRAPHIC, INTERNATIONAL NAME TRADEMARK

Note: (NOT SERVICED SEPARATELY, ORDER PACKAGE, IH-73500-C91)

$

$

Not available
