3342 - International Harvester 21" Self-Propelled Walk-Behind Mower (1977 - 1983) Engine Assembly 4 H.P. Parts Diagram

21" Self-Propelled Walk-Behind Mower

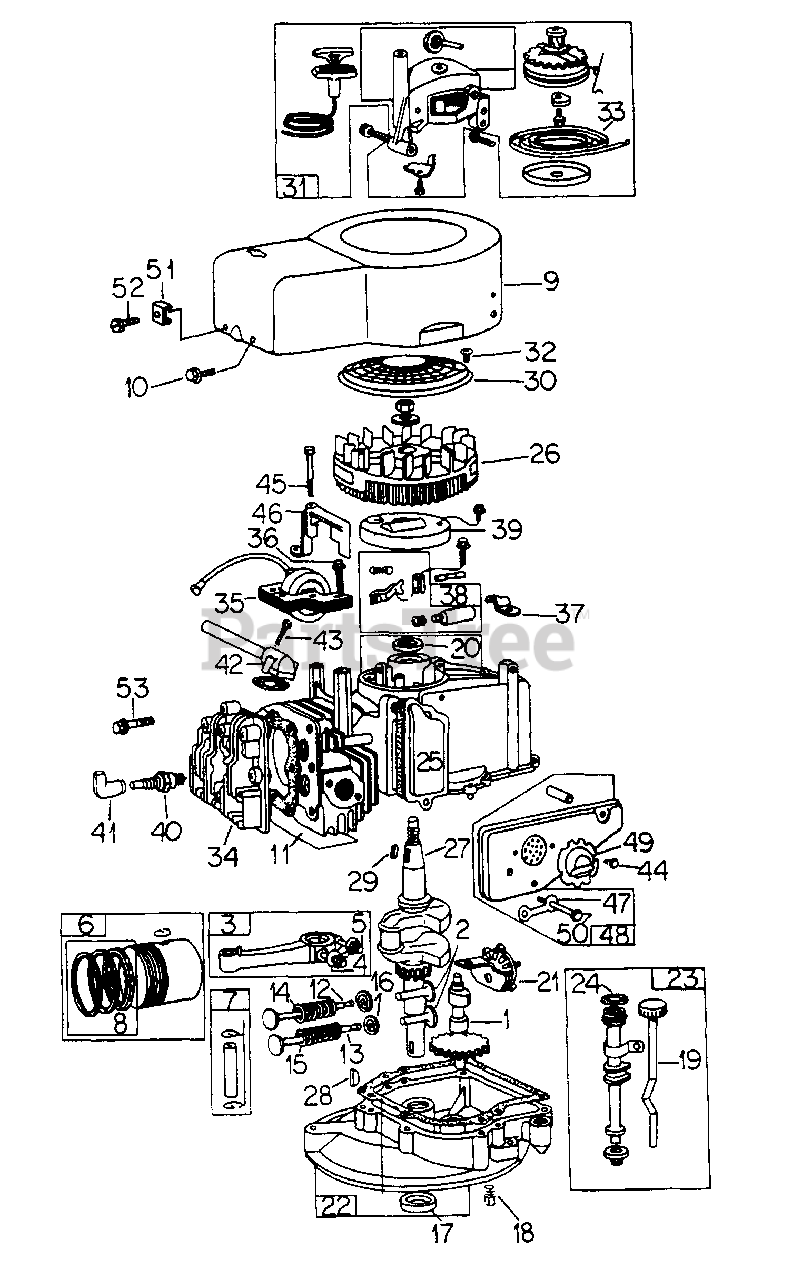

Engine Assembly 4 H.P. Parts Diagram

  • Title

1

Cub Cadet IH-74766-C1

CAMSHAFT

$

$

Currently unavailable

2

Cub Cadet IH-74756-C1

TAPPET, VALVE

$

$

Currently unavailable

3

Cub Cadet IH-74704-C91

ROD ASSY, CONNECTING STANDARD

$

$

Currently unavailable

4

Cub Cadet IH-74705-C1

LOCK, SCREW HEAD

$

$

Currently unavailable

5

Cub Cadet IH-74706-C1

SCREW, CONNECTING ROD

$

$

Currently unavailable

6

Cub Cadet IH-74938-C1

PISTON ASSY, STANDARD

$

$

Not available

7

Cub Cadet IH-74939-C1

PIN, PISTON & RETAINER - STD

$

$

Currently unavailable

8

Cub Cadet IH-74937-C1

RING SET, PISTON - STANDARD

$

$

Not available

9

Cub Cadet IH-74713-C1

HOUSING, BLOWER

$

$

Currently unavailable

10

Cub Cadet IH-74924-C1

SCREW, BLOWER HOUSING

$

$

Currently unavailable

11

Cub Cadet IH-74714-C1

SHIELD, CYLINDER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, NO. 8 X 3/8 ZNP H/HD MACH

$

$

Currently unavailable

12

Cub Cadet IH-74708-C1

VALVE, INTAKE

$

$

Currently unavailable

13

Cub Cadet IH-74707-C1

VALVE, EXHAUST

$

$

Not available

14

Cub Cadet IH-549865-R1

SPRING, INTAKE VALVE

$

$

Currently unavailable

15

Cub Cadet IH-539668-R1

SPRING, EXHAUST VALVE

$

$

Not available

16

Cub Cadet IH-549389-R1

RETAINER, VALVE SPRING
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

17

Cub Cadet IH-74921-C1

SEAL, OIL
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

18

Cub Cadet IH-445686

PLUG, 3/8-18 AUTO, SQ-HD GAL DRAIN
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

19

Cub Cadet IH-74932-C1

GAUGE

$

$

Not available

20

Cub Cadet IH-74709-C1

SEAL, OIL
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet IH-63600-C1

SLINGER, OIL GEAR BRACKET

$

$

Currently unavailable

22

Cub Cadet IH-74935-C1

SUMP, OIL

$

$

Currently unavailable

23

Cub Cadet IH-74736-C1

FILLER, OIL

$

$

Currently unavailable

24

Cub Cadet IH-25423-R1

RING, OIL FILLER CAP

$

$

Currently unavailable

25

Cub Cadet IH-63605-C1

BREATHER, VALVE CHAMBER

$

$

Not available

26

Cub Cadet IH-74936-R1

FLYWHEEL, MAGNETO

$

$

Currently unavailable

27

Cub Cadet IH-73058-C1

CRANKSHAFT

$

$

Currently unavailable

28

Cub Cadet IH-74719-C1

KEY, CRANKSHAFT

$

$

Currently unavailable

29

Cub Cadet IH-545434-R1

KEY, FLYWHEEL

$

$

Currently unavailable

30

Cub Cadet IH-74715-C1

SCREEN, ROTATING

$

$

Not available

31

Cub Cadet IH-74933-C1

STARTER, VERTICAL PULL

$

$

Not available

32

Cub Cadet IH-74710-C1

SCREW, SCREEN MOUNTING

$

$

Currently unavailable

33

Cub Cadet IH-63621-C1

SPRING, VERTICAL PULL STARTER

$

$

Not available

34

Cub Cadet IH-73059-C1

HEAD, CYLINDER

$

$

Currently unavailable

35

Cub Cadet IH-60401-C1

ARMATURE, MAGNETO

$

$

Not available

36

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

37

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

$

$

Currently unavailable

38

Cub Cadet IH-74717-C1

POINTS AND CONDENSER

$

$

Not available

39

Cub Cadet IH-539705-R1

COVER, BREAKER POINT

$

$

Currently unavailable

Cub Cadet IH-26000-R1

SCREW, NO. 8 X 3/8 H/WHD TAP

$

$

Not available

40

IH-CJ8

PLUG, SPARK (CHAMPION)

$

$

Not available

41

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

42

Cub Cadet IH-74733-C1

TUBE, FUEL INTAKE

$

$

Currently unavailable

43

Cub Cadet IH-63648-C1

SCREW, INTAKE ELBOW MOUNTING

$

$

Currently unavailable

44

Cub Cadet IH-74735-C1

SCREW, MUFFLER DEFLECTOR
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

45

Cub Cadet IH-63667-C1

SCREW

$

$

Currently unavailable

46

Cub Cadet IH-63666-C1

BLADE, GOVERNOR

$

$

Not available

47

LOCK, MUFFLER SCREW

Note: (FURNISHED ONLY AS PART OF MUFFLER ASSY)

$

$

Not available

48

Cub Cadet IH-74712-C1

MUFFLER ASSY, EXHAUST

$

$

Currently unavailable

49

Cub Cadet IH-74734-C1

DEFLECTOR, MUFFLER

$

$

Currently unavailable

50

SCREW, MUFFLER MOUNTING

Note: (FURNISHED ONLY AS PART OF MUFFLER ASSY)

$

$

Not available

51

Cub Cadet IH-539726-R1

CLAMP, CASING

$

$

Not available

52

Cub Cadet IH-539731-R1

SCREW W/LOCKWASHER, HEX-HD

$

$

Not available

53

Cub Cadet IH-60402-C1

BOLT, CYLINDER HEAD
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

Cub Cadet IH-74716-C1

GASKET SET, ENGINE

Note: (CONSISTS OF THE FOLLOWING 7 ITEMS)

$

$

Not available

GASKET, CRANKCASE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .005 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .009 THICK

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CYLINDER HEAD

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, FUEL TANK MOUNTING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, INTAKE ELBOW

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, VALVE COVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available
