334 T - Husqvarna Chainsaw (SN: 20060100001 - 20063600000) CARBURETOR DETAILS Parts Diagram

Chainsaw

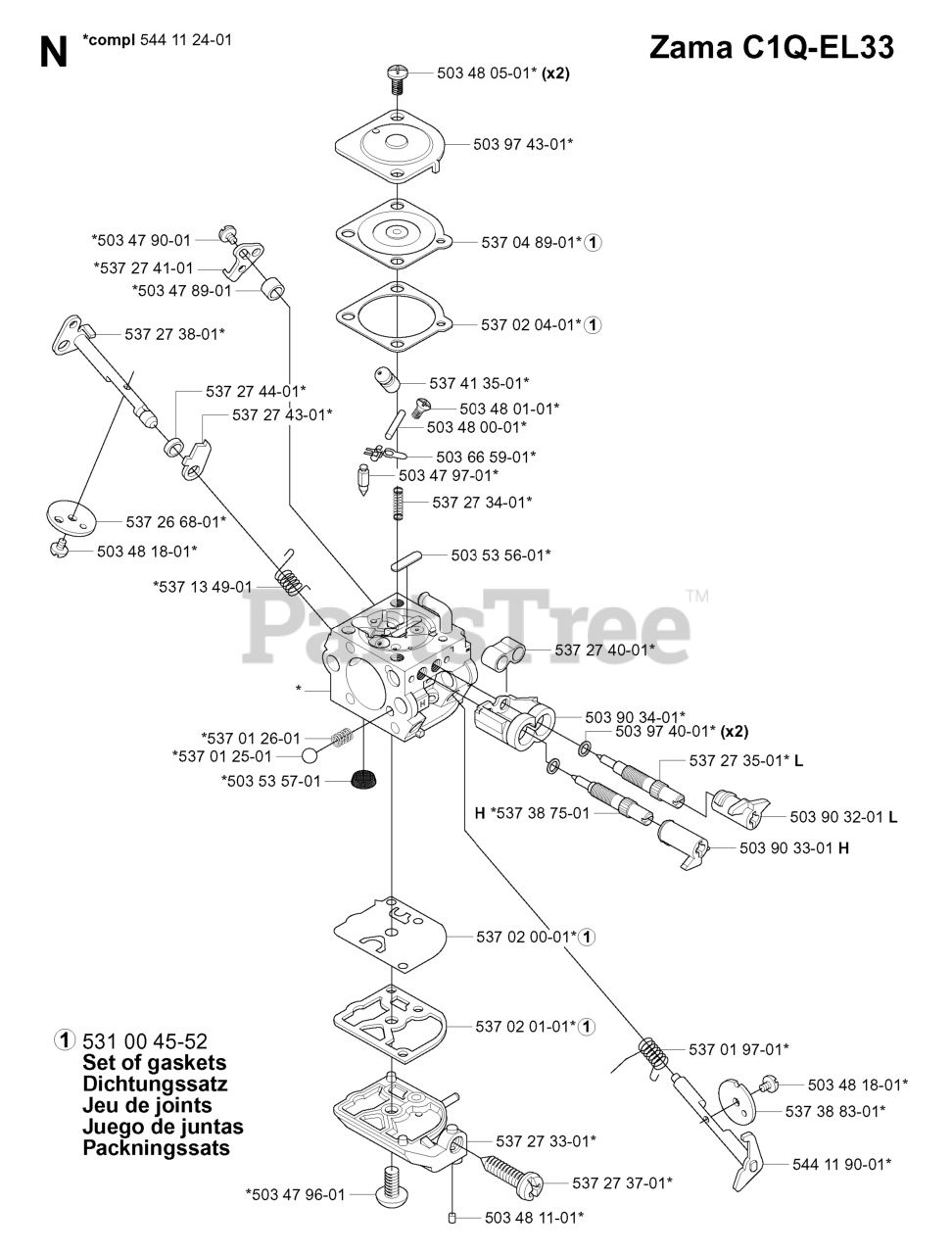

CARBURETOR DETAILS Parts Diagram

  • Title

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

537 27 35-01

Husqvarna 537273501

LOW SPEED NEEDLE

Note: L

$25.70

$

Usually ships in 3-10 days

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 90 33-01

Husqvarna 503903301

LIMITER CAP

Note: H

$4.99

$

In Stock, only 1 left!

0

537 01 25-01

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

503 90 34-01

Husqvarna 503903401

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

503 53 57-01

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 3 left!

0

537 27 38-01

Husqvarna 537273801

SHAFT

$

$

Not available

537 02 04-01

Husqvarna 537020401

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 9

0

503 47 89-01

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

537 27 37-01

Husqvarna 537273701

SCREW

$13.84

$

Usually ships in 3-10 days

0

537 27 33-01

Husqvarna 537273301

COVER

$33.45

$

Usually ships in 3-10 days

0

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

537 27 44-01

Husqvarna 537274401

WASHER

$

$

Not available

537 02 00-01

Husqvarna 537020001

PUMP DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$9.49

$

In Stock, Qty 5

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

537 04 89-01

Husqvarna 537048901

DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$13.99

$

In Stock, Qty 18

0

537 27 41-01

Husqvarna 537274101

ARM

$5.58

$

Usually ships in 3-10 days

0

503 90 32-01

Husqvarna 503903201

LIMITER CAP

Note: L

$4.99

$

Usually ships in 3-10 days

0

537 01 26-01

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

537 02 01-01

Husqvarna 537020101

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 13

0

503 66 59-01

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 2 left!

0

503 53 56-01

Husqvarna 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

537 27 40-01

Husqvarna 537274001

SPRING

$3.49

$

Usually ships in 3-10 days

0

537 38 83-01

Husqvarna 537388301

THROTTLE FLAP

$6.91

$

Usually ships in 3-10 days

0

503 97 40-01

Husqvarna 503974001

WASHER

$3.49

$

Usually ships in 3-10 days

0

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

537 38 75-01

Husqvarna 537387501

SCREW

Note: H

$13.41

$

Usually ships in 3-10 days

0

503 97 43-01

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

537 13 49-01

Husqvarna 537134901

SPRING

$3.49

$

Usually ships in 3-10 days

0

544 11 24-01

Husqvarna 544112401

CARBURETOR
(Superseded to 544160901)

$102.99

$

In Stock, only 1 left!

0

537 26 68-01

Husqvarna 537266801

CHOKE FLAP

$5.99

$

Usually ships in 3-10 days

0

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

$10.99

$

In Stock, only 1 left!

0

544 11 90-01

Husqvarna 544119001

SHAFT

$19.61

$

Usually ships in 3-10 days

0

537 41 35-01

Husqvarna 537413501

NOZZLE

$14.99

$

Usually ships in 3-10 days

0

537 01 97-01

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

537 27 43-01

Husqvarna 537274301

ARM

$

$

Not available

537 27 34-01

Husqvarna 537273401

SPRING

$

$

Not available
