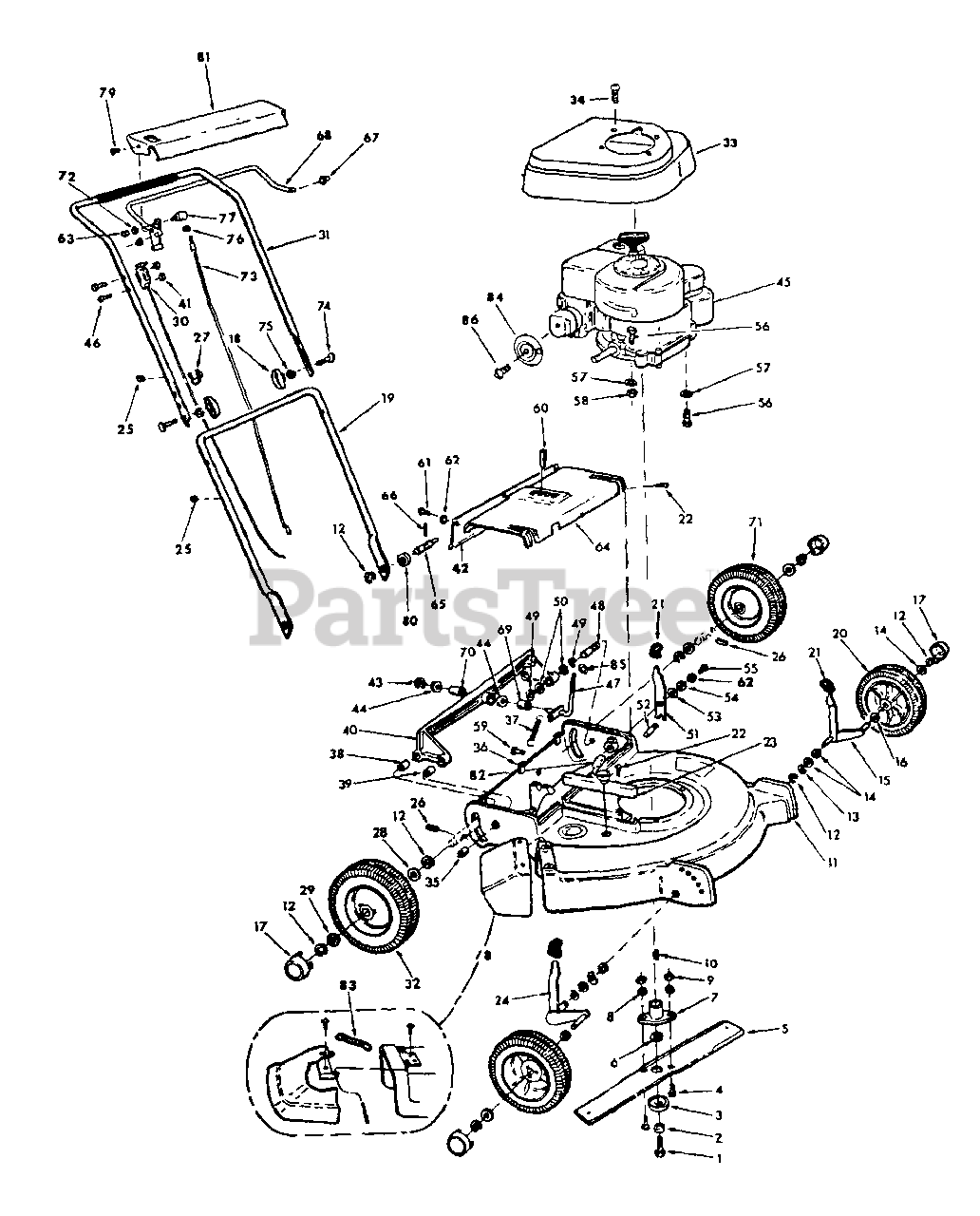

3332 - International Harvester 22" Self-Propelled Walk-Behind Mower (1975 - 1976) Frame, Blade And Wheels Parts Diagram

22" Self-Propelled Walk-Behind Mower

Frame, Blade And Wheels Parts Diagram

  • Title
1

Cub Cadet IH-202109-R1

SCREW, 3/8-24 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

2

Cub Cadet IH-120382

WASHER, 3/8 REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-63002-C1

WASHER, BLADE TO CRANKSHAFT

$

$

Currently unavailable

4

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

5

Cub Cadet IH-62375-C1

BLADE, 22 IN

$

$

Not available

6

Cub Cadet IH-63042-C1

SPACER, ANTI FLIP BRACKET

$

$

Not available

7

Cub Cadet IH-63003-C1

ADAPTER, BLADE

$

$

Not available

8

Cub Cadet IH-120382

WASHER, 1/4 REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet IH-120375

NUT, 1/4-20 HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet IH-63004-C1

KEY, WOODRUFF - ENGINE CRANK

$

$

Not available

11

Cub Cadet IH-62934-C1

HOUSING ASSY, BLADE

$

$

Currently unavailable

12

Cub Cadet IH-370290-R1

RING, RETAINING

$

$

Not available

13

Cub Cadet IH-63041-C1

WASHER, WAVE
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

14

Cub Cadet IH-63038-C1

WASHER, 1/2 X 1 X .030

$

$

Not available

15

Cub Cadet IH-62977-C1

AXLE, FRONT LH

$

$

Currently unavailable

16

Cub Cadet IH-63040-C1

WASHER, 1/2 F 1 X .125

$

$

Currently unavailable

17

$

$

Not available

18

Cub Cadet IH-62992-C1

KNOB, HANDLE
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet IH-62987-C1

HANDLE, LOWER

$

$

Currently unavailable

20

Cub Cadet IH-62970-C1

WHEEL AND TIRE ASSY. FRONT

$

$

Not available

21

Cub Cadet IH-62979-C1

KNOB, ADJUST LEVER

$

$

Currently unavailable

22

Cub Cadet IH-23994-R1

SCREW, 10-16 X 5/8 ZND HEX-HD MACH

$

$

Currently unavailable

23

Cub Cadet IH-62984-C1

GUARD, CHAIN

$

$

Not available

24

Cub Cadet IH-62978-C1

AXLE, FRONT RH

$

$

Not available

25

Cub Cadet IH-62997-C1

GUIDE, CABLE

$

$

Currently unavailable

26

Cub Cadet IH-62947-C1

PAWL, REAR AXLE

$

$

Not available

27

Cub Cadet IH-62995-C1

CLIP, CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

28

Cub Cadet IH-63036-C1

WASHER, REAR WHEEL INNER
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet IH-63039-C1

WASHER, REAR WHEEL OUTER
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet IH-62994-C1

CONTROL ASSY, THROTTLE
(Superseded to 746-0800A)

$61.99

$

Usually ships in 3-6 days

0

31

Cub Cadet IH-62993-C1

HANDLE, UPPER

$

$

Not available

32

Cub Cadet IH-62973-C1

WHEEL AND TIRE ASSY, RH

$

$

Currently unavailable

33

Cub Cadet IH-63011-C1

SHROUD, ENGINE

$

$

Currently unavailable

34

Cub Cadet IH-63046-C1

SCREW, 8-15 TRUSS-HD

$

$

Currently unavailable

$

$

Currently unavailable

36

Cub Cadet IH-453026-C1

NUT, U-SHAPED SPRING

$

$

Currently unavailable

37

Cub Cadet IH-62944-C1

SPRING, HEIGHT ADJUST

$

$

Not available

38

BEARING

$

$

Not available

$

$

Currently unavailable

40

Cub Cadet IH-62937-C91

BRACKET AND BEARING ASSY

Note: (INCLUDES REF NOS. 35, 39 AND 70)

$

$

Not available

41

Cub Cadet IH-21017-R1

NUT, 10-32 HEX. LOCK
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet IH-62966-C1

DEFLECTOR, REAR DECK

$

$

Not available

43

Cub Cadet IH-370290-R1

RING, RETAINING

$

$

Not available

44

Cub Cadet IH-62942-C1

WASHER
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

45

ENGINE, 3.5 HP

$

$

Not available

46

Cub Cadet IH-19517-R1

SCREW, 10-32 X 1-3/8 HEX-HD MACH

$

$

Currently unavailable

47

Cub Cadet IH-62943-C1

LEVER AND BRACKET ASSY

$

$

Currently unavailable

48

Cub Cadet IH-62945-C1

PIN, PIVOT LH

$

$

Currently unavailable

49

Cub Cadet IH-384052-R1

RING, RETAINING

$

$

Currently unavailable

$

$

Currently unavailable

51

Cub Cadet IH-62980-C1

HANDLE, UP-STOP

$

$

Currently unavailable

52

Cub Cadet IH-62981-C1

PIN, UP-STOP

$

$

Currently unavailable

53

Cub Cadet IH-120391

WASHER, RUBBER
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet IH-62983-C1

SPACER, UP-STOP LEVER

$

$

Not available

55

Cub Cadet IH-191680

SCREW, 10-32 X 1/2 PAN-HD

$

$

Currently unavailable

56

Cub Cadet IH-180083

SCREW, 5/16-18 X 1-1/2 ZND HEX-HD CAP
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

57

Cub Cadet IH-120214

WASHER, .344 X .625 X .054 ZND
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet IH-20238-R1

PIN, 1/4 X .500 ZND CLEVIS

$

$

Currently unavailable

60

Cub Cadet IH-489055-R1

KNOB, HEIGHT ADJUST

$

$

Currently unavailable

61

Cub Cadet IH-22994-R1

SCREW, 10-16 X 5/8 ZND HEX-HD TAP

$

$

Currently unavailable

62

Cub Cadet IH-178378

WASHER, NO. 10 EXT-INT LOCK

$

$

Currently unavailable

63

Cub Cadet IH-63031-C1

NUT, 10-24 HIGH CROWN

$

$

Currently unavailable

64

Cub Cadet IH-62965-C1

COVER AND PLATE ASSY

$

$

Currently unavailable

65

Cub Cadet IH-62988-C1

PIN, HANDLE PIVOT LH

$

$

Currently unavailable

66

Cub Cadet IH-17175-R1

PIN, 3/16 X 1 HV SLT SPRING
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

$

$

Currently unavailable

68

Cub Cadet IH-63000-C1

ROD ASSY, GRIP

$

$

Currently unavailable

$

$

Not available

$

$

Currently unavailable

71

Cub Cadet IH-62972-C1

WHEEL AND TIRE ASSY. LH

$

$

Currently unavailable

72

Cub Cadet IH-120391

WASHER, .219 X .500 X .036
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

73

Cub Cadet IH-62998-C1

CABLE, DRIVE CONTROL

$

$

Not available

74

Cub Cadet IH-62990-C1

SCREW, 5/16-18 X 1-3/4
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

75

Cub Cadet IH-120214

WASHER, 5/16 REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

76

Cub Cadet IH-23385-R1

NUT, 1/4-28 HEX

$

$

Currently unavailable

77

Cub Cadet IH-62999-C1

TRUNNION, CABLE

$

$

Currently unavailable

?78

Cub Cadet IH-62952-C1

DEFLECTOR ASSY, MISSILE

Note: (ORDER AS AN ASSEMBLY CONSISTING OF 1 DEFLECTOR, 1 ROLLPIN, 2 HINGE AND 2 RIVET)

$

$

Currently unavailable

79

Cub Cadet IH-539749-R1

SCREW, 10-32 X 1/2 HEX WASHER-HD TAP

$

$

Currently unavailable

80

Cub Cadet IH-120389

WASHER, 1/2 X 15/16 X .0625

$

$

Currently unavailable

81

Cub Cadet IH-63001-C1

PANEL, GRIP ROD

$

$

Currently unavailable

82

Cub Cadet IH-62985-C1

CAP, WASHOUT PORT

$

$

Not available

83

Cub Cadet IH-62953-C1

SPRING, DEFLECTOR

$

$

Currently unavailable

84

Cub Cadet IH-63010-C1

DEFLECTOR, MUFFLER

$

$

Currently unavailable

$

$

Not available

86

Cub Cadet IH-63045-C1

SCREW, 8-32 X 1-1/8 SEALS

$

$

Currently unavailable

Cub Cadet IH-62996-C1

CLIP, HANDLE STOP & CABLE GUIDE

$

$

Currently unavailable
