3332 - International Harvester 22" Self-Propelled Walk-Behind Mower (1975 - 1976) Electric Start Attachment (Factory Installed) Parts Diagram

22" Self-Propelled Walk-Behind Mower

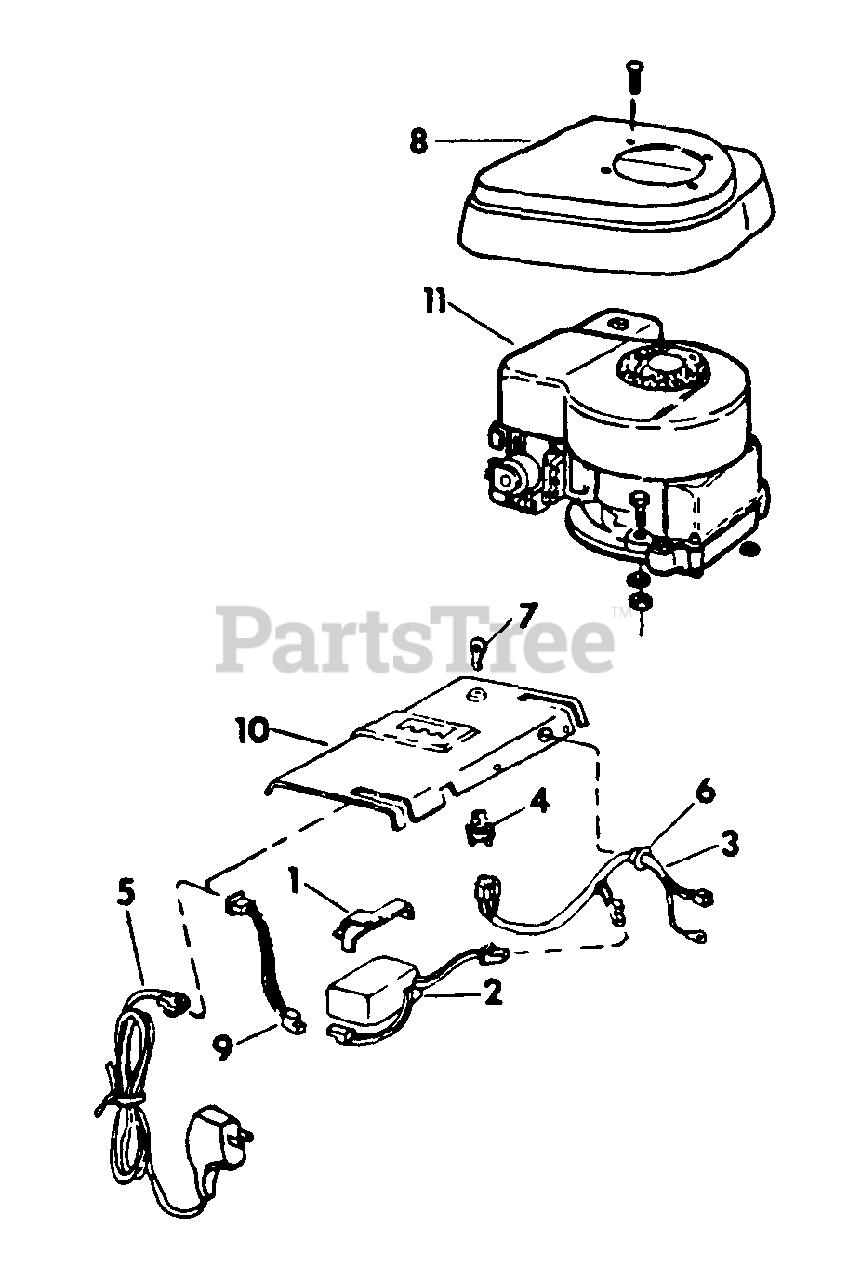

Electric Start Attachment (Factory Installed) Parts Diagram

  • Title
1

Cub Cadet IH-63012-C1

RETAINER, BATTERY

$

$

Currently unavailable

Cub Cadet IH-172427

SCREW, 1/4-20 X 1/2 ZND HEX-HD TAP.

$

$

Not available

2

Cub Cadet IH-63013-C1

BATTERY, 14.4 VOLTS (G.E.)

$

$

Currently unavailable

3

Cub Cadet IH-63014-C1

HARNESS, WIRE

$

$

Currently unavailable

4

Cub Cadet IH-63015-C1

SWITCH, ELECTRIC START

$

$

Currently unavailable

5

Cub Cadet IH-63016-C1

CHARGER, 12 VOLT

$

$

Currently unavailable

6

Cub Cadet IH-63017-C1

BUSHING, LOOM WIRE HARNESS

$

$

Currently unavailable

7

Cub Cadet IH-117352-C1

KEY, IGNITION

$

$

Currently unavailable

$

$

Currently unavailable

9

Cub Cadet IH-6315C-C1

WIRE, EXTENSION

$

$

Currently unavailable

10

Cub Cadet IH-63151-C1

COVER, REAR DECK

$

$

Currently unavailable

11

ENGINE ASSY, 3.5 HP

$

$

Not available

Cub Cadet IH-18C083

SCREW, 5/16-18 X 1-1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120214

WASHER, .344 X .625 X .054 ZND
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-63018-C1

SCREW, 3/8-16 X 1-1/4 HEX. SPECIAL

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, .406 X .812 X .051 ZND
(Superseded to 936-0140)

$

$

Not available
