3332 A99 - Electrolux/AYP Tiller (1999) ENGINE Parts Diagram

Tiller

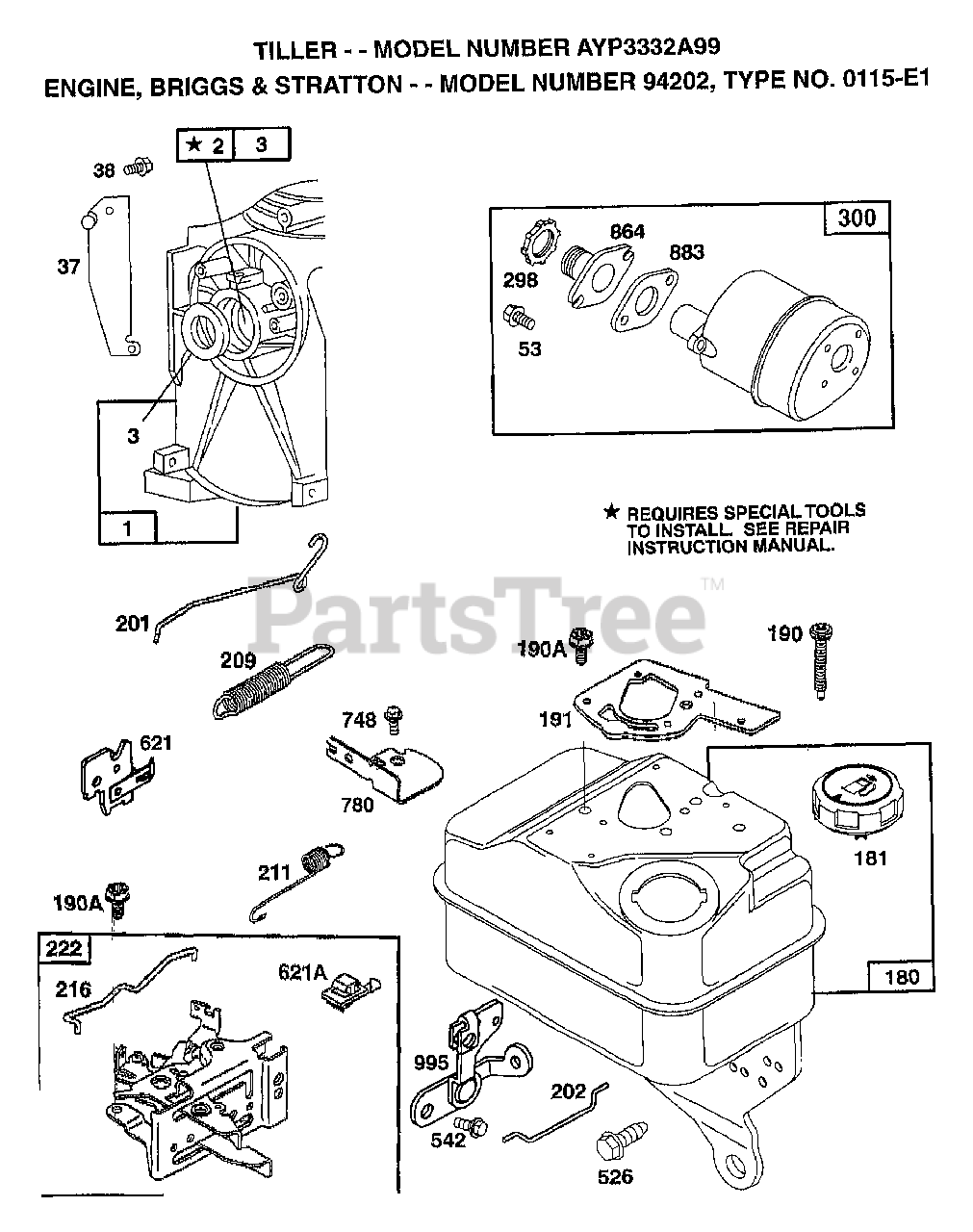

ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 494549

CYLINDER ASSEMBLY
(Superseded to 791358)

$308.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 214277

HEAD, CYLINDER
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272694

GASKET, CYLINDER HEAD
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495774

BREATHER ASSEMBLY
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

GASKET, VALVE COVER
(Superseded to 27549S)

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

GROMMET, BREATHER TUBE
(Superseded to 692187)

$4.49

$

In Stock, Qty 18

0

12

Briggs & Stratton 270833

GASKET, CRANKCASE, STANDARD .015"
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

GASKET, CRANKCASE .005"

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270896

GASKET, CRANKCASE .009"

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 94960

SCREW
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94387

PLUG OIL DRAIN
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 495211

CRANKSHAFT
(Superseded to 690821)

$142.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 499047

KEY, TIMING GEAR RETAINING

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 394820

BUSHING, CRANKCASE COVER
(Superseded to 699406)

$185.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

21

Briggs & Stratton 281658

PLUG-OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94607

SCREW, SEM, MOUNTING
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

22A

Briggs & Stratton 94862

SCREW
(Superseded to 691202)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 496278

FLYWHEEL
(Superseded to 795695)

$78.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498668

PISTON ASSEMBLY, STANDARD
(Superseded to 795691)

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

PISTON ASSEMBLY, .010" OVERSIZE

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498670

PISTON ASSEMBLY, .020" OVERSIZE
(Superseded to 795689)

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498671

PISTON ASSEMBLY, .030" OVERSIZE

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498680

RING SET, STANDARD SIZE

$

$

Not available

26

Briggs & Stratton 498681

RING SET, .010" OVERSIZE

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498682

RING SET, .020" OVERSIZE

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498683

RING SET, .030" OVERSIZE

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294367

ROD ASSEMBLY, CONNECTING
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN

$18.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220670

DIPPER, CONNECTING ROD
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

VALVE, EXHAUST

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

VALVE, INTAKE

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224557

GUARD, FLYWHEEL
(Superseded to 690463)

$10.99

$

Usually ships in 2-12 days

0

38

Electrolux/AYP 94736

SCREW

$

$

Not available

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

TAPPET, VALVE
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493747

GEAR, CAM
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 273113

GASKET, CARBURETOR MOUNTING
(Superseded to 273113S)

$4.49

$

In Stock, Qty 17

0

53

Briggs & Stratton 94523

SCREW, EXHAUST
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 499441

HOUSING, REWIND STARTER
(Superseded to 692144)

$45.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 281464

ROPE, STARTER
(Superseded to 697316)

$5.99

$

In Stock, Qty 16

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

73

Briggs & Stratton 225381

SCREEN, ROTATING
(Superseded to 699850)

$35.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 499491

CARBURETOR ASSEMBLY

$

$

Not available

95

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223793

THROTTLE, CARBURETOR
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 495313

SHAFT & LEVER, THROTTLE
(Superseded to 692018)

$9.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 497230

VALVE & SHAFT GROUP, CHOKE

$15.99

$

In Stock, only 4 left!

0

121

Briggs & Stratton 495606

CARBURETOR OVERHAUL KIT

$26.99

$

In Stock, Qty 7

0

124

Briggs & Stratton 94616

SCREW, ELBOW MOUNTING
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 220352

PLUG, WELCH
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

PLUG, WELCH
(Superseded to 691742)

$4.99

$

In Stock, only 2 left!

0

144

Briggs & Stratton 499901

PULLEY, STARTER

$18.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260575

SPRING, THROTTLE ADJUSTMENT
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

153

Briggs & Stratton 490501

SCREW, CARBURETOR CAM AND LEVER

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93527

SCREW, MACHINE, ROUND HEAD
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 492797

BASE, AIR CLEANER
(Superseded to 494279)

$

$

Not available

163

Briggs & Stratton 271935

GASKET, AIR CLEANER MOUNTING
(Superseded to 271935S)

$6.49

$

In Stock, Qty 12

0

180

Briggs & Stratton 495377

TANK ASSEMBLY, FUEL

$

$

Not available

181

Briggs & Stratton 494559

CAP, FUEL TANK

$

$

Not available

190

Briggs & Stratton 94919

SCREW, TORX
(Superseded to 691687)

$4.99

$

In Stock, only 1 left!

0

190A

Briggs & Stratton 94924

SCREW, TORX
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272489

GASKET, FUEL TANK TO CARBURETOR
(Superseded to 692241)

$4.49

$

In Stock, Qty 20+

0

200

Briggs & Stratton 495213

BLADE, GOVERNOR
(Superseded to 498770)

$

$

Not available

201

Briggs & Stratton 263174

LINK, GOVERNOR
(Superseded to 691305)

$7.49

$

In Stock, only 1 left!

0

202

Briggs & Stratton 262470

LINK, CONTROL
(Superseded to 691274)

$

$

Not available

209

Briggs & Stratton 260041

SPRING, GOVERNOR
(Superseded to 692205)

$6.99

$

In Stock, only 1 left!

0

211

Briggs & Stratton 263030

SPRING
(Superseded to 691289)

$9.49

$

In Stock, only 3 left!

0

216

Briggs & Stratton 263188

LINK, CHOKE
(Superseded to 692904)

$9.49

$

In Stock, only 2 left!

0

222

Electrolux/AYP 499533

BRACKET, CONTROL

$

$

Not available

257

Briggs & Stratton 93543

SCREW, SEMS, HEX HEAD
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

298

Briggs & Stratton 220859

LOCKNUT, MUFFLER
(Superseded to 691720)

$5.49

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 493288

MUFFLER, EXHAUST

$36.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 499522

HOUSING, BLOWER
(Superseded to 692622)

$83.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 224555

SHIELD, CYLINDER
(Superseded to 690461)

$20.99

$

In Stock, Qty 10

0

307

Briggs & Stratton 93758

SCREW, SEMS
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 224556

COVER, CYLINDER HEAD
(Superseded to 690462)

$5.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 496914

ARMATURE, MAGNETO
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497298

WIRE, GROUND
(Superseded to 695283)

$20.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 495605

GASKET SET

$47.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 94908

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

392

Briggs & Stratton 262328

SPRING, FUEL PUMP DIAPHRAGM
(Superseded to 691823)

$4.99

$

In Stock, only 2 left!

0

393

Briggs & Stratton 225058

SCREEN-CARBURETOR
(Superseded to 691213)

$8.49

$

In Stock, only 4 left!

0

394

Briggs & Stratton 272538

DIAPHRAGM
(Superseded to 272538S)

$3.99

$

In Stock, Qty 20+

0

432

Briggs & Stratton 221377

CAP, SPRING
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

PIN, DIAPHRAGM COVER
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 213963

COVER, DIAPHRAGM
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

SCREW, DIAPHRAGM
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 225502

CUP, FLYWHEEL
(Superseded to 691236)

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

RETAINER, STARTER
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

PAWL, RATCHET
(Superseded to 281505S)

$3.49

$

In Stock, Qty 13

0

526

Briggs & Stratton 94914

SCREW, SEMS, TANK BRACKET MOUNT
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

527

Briggs & Stratton 223786

CLAMP BREATHER TUBE
(Superseded to 691741)

$4.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 491435

FILTER, AIR
(Superseded to 491435S)

$4.99

$

In Stock, Qty 8

0

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 12

0

535

Briggs & Stratton 491435

FILTER, AIR
(Superseded to 491435S)

$4.99

$

In Stock, Qty 8

0

536

Briggs & Stratton 494279

AIR CLEANER KIT

$

$

Not available

542

Briggs & Stratton 94897

SCREW
(Superseded to 691683)

$3.99

$

In Stock, only 4 left!

0

608

Briggs & Stratton 499706

STARTER, REWIND

$65.99

$

In Stock, only 2 left!

0

609

Electrolux/AYP 265715

SPRING, CHOKE

$

$

Not available

611

Briggs & Stratton 231067

LINE, FUEL
(Superseded to 690507)

$7.49

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 391813

FUEL PIPE AND CLIP ASSEMBLY

$

$

Not available

621

Briggs & Stratton 296110

SWITCH, STOP
(Superseded to 691941)

$152.99

$

Usually ships in 2-12 days

0

621A

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

623

Briggs & Stratton 94943

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691696)

$11.99

$

In Stock, Qty 5

0

634

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 8

0

643

Briggs & Stratton 280737

SPACER, AIR CLEANER

$

$

Not available

679

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

680

Briggs & Stratton 221839

WASHER, BRASS
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

689

Briggs & Stratton 260575

SPRING, THROTTLE ADJUSTMENT
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

741

Briggs & Stratton 261533

GEAR, TIMING
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

748

Electrolux/AYP 99669

GASKET SET, VALVE OVERHAUL

$

$

Not available

780

Briggs & Stratton 225029

ANCHOR, SPRING
(Superseded to 691211)

$6.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

864

Briggs & Stratton 492232

ADAPTER ASSEMBLY, MUFFLER
(Superseded to 690776)

$25.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

GUIDE, EXHAUST VALVE

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272203

GASKET, MUFFLER
(Superseded to 691314)

$6.49

$

In Stock, only 1 left!

0

955

Briggs & Stratton 281227

PLUG

$4.49

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 495872

COVER, AIR CLEANER
(Superseded to 791082)

$20.99

$

In Stock, Qty 13

0

969

Briggs & Stratton 490073

SCREW, COVER MOUNTING
(Superseded to 694515)

$5.99

$

In Stock, Qty 8

0

971

Briggs & Stratton 94902

SCREW, HEX HEAD
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

987

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

995

Briggs & Stratton 497195

CONTROL, THROTTLE
(Superseded to 691414)

$9.49

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499329

LABEL KIT, EMISSION

$8.49

$

Usually ships in 2-12 days

0

1095

Electrolux/AYP 99669

GASKET SET, VALVE OVERHAUL

$

$

Not available

2500

Electrolux/AYP 94202-0115

ENGINE

$

$

Not available

Briggs & Stratton 495914

SHORTBLOCK

$205.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 494550

GASKET SET
(Superseded to 495605)

$47.99

$

Usually ships in 2-12 days

0

Electrolux/AYP 292638

VALVE OVERHAUL GASKET SET

$

$

Not available
