3321 - International Harvester 19" Push Walk-Behind Mower (1973 - 1974) Magneto And Starter Parts Diagram

19" Push Walk-Behind Mower

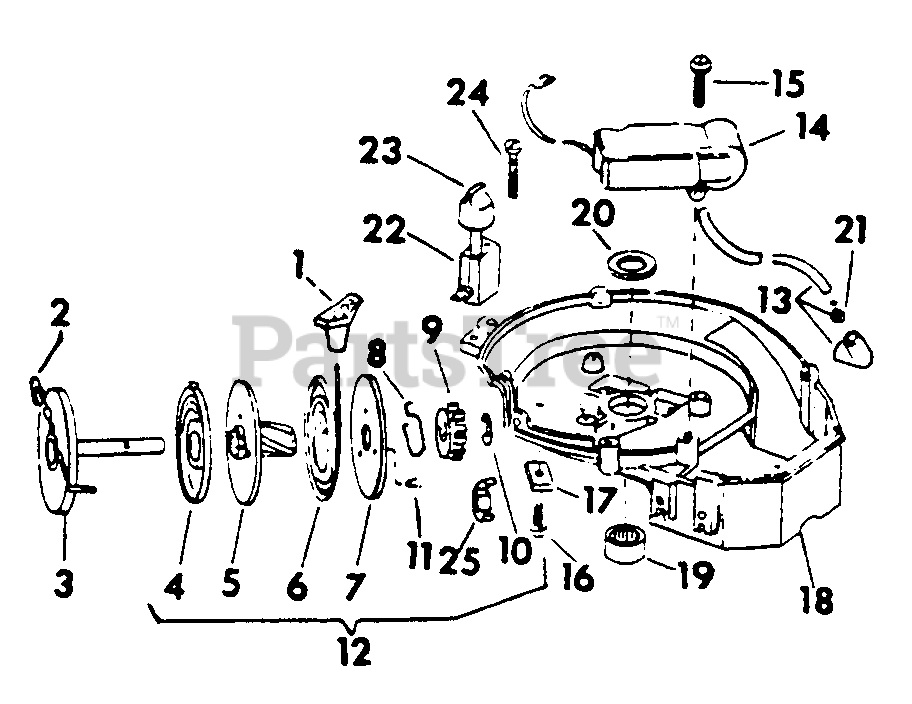

Magneto And Starter Parts Diagram

  • Title

1

Cub Cadet IH-544981-R1

HANDLE, STARTER

$

$

Currently unavailable

2

Cub Cadet IH-544982-R1

SPRING, STARTER ROPE RETAINER

$

$

Not available

3

Cub Cadet IH-55505-C1

CUP AND PIN

$

$

Not available

4

Cub Cadet IH-544985-R1

SPRING, STARTER

$

$

Not available

5

Cub Cadet IH-544986-R1

PULLEY, STARTER

$

$

Not available

6

Cub Cadet IH-55506-C1

ROPE, STARTER

$

$

Not available

7

Cub Cadet IH-545062-R1

PLATE, STARTER PULLEY

$

$

Currently unavailable

8

Cub Cadet IH-545063-R1

SPRING, STARTER PINION

$

$

Not available

9

Cub Cadet IH-55507-C1

PINION, STARTER

$

$

Not available

10

Cub Cadet IH-373523-R1

RING, RETAINER

$

$

Not available

11

Cub Cadet IH-545066-R1

SCREW, THD CUTTING STARTER

$

$

Currently unavailable

12

Cub Cadet IH-55504-C92

STARTER ASSY

Note: (CONSISTS OF REF NOS 3 THRU 11)

$

$

Currently unavailable

13

Cub Cadet IH-545067-R91

HIGH TENSION LEAD ASSY

$

$

Currently unavailable

14

Cub Cadet IH-55508-C92

IGNITION ASSY

Note: (INCLUDES REF NOS 13 AND 21)

$

$

Not available

15

Cub Cadet IH-545071-R1

SCREW, LAMINATION MTG

$

$

Currently unavailable

16

Cub Cadet IH-545151-R1

SCREW, STARTER ATT

$

$

Currently unavailable

17

Cub Cadet IH-545072-R1

CLAMP, STARTER PIN

$

$

Currently unavailable

18

Cub Cadet IH-55509-C91

ARM PLATE ASSY, BEARING AND OIL SEAL

Note: (INCLUDES REF NOS 19 AND 20)

$

$

Currently unavailable

19

Cub Cadet IH-545073-R91

BEARING NEEDLE

$

$

Not available

20

Cub Cadet IH-544667-R92

SEAL, OIL

$

$

Currently unavailable

21

Cub Cadet IH-55610-C1

TERMINAL, SPARK PLUG

$

$

Currently unavailable

22

Cub Cadet IH-55511-C91

SWITCH ASSY, STARTING

Note: (INCLUDES REF NOS 23 AND 24)

$

$

Currently unavailable

Cub Cadet IH-105564

WASHER, 7/32 X 1/2 X 18 GA

$

$

Currently unavailable

23

Cub Cadet IH-55512-C1

KNOB

$

$

Currently unavailable

24

Cub Cadet IH-55611-C1

SCREW

$

$

Currently unavailable

25

Cub Cadet IH-5551C-C1

CLIP, ROPE

$

$

Currently unavailable

$

$

Not available
