332 - International Harvester 21" Push Walk-Behind Mower (1971) Engine, Governor And Air Cleaner Parts Diagram

21" Push Walk-Behind Mower

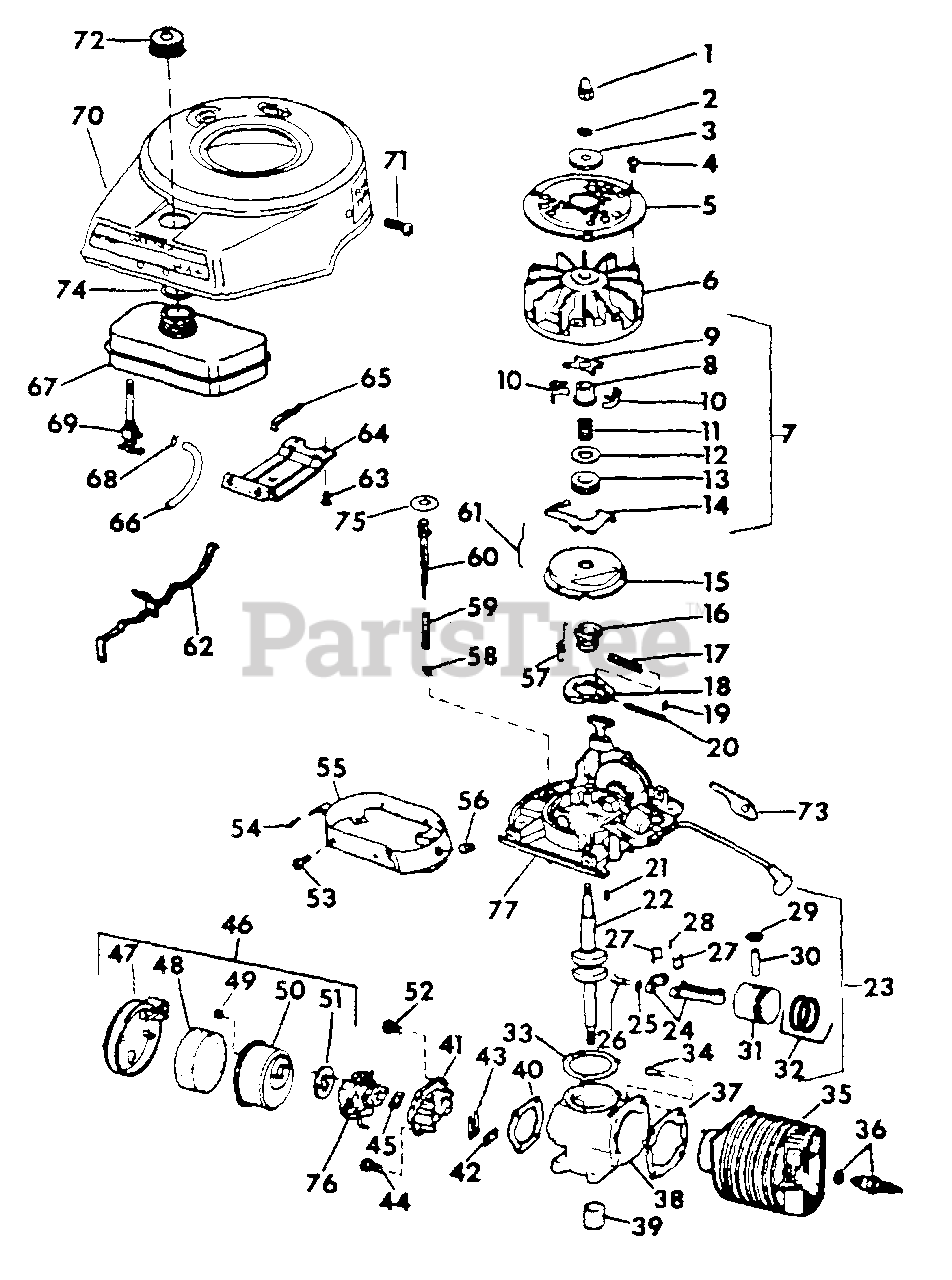

Engine, Governor And Air Cleaner Parts Diagram

  • Title

1

Cub Cadet IH-131660

NUT, 7/16-20 HIGH CROWN

$

$

Currently unavailable

2

Cub Cadet IH-131718

WASHER, 7/16 ZND INT TOOTH LOCK

$

$

Currently unavailable

3

Cub Cadet IH-544632-R1

PLATE, TRIM

$

$

Currently unavailable

4

Cub Cadet IH-544365-R1

SCREW, THD CUTTING

$

$

Currently unavailable

5

Cub Cadet IH-544634-R1

SCREEN, FLYWHEEL

$

$

Currently unavailable

6

Cub Cadet IH-544635-R1

FLYWHEEL

$

$

Currently unavailable

7

Cub Cadet IH-544636-R91

GOVERNOR ASSY

Note: (CONSISTS OF REF. NOS. 8 THRU 14)

$

$

Currently unavailable

8

Cub Cadet IH-544637-R1

COLLAR, GOVERNOR

$

$

Currently unavailable

9

Cub Cadet IH-544638-R1

YOKE, GOVERNOR

$

$

Currently unavailable

10

Cub Cadet IH-544639-R1

WEIGHT, GOVERNOR

$

$

Currently unavailable

11

Cub Cadet IH-544642-R1

SPRING, GOVERNOR

$

$

Currently unavailable

12

Cub Cadet IH-544643-R1

WASHER, THRUST

$

$

Currently unavailable

13

Cub Cadet IH-544640-R1

COLLAR, THRUST

$

$

Currently unavailable

14

Cub Cadet IH-544641-R1

LEVER, GOVERNOR

$

$

Currently unavailable

Cub Cadet IH-453800

SCREW, 10-24 X 3/8 C-Z FIL-HD SLT MACH

$

$

Currently unavailable

15

Cub Cadet IH-545148-R1

COVER, DUST

$

$

Currently unavailable

16

Cub Cadet IH-544648-R1

CAM, SPARK ADVANCE

$

$

Currently unavailable

17

Cub Cadet IH-544649-R1

SPRING, SPARK ADVANCE

$

$

Currently unavailable

18

Cub Cadet IH-544651-R1

FLYWHEEL, SPARK ADVANCE

$

$

Currently unavailable

19

Cub Cadet IH-544652-R1

RETAINER, SPRING

$

$

Currently unavailable

20

Cub Cadet IH-544653-R1

PIN SPARK ADVANCE

$

$

Currently unavailable

Cub Cadet IH-271468

SCREW, 1/4-20 X 3/4 C-2 FIL-HD SLT MACH

$

$

Currently unavailable

21

Cub Cadet IH-544655-R1

KEY, CRANKSHAFT

$

$

Currently unavailable

22

Cub Cadet IH-544656-R1

CRANKSHAFT

$

$

Currently unavailable

23

Cub Cadet IH-545117-R91

PISTON & CONNECTING ROD ASSY

Note: (CONSISTS OF REF. NOS. 24 THRU 32)

$

$

Currently unavailable

24

Cub Cadet IH-545118-R91

ROD ASSY, CONNECTING

$

$

Currently unavailable

25

Cub Cadet IH-545119-R1

LOCKPLATE, SCREW

$

$

Currently unavailable

26

Cub Cadet IH-545135-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

27

Cub Cadet IH-545126-R1

LINER, CONNECTING ROD

$

$

Currently unavailable

28

Cub Cadet IH-545122-R91

BEARING SET, NEEDLE - PACKED

$

$

Not available

29

Cub Cadet IH-264038-R1

RING, RETAINING

$

$

Currently unavailable

30

Cub Cadet IH-545121-R1

PIN, WRIST

$

$

Currently unavailable

31

Cub Cadet IH-545091-R1

PISTON

$

$

Currently unavailable

32

Cub Cadet IH-545129-R91

RING SET, PISTON (2 RINGS)

$

$

Not available

33

Cub Cadet IH-544662-R1

GASKET, CRANKCASE TO ARM PLATE .010

$

$

Not available

34

Cub Cadet IH-544663-R1

SCREW, CYL TO CRANKCASE

$

$

Currently unavailable

35

Cub Cadet IH-544664-R1

CYLINDER & SLEEVE

$

$

Currently unavailable

36

Cub Cadet IH-544665-R1

SPARK PLUG & GASKET

Note: CHAMPION CJ14

$

$

Not available

37

Cub Cadet IH-544666-R1

GASKET, CYL TO CRANKCASE

$

$

Not available

38

Cub Cadet IH-545094-R91

CRANKCASE & SEAL ASSY

$

$

Currently unavailable

39

Cub Cadet IH-544667-R92

SEAL, OIL

$

$

Currently unavailable

40

Cub Cadet IH-544668-R1

GASKET, REED PLATE

$

$

Currently unavailable

41

Cub Cadet IH-545149-R91

REED PLATE ASSY

$

$

Currently unavailable

Cub Cadet IH-451785

SCREW, 6-32 X 1/4 C-Z SLT-BD-HD MACH

$

$

Currently unavailable

42

Cub Cadet IH-544670-R1

PLATE, BACKUP

$

$

Currently unavailable

43

Cub Cadet IH-544671-R1

REED

$

$

Currently unavailable

44

Cub Cadet IH-545151-R1

SCREW, HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

45

Cub Cadet IH-544673-R1

GASKET, CARBURETOR

$

$

Currently unavailable

46

Cub Cadet IH-545145-R91

FILTER ASSY AIR

Note: (CONSISTS OF REF. NOS. 47 THRU 51)

$

$

Currently unavailable

47

Cub Cadet IH-545100-R1

CAP - PAINTED WHITE

$

$

Not available

48

Cub Cadet IH-544674-R1

ELEMENT, AIR CHAMBER

$

$

Currently unavailable

Cub Cadet IH-25634-R1

SCREW, 8-32 X 9/16 C-Z PAN-HD SLT MACH

$

$

Currently unavailable

49

Cub Cadet IH-544675-R1

WASHER

$

$

Currently unavailable

50

Cub Cadet IH-544628-R1

CHAMBER, AIR - PAINTED WHITE

$

$

Currently unavailable

51

Cub Cadet IH-544676-R1

GASKET

$

$

Currently unavailable

52

Cub Cadet IH-544677-R1

SCREW, HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

53

Cub Cadet IH-544383-R1

SCREW, BAFFLE

$

$

Currently unavailable

54

Cub Cadet IH-544678-R1

NUT, COVER MTG

$

$

Currently unavailable

55

Cub Cadet IH-544629-R1

AIR BAFFLE

$

$

Currently unavailable

56

Cub Cadet IH-544680-R1

GROMMET, COVER MTG

$

$

Currently unavailable

57

Cub Cadet IH-544681-R1

SPRING, VARIABLE SPEED

$

$

Currently unavailable

58

Cub Cadet IH-544682-R1

BLADE, SWITCH

$

$

Not available

59

Cub Cadet IH-544683-R1

SPRING, SHUTOFF SWITCH

$

$

Not available

60

Cub Cadet IH-544684-R1

BAR, SHUT-OFF & PRIMER

$

$

Not available

61

Cub Cadet IH-544646-R1

ROD, GOVERNOR

$

$

Currently unavailable

62

Cub Cadet IH-544685-R1

CONTROL & GUIDE, VARIABLE SPEED

$

$

Currently unavailable

63

Cub Cadet IH-545151-R1

SCREW

$

$

Currently unavailable

64

Cub Cadet IH-544686-R1

BRACKET, FUEL TANK

$

$

Currently unavailable

65

Cub Cadet IH-544688-R1

SPRING, FUEL TANK

$

$

Currently unavailable

66

Cub Cadet IH-544689-R1

GAS LINE

$

$

Currently unavailable

67

Cub Cadet IH-544690-R91

FUEL TANK ASSY

$

$

Currently unavailable

68

Cub Cadet IH-215761-R1

CLAMP, FUEL TANK HOSE
(Superseded to 726-0146)

$

$

Not available

69

Cub Cadet IH-544692-R1

VALVE & SCREEN, SHUT-OFF

$

$

Currently unavailable

Cub Cadet IH-141526

SCREW, 10-24 X 3/8 C-Z CR-REC-TR-HD MACH - SHROUD MTG

$

$

Currently unavailable

70

Cub Cadet IH-544693-R1

COVER, ENGINE

$

$

Currently unavailable

71

Cub Cadet IH-544695-R1

SCREW, COVER MTG

$

$

Currently unavailable

72

Cub Cadet IH-544931-R1

CAP, GAS TANK

$

$

Currently unavailable

73

Cub Cadet IH-544932-R1

CLIP

$

$

Currently unavailable

74

Cub Cadet IH-544933-R1

GASKET, TANK TO SHROUD

$

$

Currently unavailable

75

Note: NOT USED ON THIS APPLICATION

$

$

Not available

76

CARBURETOR ASSY

Note: (SEE "CARBURETOR" ILLUSTRATION AND PARTS LIST)

$

$

Not available

77

MAGNETO ASSY

Note: (SEE "MAGNETO AND STARTER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

Cub Cadet IH-545669-R91

ENGINE, IH 408

Note: CONSISTS OF THE FOLLOWING 5 ITEMS

$

$

Currently unavailable

ENGINE, BASIC

$

$

Not available

CARBURETOR

$

$

Not available

FLYWHEEL

$

$

Not available

ARMATURE PLATE

$

$

Not available

FUEL TANK AND COVER

$

$

Not available

Cub Cadet IH-544654-R91

BLOCK, SHORT

Note: CONSISTS OF THE FOLLOWING 5 ITEMS

$

$

Currently unavailable

BLOCK ASSY

$

$

Not available

CARBURETOR GASKET

$

$

Not available

CRANKCASE TO ARM PLATE GASKET

$

$

Not available

REED PLATE TO CRANKCASE GASKET

$

$

Not available

EXHAUST GASKET

$

$

Not available
