331877-2371-G5 - Briggs & Stratton Vertical Engine CARBURETOR - NIKKI & RUIXING, FUEL SUPPLY, GASKET SET - CARBURETOR - NIKKI & RUIXING Parts Diagram

Vertical Engine

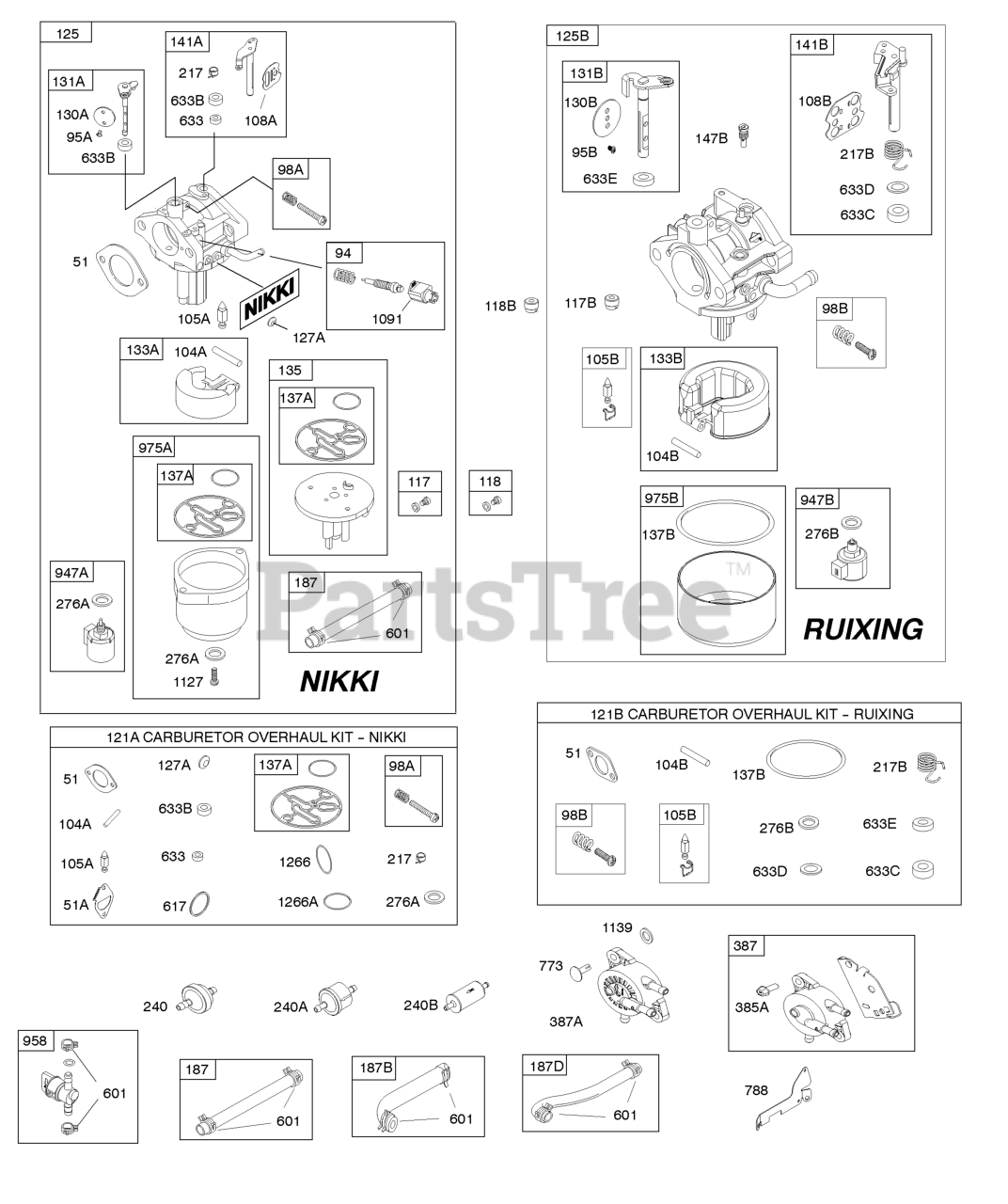

CARBURETOR - NIKKI & RUIXING, FUEL SUPPLY, GASKET SET - CARBURETOR - NIKKI & RUIXING Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

94

Briggs & Stratton 793610

KIT, Idle Mixture

$20.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve) (Nikki) Used Before Code Date 15122300

$5.99

$

Usually ships in 2-12 days

0

95B

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve) (Ruixing) Used After Code Date 15122200

$6.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

Note: (Nikki) Used Before Code Date 15122300

$13.99

$

In Stock, only 1 left!

0

98B

Briggs & Stratton 846817

Kit-Idle Speed

Note: (Ruixing) Used After Code Date 15122200

$13.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

Note: (Nikki) Used Before Code Date 15122300

$7.49

$

In Stock, only 2 left!

0

104B

Briggs & Stratton 594860

PIN, Float Hinge

Note: (Ruixing) Used After Code Date 15122200

$3.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

Note: (Nikki) Used Before Code Date 15122300

$15.99

$

In Stock, Qty 20+

0

105B

Briggs & Stratton 594868

VALVE, Float Needle

Note: (Ruixing) Used After Code Date 15122200

$20.99

$

In Stock, Qty 7

0

108A

Briggs & Stratton 695419

Valve-Throttle

Note: (Nikki) Used Before Code Date 15122300

$9.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 594863

VALVE, Choke

Note: (Ruixing) Used After Code Date 15122200

$4.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 796251

Jet-Main

Note: (Standard) (Nikki) Used Before Code Date 15113000

$15.99

$

In Stock, only 1 left!

0

117B

Briggs & Stratton 594869

Jet-Main

Note: (Standard) (Ruixing) Used After Code Date 15112900

$17.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 791406

JET, Main

Note: (High Altitude) (Nikki) Used Before Code Date 15113000

$18.99

$

In Stock, only 1 left!

0

118B

Briggs & Stratton 595068

Jet-Main

Note: (High Altitude) (Ruixing) Used After Code Date 15112900

$16.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 796184

KIT, Carburetor Overhaul

Note: (Nikki Carburetor) Used Before Code Date 15122300

$63.99

$

In Stock, Qty 20+

0

121B

Briggs & Stratton 594886

KIT, Carburetor Overhaul

Note: (Ruixing) Used After Code Date 15122200

$40.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 591736

Carburetor
(Superseded to 594601)

Note: (Nikki) Used Before Code Date 15122300

$143.99

$

In Stock, Qty 20+

0

125B

Briggs & Stratton 594601

Carburetor

Note: (Ruixing) Used After Code Date 15122200

$143.99

$

In Stock, Qty 20+

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130A

Briggs & Stratton 792747

Valve-Throttle

Note: (Nikki) Used Before Code Date 15122300

$9.49

$

Usually ships in 2-12 days

0

130B

Briggs & Stratton 594858

VALVE, Throttle

Note: (Ruixing) Used After Code Date 15122200

$5.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 792765

Kit-Throttle Shaft

Note: (Nikki) Used Before Code Date 15122300

$39.99

$

Usually ships in 2-12 days

0

131B

Briggs & Stratton 594856

KIT, Throttle Shaft

Note: (Ruixing) Used After Code Date 15122200

$41.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

Note: (Nikki) Used Before Code Date 15122300

$28.99

$

In Stock, Qty 8

0

133B

Briggs & Stratton 594859

FLOAT, Carburetor

Note: (Ruixing) Used After Code Date 15122200

$33.99

$

Usually ships in 2-12 days

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: (Gravity Feed)

$95.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: (Pump Feed)(Does Not Include Jet)

$49.99

$

In Stock, only 1 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

Note: (Nikki) Used Before Code Date 15122300

$9.99

$

In Stock, Qty 20+

0

137B

Briggs & Stratton 594861

GASKET, Float Bowl

Note: (Ruixing) Used After Code Date 15122200

$4.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 792777

Kit-Choke Shaft

Note: (Nikki) Used Before Code Date 15122300

$32.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 594862

KIT, Choke Shaft

Note: (Ruixing) Used After Code Date 15122200

$10.99

$

Usually ships in 2-12 days

0

147B

Briggs & Stratton 594874

Jet-Pilot

Note: (Ruixing) Used After Code Date 15122200

$

$

Not available

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

Note: (Nikki) Used Before Code Date 15122300

$8.99

$

In Stock, only 1 left!

0

217B

Briggs & Stratton 594864

SPRING, Choke Return

Note: (Ruixing) Used After Code Date 15122200

$8.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Includes Paper Element With A 40 Micron Rating)

$7.99

$

In Stock, Qty 20+

0

240B

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

Note: (Includes Paper Element With A 30 Micron Rating)

$7.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

Note: (Nikki) Used Before Code Date 15122300

$6.99

$

In Stock, Qty 15

0

276B

Briggs & Stratton 846640

WASHER, Sealing

Note: (Ruixing) Used After Code Date 15122200

$4.49

$

In Stock, Qty 8

0

387

Briggs & Stratton 697090

Pump-Fuel

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

Note: (Nikki) Used Before Code Date 15122300

$6.99

$

Usually ships in 2-12 days

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

Note: (Nikki) Used Before Code Date 15122300

$7.99

$

Usually ships in 2-12 days

0

633C

Briggs & Stratton 594866

SEAL, Choke/Throttle Shaft

Note: (Ruixing) Used After Code Date 15122200

$4.99

$

Usually ships in 2-12 days

0

633D

Briggs & Stratton 594865

SEAL, Choke/Throttle Shaft

Note: (Ruixing) Used After Code Date 15122200

$6.99

$

In Stock, only 1 left!

0

633E

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

Note: (Ruixing) Used After Code Date 15122200

$4.49

$

In Stock, only 1 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, Qty 5

0

788

Briggs & Stratton 699347

Bracket-Fuel Pump

$24.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

Note: (Nikki) Used Before Code Date 15122300

$79.99

$

In Stock, Qty 20+

0

947B

Briggs & Stratton 846639

SOLENOID, Fuel

Note: (Ruixing) Used After Code Date 15122200

$81.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$8.49

$

In Stock, Qty 20+

0

975A

Briggs & Stratton 699502

BOWL, Float

Note: (Nikki) Used Before Code Date 15122300

$45.99

$

Usually ships in 2-12 days

0

975B

Briggs & Stratton 594867

BOWL, Float

Note: (Ruixing) Used After Code Date 15122200

$43.99

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 20+

0
