3317524BVE (7800787) - Snapper 33" Rear-Engine Riding Mower, 17.5hp 30" Mower Deck & Spindle Group Parts Diagram

33" Rear-Engine Riding Mower, 17.5hp

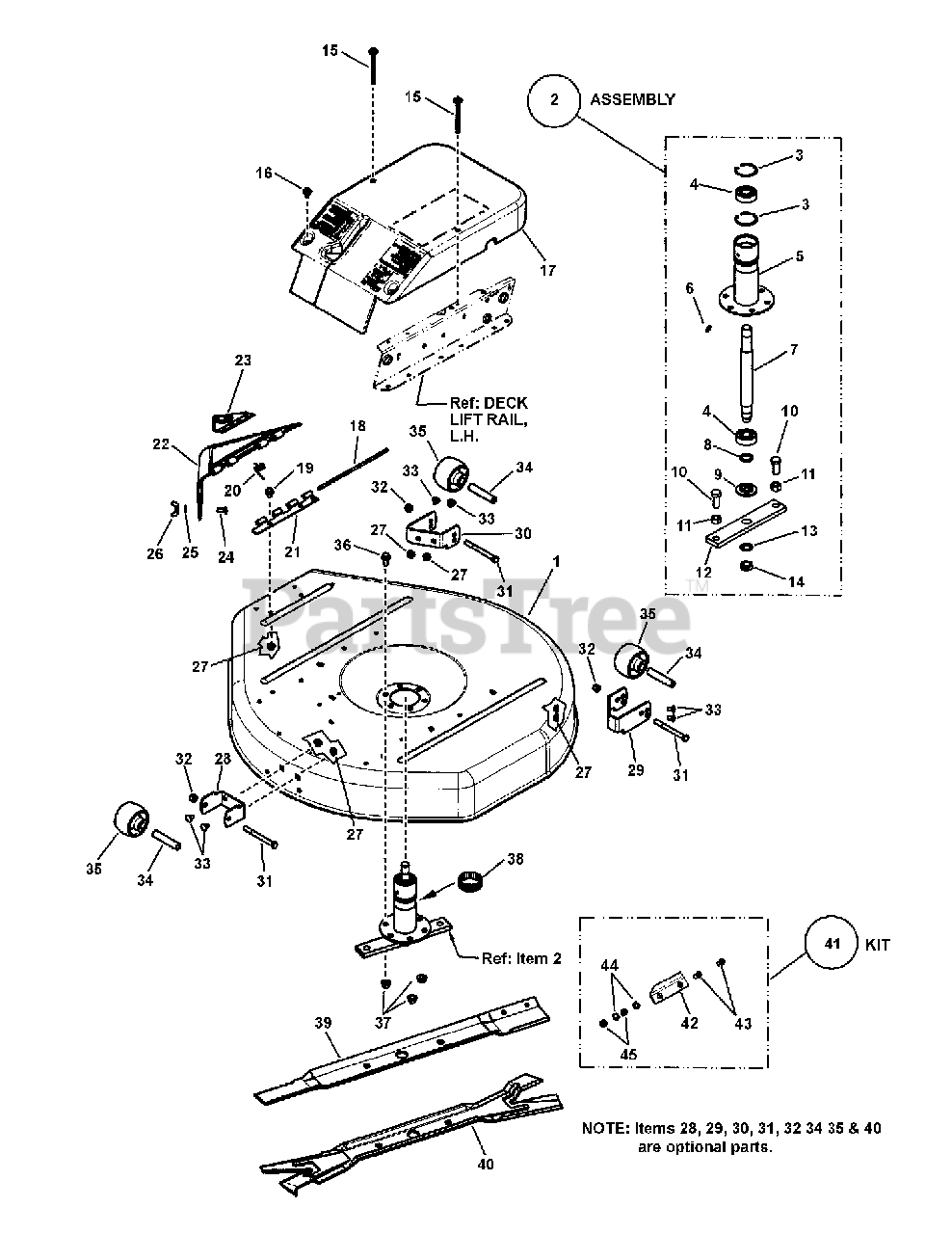

30" Mower Deck & Spindle Group Parts Diagram

  • Title

1

Snapper 7061971

DECK, 30" Replacement (Painted deck with decals)
(Superseded to 7061971YP)

$902.99

$

Usually ships in 2-12 days

0

2

Snapper 7600138

KIT, Spindle Assembly
(Superseded to 7600138YP)

$148.99

$

In Stock, Qty 18

0

3

Snapper 7012491

RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7050696

WELDMENT, Spindle Housing (includes 7010817, grease fitting)
(Superseded to 7040460BMYP)

$63.99

$

In Stock, Qty 9

0

6

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7044785

SPINDLE, Rider (10.327" overall length)
(Superseded to 7044785YP)

$40.99

$

In Stock, Qty 20+

0

8

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

10

Snapper 7090491

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7091939

NUT, 1/2-20 Hex, GR 5
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7031184

HOLDER, Blade
(Superseded to 7031184BMYP)

$70.99

$

In Stock, only 1 left!

0

13

Snapper 7044782

SPACER, Blade Centering
(Superseded to 7044782YP)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7091015

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer
(Superseded to 7091015YP)

$

$

Not available

16

Snapper 7091016

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 7091016YP)

$4.49

$

In Stock, Qty 5

0

17

Snapper 7073434

COVER, Spindle
(Superseded to 7073434YP)

$125.99

$

In Stock, only 2 left!

0

--

Snapper 7052553

ASSEMBLY, Discharge Chute (incl. items 18 & 20 thru 23)
(Superseded to 7052553YP)

$243.99

$

In Stock, only 1 left!

0

18

Snapper 7026846

PIN, Hinge 6mm x 8.875
(Superseded to 7026846YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7016428

SPRING, Torsion, Deflector
(Superseded to 7016428YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7024569

HINGE HALF
(Superseded to 7024569YP)

$32.99

$

In Stock, only 1 left!

0

22

Snapper 7025047

DEFLECTOR, 30"
(Superseded to 7025047YP)

$47.99

$

In Stock, only 3 left!

0

23

Snapper 7013010

DECAL, Danger (Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

24

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

25

Snapper 7091296

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7034024

* BRACKET, Front Anti-Scalp

$

$

Not available

29

Snapper 7034026

* BRACKET, Anti-Scalp, 30" L.H. Rear
(Superseded to 7034026YP)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7034025

* BRACKET, Anti-Scalp, 30" R.H. Rear
(Superseded to 7034025YP)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper 7090859

* SCREW, 3/8-24 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

32

Snapper 7090289

* NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

33

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

34

Snapper 7015272

* SPACER, 3"
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

35

Snapper 7019190

* WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

36

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

37

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

38

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

39

Snapper 7018069

BLADE, 30" LC
(Superseded to 7018069BZYP)

$32.99

$

In Stock, Qty 5

0

40

Snapper 7026565

** BLADE, Ninja, 30"
(Superseded to 7026565BZYP)

$93.99

$

In Stock, only 3 left!

0

41

Snapper 7060735

KIT, Air Lift (Includes items 42 thru 45)
(Superseded to 7060735YP)

Note: (Instruction Sheet #7015229)

$62.99

$

In Stock, only 1 left!

0

42

Snapper 7031724

AIR-LIFT, (30" Deck)
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

43

Snapper 7090228

SCREW, 5/16-24 x 11/16" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

44

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7091297

NUT, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0
