3315525BVE (2691526-00) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Deck Rails & Lift Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

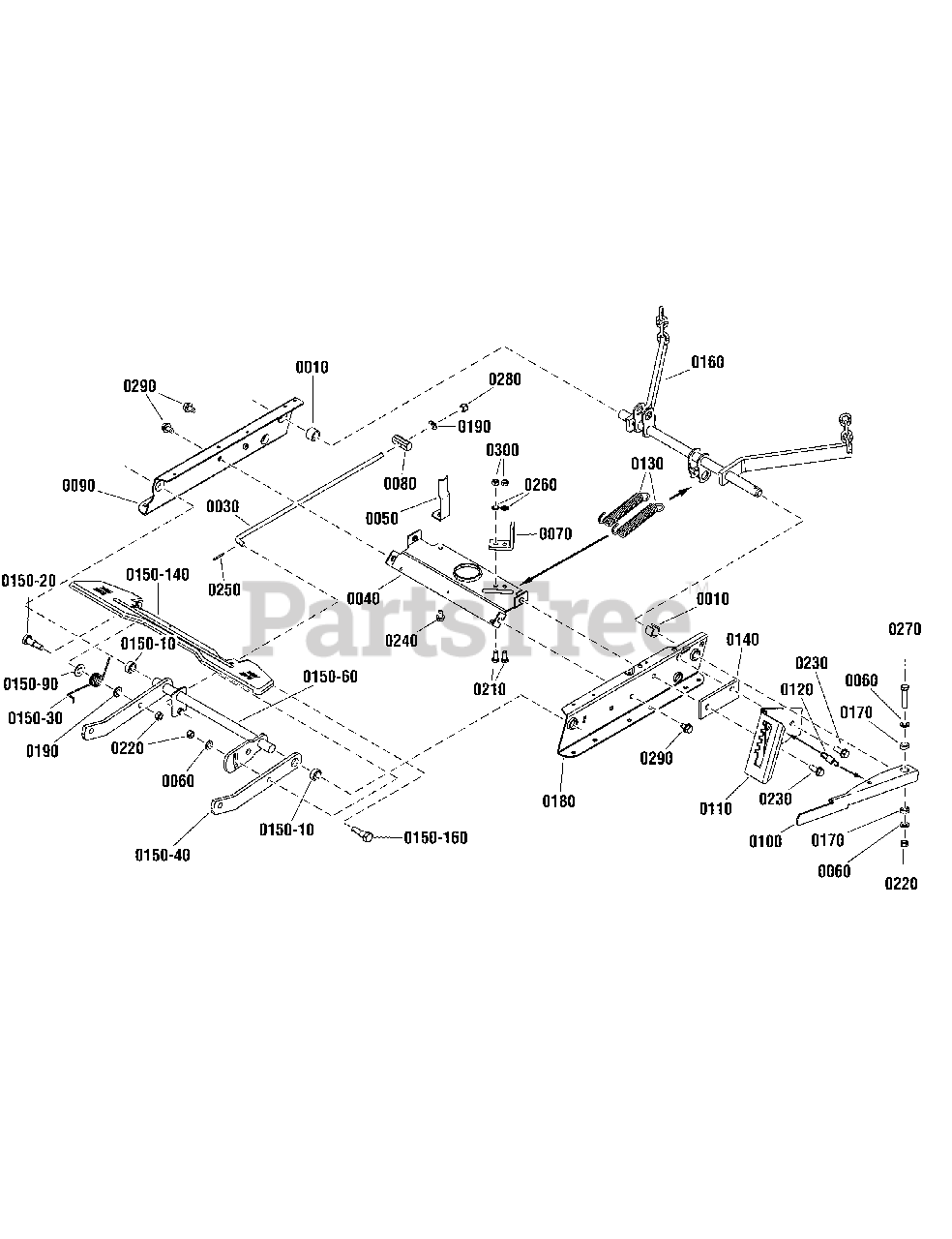

Deck Rails & Lift Group Parts Diagram

  • Title

0010

Snapper 7012068YP

RING, Blue (.665" wide)

$5.99

$

Usually ships in 2-12 days

0

0030

Snapper 7016122YP

ROD, Leveling (15.3" L, 3/4-24 thread)

$10.99

$

Usually ships in 2-12 days

0

0040

Snapper 7031838BMYP

BRACE, Top Rail

$37.99

$

Usually ships in 2-12 days

0

0050

Snapper 7031855YP

GUIDE, Belt

$7.49

$

In Stock, only 1 left!

0

0060

Snapper 7032030SM

WASHER, 13/32" ID x 1.25" x 1/8" Thick, Flat, ZP

$4.49

$

In Stock, only 1 left!

0

0070

Snapper 706321

ANCHOR

$6.99

$

Usually ships in 2-12 days

0

0080

Snapper 7034213YP

PIVOT, Leveling

$4.99

$

Usually ships in 2-12 days

0

0090

Snapper 7036430YP

RAIL, Deck Lift, RH

$54.99

$

In Stock, only 1 left!

0

0100

Snapper 7046155YP

LEVER, Height of Cut

$35.99

$

In Stock, only 1 left!

0

0110

Snapper 7046157YP

DETENT, Height Adjustment

$59.99

$

Usually ships in 2-12 days

0

0120

Snapper 7046159YP

SPRING, Lever (1.7" LG, .5" OD)

$6.99

$

Usually ships in 2-12 days

0

0130

Snapper 7046163YP

SPRING, Assist (5.5" LG, .85 OD)

$10.99

$

Usually ships in 2-12 days

0

0140

Snapper 7046217YP

SPACER, Detent

$11.99

$

Usually ships in 2-12 days

0

0150-10

Snapper 7012067YP

RING, Red (.36" wide)

$4.49

$

In Stock, only 2 left!

0

0150-20

Snapper 7015446YP

BOLT, 3/8-24 X 9/16, 1/2 Dia. Shoulder, ZP

$5.49

$

Usually ships in 2-12 days

0

0150-30

Snapper 7015448YP

SPRING, Pedal

$6.49

$

In Stock, only 1 left!

0

0150-40

Snapper 7032997YP

ARM, Front Lift

$16.99

$

In Stock, only 1 left!

0

0150-60

Snapper 7058041YP

WELDMENT, Front Lift Arm

$54.99

$

In Stock, only 1 left!

0

0150-90

Snapper 704123

WASHER, .531 ID X 1.063 OD X .094 Thk, Flat, ZC/CL

$4.49

$

In Stock, only 3 left!

0

0150-140

Snapper 7073267YP

FOOT PEDAL, Blade Stop Control

$45.99

$

Usually ships in 2-12 days

0

0150-160

Snapper 7015495YP

BOLT, 3/8-24 X .73, 1/2 DIA., Shoulder, ZP

$

$

Not available

0160

Snapper 7059324YP

WELDMENT, Rear Lift Arm

$164.99

$

Usually ships in 2-12 days

0

0170

Snapper 7071920YP

SPACER, Deck Lift Handle

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 7073269YP

RAIL, Deck Lift, LH

$27.99

$

Usually ships in 2-12 days

0

0190

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0210

Snapper 703336

SCREW, 5/16-24 x 3/4 Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 5

0

0220

Snapper 703458

NUT, 3/8-24 Hex Center Lock, GR B, YZ

$4.99

$

In Stock, Qty 14

0

0230

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0240

Snapper 730949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$

$

Currently unavailable

0250

Snapper 703958

PIN, 1/8 X 0.75, Cotter, Zinc/Clear

$4.49

$

In Stock, only 4 left!

0

0260

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 703866

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, GR 5

$4.49

$

In Stock, only 1 left!

0

0280

Snapper 703901

NUT, 3/8-24, Hex Nylock, Zinc/Clear

$3.49

$

In Stock, Qty 5

0

0290

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0
