331523KVE (7084879) - Snapper 33" Rear-Engine Riding Mower, 15hp ELECTRICAL SYSTEMS (For 15HP Kohler) Parts Diagram

33" Rear-Engine Riding Mower, 15hp

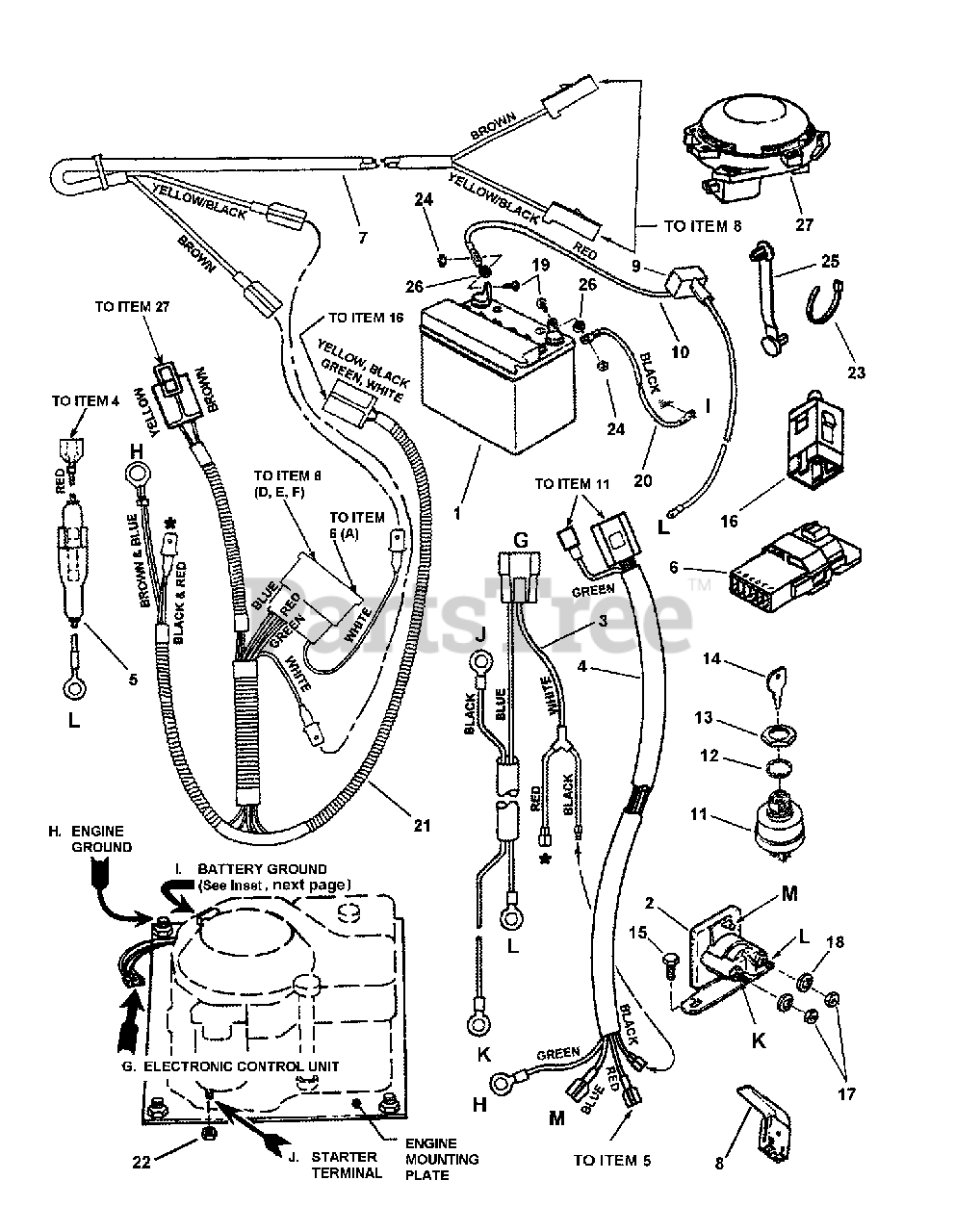

ELECTRICAL SYSTEMS (For 15HP Kohler) Parts Diagram

  • Title

1

Snapper 7060753

KIT, 12 Volt Dry Charge Battery
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 7075671

SOLENOID, Super-Trombetta
(Superseded to 7075671YP)

Note: (Was 7018817)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7019321

HARNESS, Starter Wiring (Kohler Engines)

$

$

Not available

4

Snapper 7074405

HARNESS, Ignition Wiring (15HP Kohler Engines)
(Superseded to 7074405YP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 7016168

HOLDER, Fuse (Includes Fuse)
(Superseded to 7016168YP)

$23.99

$

In Stock, only 3 left!

0

Snapper 7016169

FUSE, 10 Amp
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7028606

INTERLOCK MODULE, Briggs & Kohler
(Superseded to 7028606YP)

$53.99

$

In Stock, Qty 8

0

7

Snapper 7028386

HARNESS (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 3 left!

0

8

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

9

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

10

Snapper 7019326

WIRE, Positive (Red, 17" long)
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

11

Snapper 7073797

SWITCH, Ignition, 4 Terminal, Indak
(Superseded to 7073797YP)

$38.99

$

In Stock, only 3 left!

0

12

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7011138

IGNITION KEY, Pair
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: (Was 7090539)

$3.99

$

In Stock, Qty 7

0

16

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

17

Snapper 7091576

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

19

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

Note: (Was 7027172)

$4.49

$

In Stock, Qty 18

0

20

Snapper 7028027

WIRE, Negative, Black (15" long)
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 7

0

21

Snapper 7028678

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028678YP)

$47.99

$

Usually ships in 2-12 days

0

22

Snapper 7091576

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

25

Snapper 7014451

CABLE TIE, 3.19" long
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7029211

SWITCH, Seat (NC)
(Superseded to 1714771SM)

$20.99

$

In Stock, only 1 left!

0
