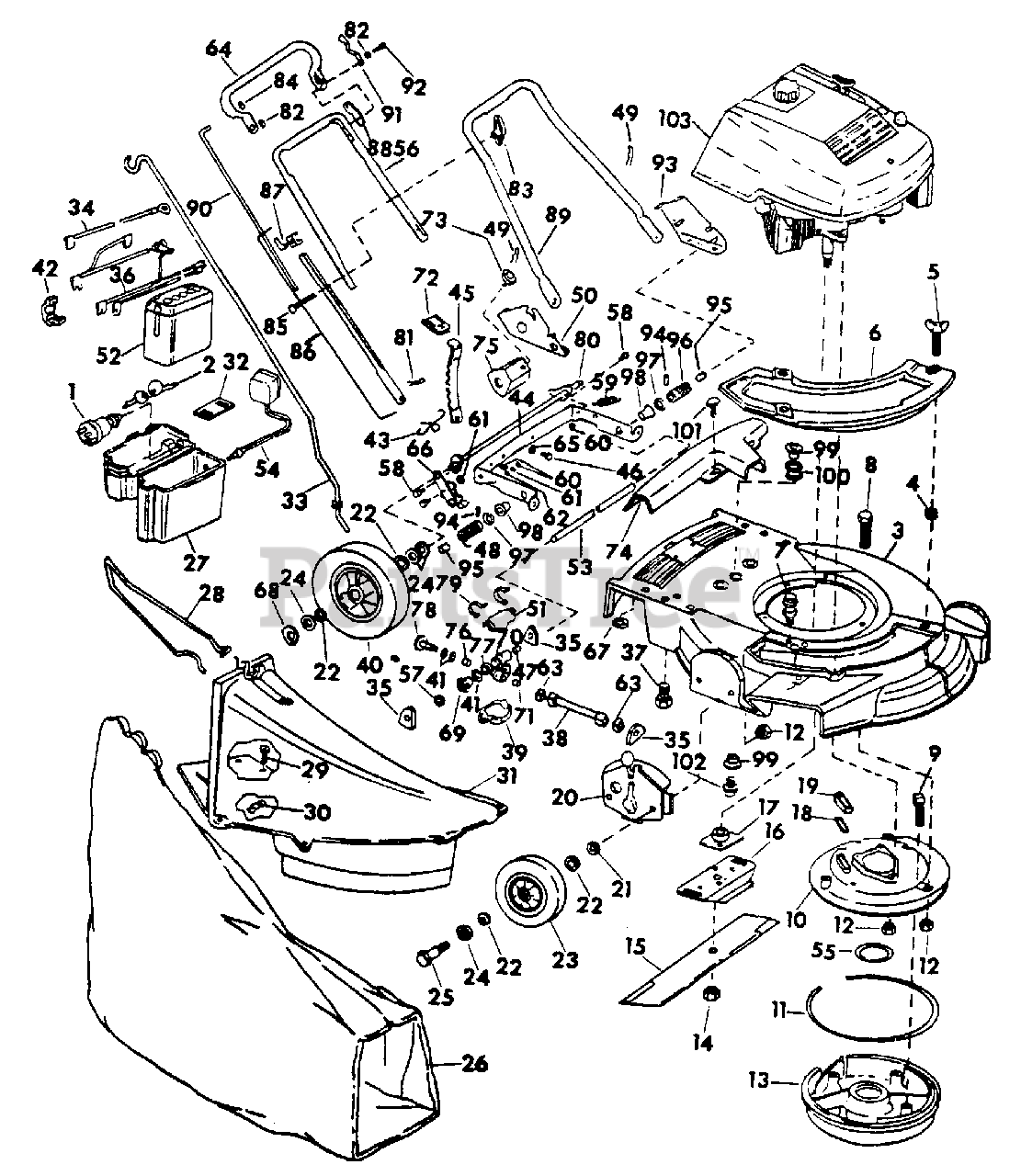

3315 - International Harvester 21" Self-Propelled Walk-Behind Mower (1972) Frame, Blade And Wheels Parts Diagram

21" Self-Propelled Walk-Behind Mower

Frame, Blade And Wheels Parts Diagram

  • Title

1

Cub Cadet IH-544352-R91

SWITCH ASSY

$

$

Currently unavailable

2

Cub Cadet IH-619743-C1

KEY

$

$

Currently unavailable

3

Cub Cadet IH-55592-C91

HOUSING ASSY, 21 IN.

$

$

Currently unavailable

4

Cub Cadet IH-540590-R1

NUT, GROMMET

$

$

Currently unavailable

5

Cub Cadet IH-55410-C1

SCREW, WING

$

$

Currently unavailable

6

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

Note: (REPLACES IH-55414-C1)

$

$

Currently unavailable

7

Cub Cadet IH-55409-C1

SCREW, SHOULDER

$

$

Currently unavailable

8

Cub Cadet IH-55420-C1

SCREW, MUFFLER PLT TO HSG

$

$

Currently unavailable

9

Cub Cadet IH-55419-C1

SCREW, MUFFLER TO PLATE

$

$

Currently unavailable

10

Cub Cadet IH-55595-C1

PLATE, MUFFLER

$

$

Currently unavailable

11

Cub Cadet IH-55421-C1

GASKET, MUFFLER OUTSIDE

$

$

Currently unavailable

12

Cub Cadet IH-544290-R1

NUT, NYLOK

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CAD TORQUE HEX.

$

$

Currently unavailable

13

Cub Cadet IH-55423-C1

COVER, MUFFLER

$

$

Currently unavailable

14

Cub Cadet IH-544293-R1

NUT, BLADE

$

$

Currently unavailable

15

Cub Cadet IH-544348-R1

BLADE, 21 IN.

$

$

Not available

Cub Cadet IH-557269-R1

WASHER, 21/32 X 2 X 16 GA

$

$

Currently unavailable

16

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

17

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

18

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

19

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

20

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT -2-

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

21

Cub Cadet IH-544303-R1

WASHER

$

$

Currently unavailable

22

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

23

Cub Cadet IH-55413-C1

WHEEL AND TIRE - (6 IN. FRONT)

$

$

Currently unavailable

24

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

25

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

26

Cub Cadet IH-55593-C1

BAG, GRASS

$

$

Not available

27

Cub Cadet IH-55598-C1

BOX, BATTERY

$

$

Currently unavailable

Cub Cadet IH-23911-R1

NUT, 1/4-20 CAD NYLON INSERT

$

$

Currently unavailable

Cub Cadet IH-12653-R1

BOLT, 1/4-20 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

28

Cub Cadet IH-55424-C1

GUARD, WHEEL

$

$

Currently unavailable

29

Cub Cadet IH-548275-R1

SCREW

$

$

Currently unavailable

30

Cub Cadet IH-545115-R1

NUT, SPEED

$

$

Currently unavailable

31

Cub Cadet IH-548277-R91

CHUTE ASSY

Note: (INCLUDES REF NOS 29 AND 30)

$

$

Currently unavailable

32

Cub Cadet IH-55395-C1

STRAP, BATTERY BOX MTG

$

$

Currently unavailable

33

Cub Cadet IH-55429-C1

ROD, GRASS BAG

$

$

Currently unavailable

34

Cub Cadet IH-55448-C1

LEAD

$

$

Currently unavailable

35

Cub Cadet IH-55397-C1

SEAL

$

$

Currently unavailable

36

Cub Cadet IH-55447-C1

HARNESS

$

$

Currently unavailable

37

Cub Cadet IH-544315-R1

SCREW

$

$

Currently unavailable

38

Cub Cadet IH-55399-C1

TUBE

$

$

Currently unavailable

39

Cub Cadet IH-55586-C1

COVER, GEAR BOTTOM

$

$

Currently unavailable

40

Cub Cadet IH-55596-C1

WHEEL & TIRE. 8 IN. REAR

$

$

Currently unavailable

41

Cub Cadet IH-598783-R1

WASHER, THRUST

$

$

Currently unavailable

Cub Cadet IH-23295-R1

PIN, 1/8 X 1 ZND SLT SPRING

$

$

Currently unavailable

42

Cub Cadet IH-55597-C1

POD. INSULATION

$

$

Currently unavailable

43

Cub Cadet IH-544323-R1

SPRING, HEIGHT ADJ

$

$

Currently unavailable

44

Cub Cadet IH-55436-C1

BRACKET

$

$

Currently unavailable

45

Cub Cadet IH-55431-C1

LEVER, HGT ADJ

$

$

Currently unavailable

46

Cub Cadet IH-544372-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

47

Cub Cadet IH-56208-C91

BEARING, NEEDLE

$

$

Currently unavailable

48

Cub Cadet IH-55403-C1

ROLLER, DRIVE RH

$

$

Currently unavailable

49

Cub Cadet IH-968928-R1

PIN, HAIR

$

$

Currently unavailable

50

Cub Cadet IH-55434-C1

BRACKET, HANDLE RH

$

$

Currently unavailable

51

Cub Cadet IH-55588-C1

COVER, GEAR TOP

$

$

Currently unavailable

52

Cub Cadet IH-55396-C1

BATTERY, DRY CHARGED

$

$

Currently unavailable

53

Cub Cadet IH-55589-C1

SHAFT

$

$

Currently unavailable

54

Cub Cadet IH-545104-R1

CHARGER, TRICKLE

$

$

Currently unavailable

55

Cub Cadet IH-55418-C1

GASKET, MUFFLER INSIDE

$

$

Currently unavailable

56

Cub Cadet IH-55438-C1

HANDLE, CENTER

$

$

Currently unavailable

57

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

58

Cub Cadet IH-55404-C1

BOLT, SHOULDER

$

$

Currently unavailable

59

Cub Cadet IH-55405-C1

SPRING

$

$

Currently unavailable

60

Cub Cadet IH-55406-C1

NUT

$

$

Currently unavailable

61

Cub Cadet IH-55407-C1

WASHER

$

$

Currently unavailable

62

Cub Cadet IH-544951-R1

WASHER

$

$

Currently unavailable

63

Cub Cadet IH-55398-C1

BUSHING

$

$

Currently unavailable

64

Cub Cadet IH-55443-C1

HANDLE & GRIP

$

$

Currently unavailable

65

Cub Cadet IH-544371-R1

WASHER

$

$

Currently unavailable

66

Cub Cadet IH-55408-C1

CLUTCH

$

$

Currently unavailable

67

Cub Cadet IH-545109-R1

WASHER, BATTERY MOUNTING BRACKET

$

$

Currently unavailable

68

Cub Cadet IH-22824-R1

RING, RET

$

$

Currently unavailable

69

Cub Cadet IH-55400-C1

GEAR, DRIVEN

$

$

Currently unavailable

70

Cub Cadet IH-55401-C91

BRACKET & BRG ASSY

Note: (CONSISTS OF REF NOS 47, 71, 76 AND 77)

$

$

Currently unavailable

71

Cub Cadet IH-56206-C91

BEARING, NEEDLE

$

$

Currently unavailable

72

Cub Cadet IH-55411-C1

KNOB

$

$

Currently unavailable

73

Cub Cadet IH-55524-C1

SCREW

$

$

Currently unavailable

74

Cub Cadet IH-55432-C1

COVER, DRIVE

$

$

Currently unavailable

75

Cub Cadet IH-55433-C1

GUARD, ROLLER

$

$

Currently unavailable

76

Cub Cadet IH-56207-C91

BEARING, NEEDLE

$

$

Currently unavailable

77

Cub Cadet IH-56209-C91

BEARING, NEEDLE

$

$

Currently unavailable

78

Cub Cadet IH-55402-C1

GEAR, DRIVE

$

$

Currently unavailable

79

Cub Cadet IH-55587-C1

CLAMP, COVER

$

$

Currently unavailable

80

Cub Cadet IH-55590-C91

AXLE ASSY

$

$

Currently unavailable

81

Cub Cadet IH-382652-R1

PIN, HAIR

$

$

Not available

82

Cub Cadet IH-544341-R1

WASHER

$

$

Currently unavailable

83

Cub Cadet IH-55427-C1

KNOB

$

$

Currently unavailable

84

Cub Cadet IH-59032-C1

NUT, PUSH
(Superseded to 726-0135)

Note: (REPLACES IH-55442-C1)

$6.99

$

In Stock, only 1 left!

0

85

Cub Cadet IH-55428-C1

SCREW

$

$

Currently unavailable

86

Cub Cadet IH-55439-C91

LEVER ASSY, CONTROL

$

$

Currently unavailable

87

Cub Cadet IH-55440-C1

SCREW

$

$

Currently unavailable

Cub Cadet IH-127549

NUT, 5/16-24 TYPE B TEE

$

$

Currently unavailable

88

Cub Cadet IH-55444-C1

BRACKET

$

$

Currently unavailable

Cub Cadet IH-23911-R1

NUT, 1/4-20 CAD NYLON INSERT

$

$

Currently unavailable

Cub Cadet IH-132259

SCREW, 1/4-20 X 5/8 SLT-FIL-HD MACH

$

$

Currently unavailable

89

Cub Cadet IH-55426-C1

HANDLE, BOTTOM

$

$

Not available

90

Cub Cadet IH-55441-C1

ROD, CONTROL

$

$

Currently unavailable

91

Cub Cadet IH-55445-C1

KNOB & SPRING, LOCKOUT

$

$

Currently unavailable

92

Cub Cadet IH-55526-C1

BOLT, SHOULDER

$

$

Currently unavailable

93

Cub Cadet IH-55435-C1

BRACKET, HANDLE LH

$

$

Currently unavailable

94

Cub Cadet IH-544619-R1

PIN, ROLLER TO SHAFT

$

$

Currently unavailable

95

Cub Cadet IH-544620-R1

PLUG, ROLLER GREASE

$

$

Currently unavailable

96

Cub Cadet IH-55437-C1

ROLLER, DRIVE LH

$

$

Currently unavailable

97

Cub Cadet IH-544622-R1

WASHER
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

98

Cub Cadet IH-544623-R1

SLEEVE & BEARING

$

$

Currently unavailable

99

Cub Cadet IH-55430-C1

SPACER, FLANGED

$

$

Currently unavailable

100

Cub Cadet IH-55594-C1

GROMMET

$

$

Currently unavailable

101

Cub Cadet IH-544346-R1

SCREW, HEX-HD

$

$

Currently unavailable

102

Cub Cadet IH-55446-C1

SCREW

$

$

Currently unavailable

103

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

Cub Cadet IH-55585-C1

PACKAGE, PRODUCT GRAPHIC

$

$

Currently unavailable
