331416BVE (84233) - Snapper 33" Rear-Engine Riding Mower, 14hp Main Case (Hinged Seat Mount) Parts Diagram

33" Rear-Engine Riding Mower, 14hp

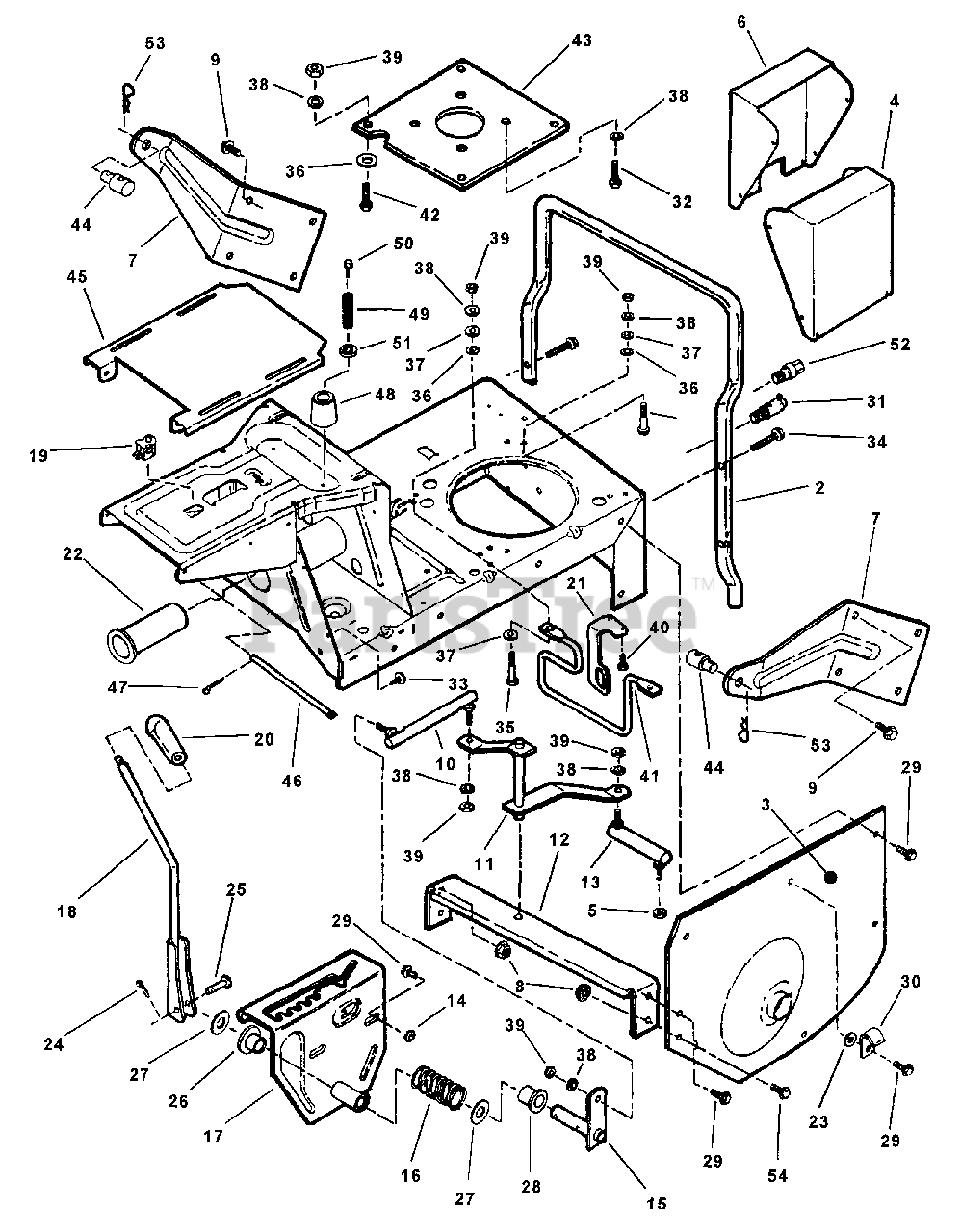

Main Case (Hinged Seat Mount) Parts Diagram

  • Title

?1

Snapper 7042700

CASE, Main
(Superseded to 7042700YP)

Note: (12, 13 & 14 HP Briggs)

$433.99

$

Usually ships in 2-12 days

0

Snapper 7042702

CASE, Main
(Superseded to 7042702YP)

Note: (14 & 15 HP Kohler)

$421.99

$

Usually ships in 2-12 days

0

2

Snapper 7036367

BUMPER, Rear
(Superseded to 7036367BMYP)

$158.99

$

In Stock, only 1 left!

0

3

FENDER, Left Hand

Note: (See "Chain Case, L.H. Fender" Illustration & Part List For Related Parts)

$

$

Not available

4

Snapper 7028990

COVER, Battery
(Superseded to 7028990YP)

$34.99

$

In Stock, only 1 left!

0

5

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7028989

COVER, Switch
(Superseded to 7073268YP)

$20.99

$

In Stock, only 2 left!

0

7

Snapper 7034299

WING, Rear
(Superseded to 7034299YP)

Note: (Models 28", 30" & 33" Only!)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7023676

LINK, Shift (Long)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

11

Snapper 7041384

ARM, Shift (Weldment)
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7033799

CROSS BRACE
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7011018

LINK, Shift (Short)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

14

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7040598

ARM, Shift Handle (Weldment)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

16

Snapper 7010754

SPRING, Shift Handle
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7041232

DETENT, Shift (Weldment)
(Superseded to 7041232BMYP)

$121.99

$

Usually ships in 2-12 days

0

18

Snapper 7059212

HANDLE, Shift (Weldment)
(Superseded to 7059212DYP)

Note: Was 40599 (Now 59212 + 23656)

$56.99

$

In Stock, Qty 20+

0

19

Snapper 7023354

SWITCH, Seat
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

20

Snapper 7023656

KNOB, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

21

Snapper 7034724

BRACKET, Switch
(Superseded to 7034724YP)

$19.99

$

Usually ships in 2-12 days

0

22

Snapper 7074650

BUSHING, Pilot
(Superseded to 7074650YP)

Note: Was 22509

$12.99

$

In Stock, only 3 left!

0

23

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

26

Snapper 7019245

BUSHING, Nylon
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7019246

BUSHING, Nylon
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

30

Snapper 7012652

CLIP, Wire
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7027972

DRAIN, Oil (1/4 Turn)
(Superseded to 7027972SM)

Note: (12 HP Briggs & 14 & 15 HP Kohler)

$24.99

$

In Stock, Qty 9

0

32

Snapper 7077692

BOLT, M8-1.25 x 25mm Hex Head Self-Tap
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091272

FASTENER, 1/4 x 3/4" Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0

34

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

$4.49

$

In Stock, only 4 left!

0

35

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

36

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

38

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7090981

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

Note: Was 91080

$3.99

$

In Stock, Qty 16

0

41

Snapper 7036418

GUIDE, Belt
(Superseded to 7036418BZYP)

Note: (12, 13 & 14 Briggs)

$34.99

$

Usually ships in 2-12 days

0

Snapper 7036419

GUIDE, Belt
(Superseded to 7036419YP)

Note: (14 & 15 HP Kohler)

$39.99

$

Usually ships in 2-12 days

0

Snapper 7035971

GUIDE, Belt
(Superseded to 7035971YP)

Note: (13 HP 28" Deck)

$26.99

$

Usually ships in 2-12 days

0

42

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

43

Snapper 7074946

PLATE, Engine
(Superseded to 7074946YP)

Note: Was 34093 (Used on the 14 HP Kohler engines only)

$22.99

$

Usually ships in 2-12 days

0

44

Snapper 7028200

SWIVEL
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

45

Snapper 7034664

PLATE, Seat
(Superseded to 7034664YP)

$

$

Not available

46

Snapper 7028656

PIN, Hinge
(Superseded to 7028656YP)

$9.49

$

Usually ships in 2-12 days

0

47

Snapper 7090360

COTTER-PIN, 1/16 x 3/4"

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7028540

CUSHION
(Superseded to 7028540YP)

$10.99

$

Usually ships in 2-12 days

0

49

Snapper 7043840

SPRING, Seat (Operator Presence Control)

$

$

Not available

50

Snapper 7090999

SCREW, 1/4-20 x 5/8" Self-Tapping, Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

51

Snapper 7091294

WASHER, 1/4" I.D. Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

52

Snapper 7022486

DRAIN, Oil (Short)
(Superseded to 7022486YP)

Note: (8, 10, & 14 HP Briggs)

$22.99

$

Usually ships in 2-12 days

0

53

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0
