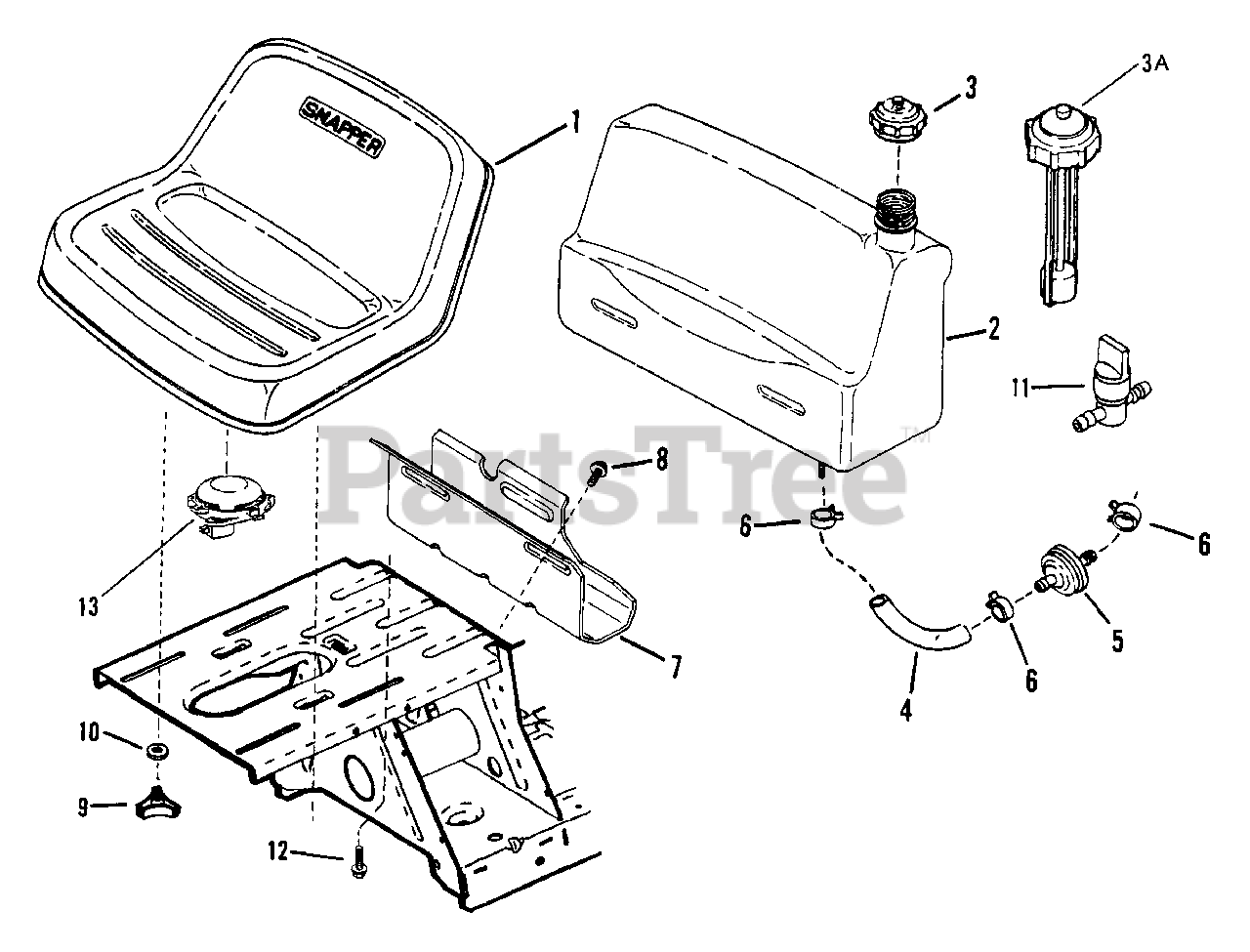

331415BVE (80864) - Snapper 33" Rear-Engine Riding Mower, 14hp Fuel Tank & Operators Seat Parts Diagram

33" Rear-Engine Riding Mower, 14hp

Fuel Tank & Operators Seat Parts Diagram

  • Title

1

Snapper 7029857

SEAT, Operator (Mid Back)

Note: (Euro)

$

$

Not available

Snapper 7028650

SEAT, Operator (Low Back) w/s
(Superseded to 7028650YP)

Note: Was 28593, Shown but not used

$262.99

$

Usually ships in 2-12 days

0

Snapper 7028650

SEAT, Operator (High Back)
(Superseded to 7028650YP)

$262.99

$

Usually ships in 2-12 days

0

Snapper 7028650

SEAT, Operator (Deluxe Back)
(Superseded to 7028650YP)

Note: Was 22585 Used on 33" models

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank
(Superseded to 7051905YP)

Note: (Includes Item 3)

$201.99

$

In Stock, only 2 left!

0

Snapper 7052435

ASSEMBLY, Fuel Tank With Gauge
(Superseded to 7052435YP)

Note: (Includes Item 3A)

$234.99

$

Usually ships in 2-12 days

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 4 left!

0

3A

Snapper 7019377

CAP, Fuel Tank With Gauge
(Superseded to 7019377YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7032015

HOSE, Fuel (7" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

Snapper 7073240

HOSE, Fuel (5" Long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

Snapper 7076272

HOSE, Fuel (8-1/2" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

Snapper 7012638

HOSE, Fuel (12-1/2" Long)
(Superseded to 791766)

Note: Was 12912 (Kohler Only)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

8

Snapper 7091542

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7023191

KNOB, Seat Adjusting
(Superseded to 7023191SM)

Note: Use in front only

$6.99

$

In Stock, only 2 left!

0

--

Snapper 7028659

KNOB, Hinged Seat
(Superseded to 7028659YP)

Note: Not shown, use in front only

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 7013849

SPACER, 5/16
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7034212

VALVE, Fuel Shut-Off
(Superseded to 7034212YP)

Note: Was 24507 (Accessory)

$31.99

$

In Stock, only 1 left!

0

12

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

13

Snapper 7029211

SWITCH, Seat
(Superseded to 1714771SM)

$20.99

$

In Stock, only 1 left!

0
