331415BVE (80864) - Snapper 33" Rear-Engine Riding Mower, 14hp Engine & Exhaust Muffler Parts Diagram

33" Rear-Engine Riding Mower, 14hp

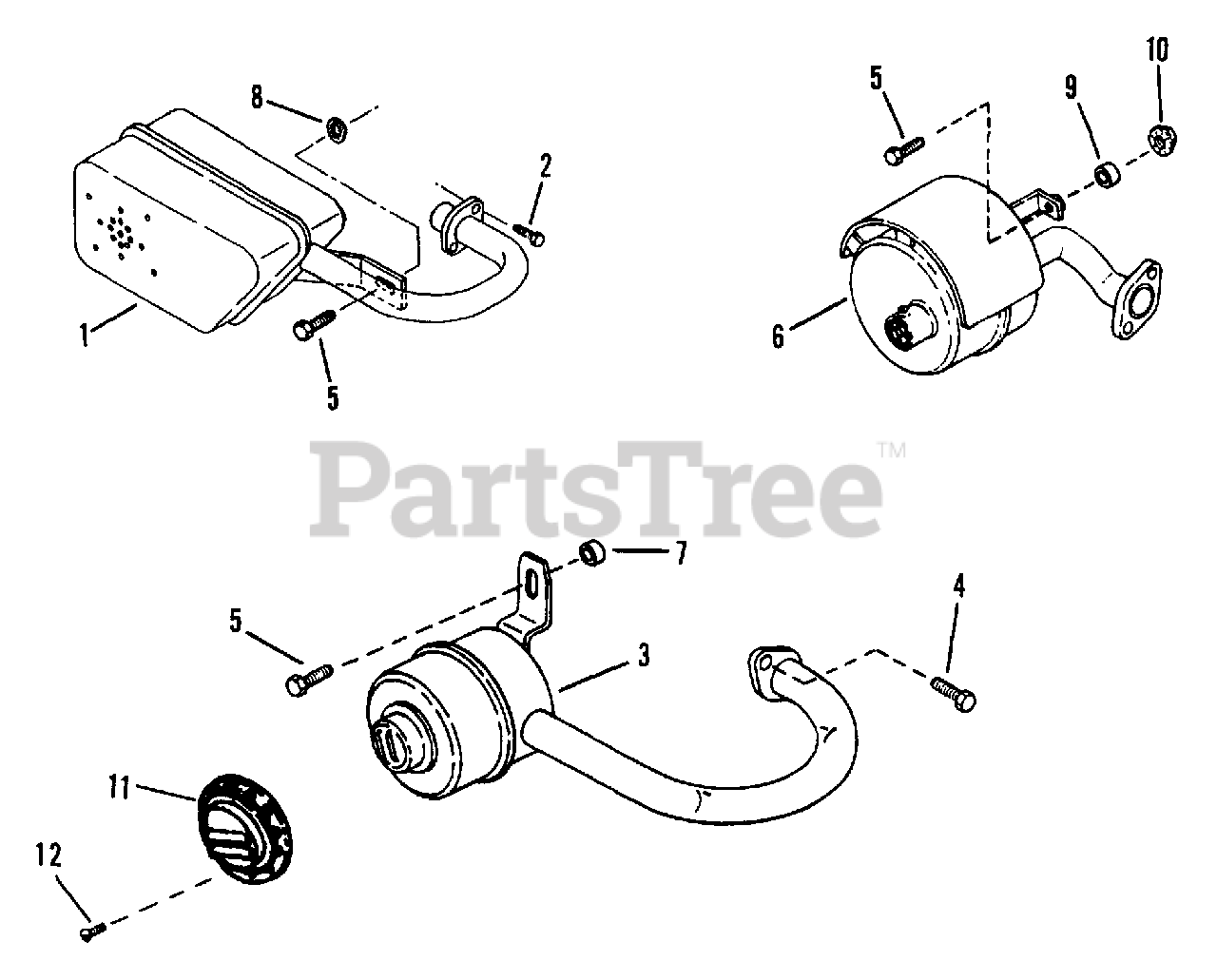

Engine & Exhaust Muffler Parts Diagram

  • Title

1

Snapper 7028358

MUFFLER

Note: (Briggs & HP Only)

$

$

Not available

2

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

3

Snapper 7051996

MUFFLER
(Superseded to 7051996YP)

Note: (9 HP, 10 HP, 12 HP Briggs); (Includes 11 & 12)

$84.99

$

In Stock, only 2 left!

0

4

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

5

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

Note: (8 & 12 HP Models)

$4.49

$

In Stock, Qty 7

0

Snapper 7091127

SCREW, 1/4-20 x 7/8" Machine
(Superseded to 7091127YP)

Note: (10 HP Models)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 7019358

MUFFLER
(Superseded to 7019358YP)

Note: (Kohler 14 HP Only)

$109.99

$

In Stock, only 1 left!

0

7

Snapper 7021866

SPACER
(Superseded to 7021866YP)

Note: (10 HP Models Only)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 7

0

9

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7019257

DEFLECTOR, Heat

$

$

Not available

12

Snapper 7023022

SCREW, #8 x 3/8

$

$

Currently unavailable

--

Snapper 7028674

MUFFLER, 14 HP B&S

$213.99

$

Usually ships in 2-12 days

0

--

Snapper 7091738

BOLTS, 5/16"-18 x 3/4" Socket Head (for 28674 muffler)
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 14

0
