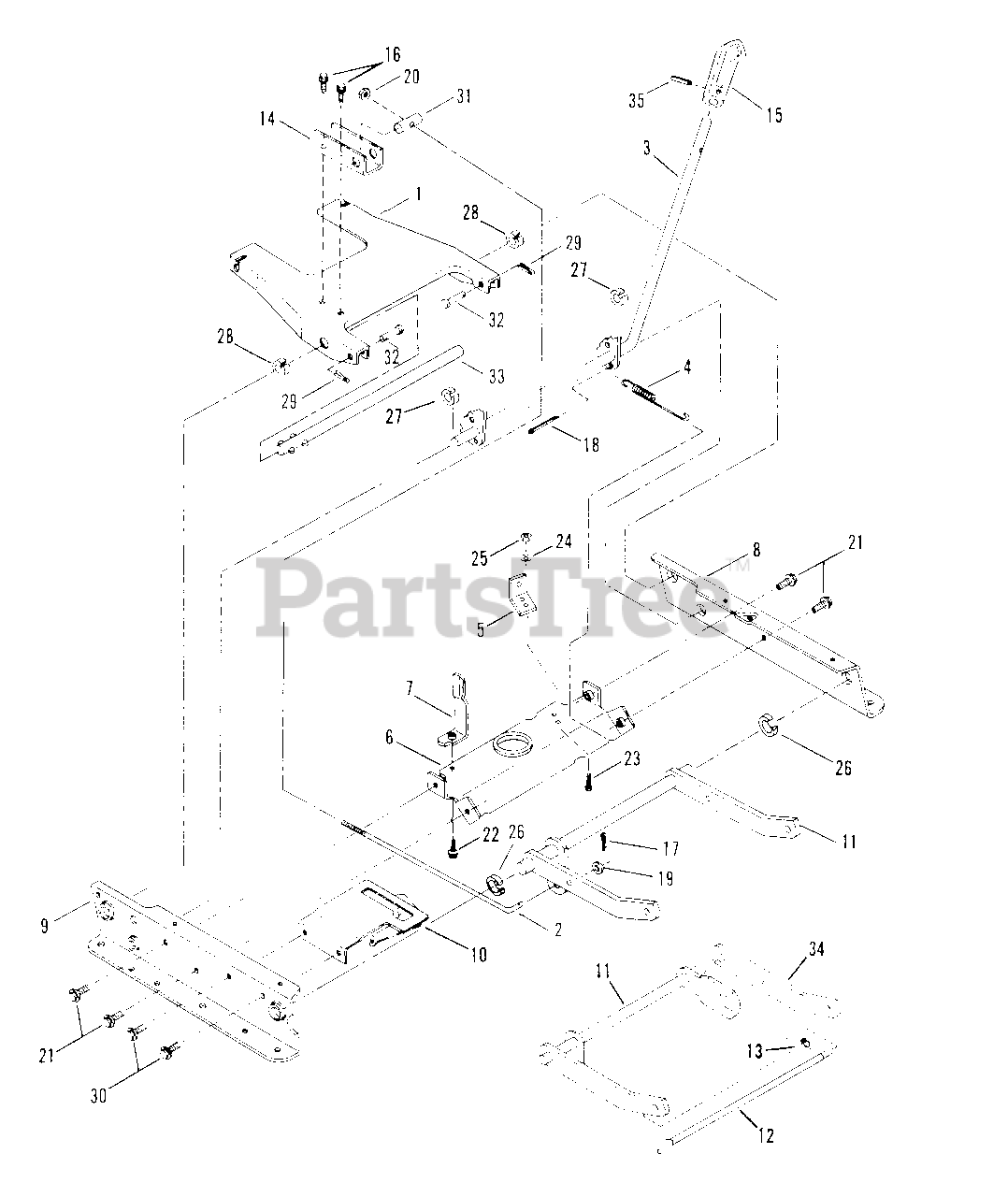

331411KVE (80263) - Snapper 33" Rear-Engine Riding Mower, 14hp Rails, Lift Arms, Cam Lift Parts Diagram

33" Rear-Engine Riding Mower, 14hp

Rails, Lift Arms, Cam Lift Parts Diagram

  • Title

1

Snapper 7033034

ARM, Rear Lift
(Superseded to 7033034YP)

$62.99

$

Usually ships in 2-12 days

0

2

Snapper 7016122

ROD, Leveling (15.3" L, 3/4-24 thread)
(Superseded to 7016122YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7040696

WELDMENT, Lift Lever
(Superseded to 7040696YP)

$118.99

$

Usually ships in 2-12 days

0

4

Snapper 7011074

SPRING, Cam Lever

$

$

Not available

5

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

Note: (For Auto. Blade Control Models)

$8.99

$

Usually ships in 2-12 days

0

6

Snapper 7031838

BRACE, Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7031855

GUIDE, Belt
(Superseded to 7031855YP)

$7.49

$

In Stock, only 1 left!

0

8

Snapper 7033036

RAIL, Left Hand
(Superseded to 7033036YP)

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7033037

RAIL, Right Hand
(Superseded to 7033037YP)

$47.99

$

Usually ships in 2-12 days

0

10

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

11

Snapper 7040684

ARM, Front Lift, Non-Adjustable
(Superseded to 7040684YP)

Note: (For 25", 28" Models)

$72.99

$

Usually ships in 2-12 days

0

11

Snapper 7040685

ARM, Front Lift, Adjustable

Note: (For 30", 33" Models)

$

$

Not available

12

Snapper 7022717

ROD, Support (Front Lift Arm to Front End)
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper 7017847

RING, 7/16 Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7033008

ARM, Leveling
(Superseded to 7033008YP)

$13.99

$

Usually ships in 2-12 days

0

15

Snapper 22296

GRIP, Height Adjustment Lever
(Superseded to 5022296)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 7090815

SCREW, 3/8-16 x 1/2" Self-Tapping
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

17

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090289

NUT, 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

21

Snapper 7090815

SCREW, 3/8-16 x 1/2" Self-Tapping
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

22

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

23

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

24

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7019401

RING, White

$

$

Not available

28

Snapper 7022112

RING, White
(Superseded to 7022112YP)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

31

Snapper 7022082

PIVOT, Leveling
(Superseded to 7022082YP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

33

Snapper 7022114

SHAFT, Pivot

$

$

Not available

34

Snapper 7032997

ARM, Front Lift-Left
(Superseded to 7032997YP)

Note: (For 30" Models)

$16.99

$

In Stock, only 1 left!

0

35

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0
