3314 - International Harvester 21" Self-Propelled Walk-Behind Mower (1972) Carburetor Parts Diagram

21" Self-Propelled Walk-Behind Mower

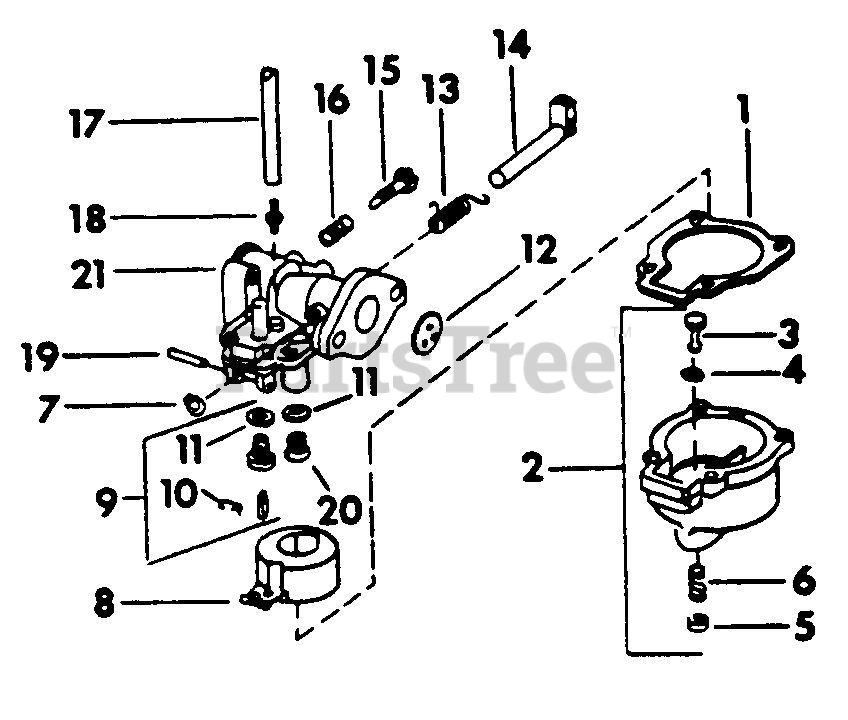

Carburetor Parts Diagram

  • Title

Cub Cadet IH-55486-C91

CARBURETOR ASSY

$

$

Currently unavailable

1

Cub Cadet IH-55487-C1

GASKET, FLOAT CHAMBER

$

$

Currently unavailable

2

Cub Cadet IH-55490-C91

FLOAT CHAMBER & DUMP VALVE ASSY

$

$

Currently unavailable

Cub Cadet IH-131970

SCREW 8-32 X 1/2 ZND FIL HD SLT MACH

$

$

Not available

3

Cub Cadet IH-55491-C1

STEM, VALVE

$

$

Currently unavailable

4

Cub Cadet IH-55492-C1

SEAT, VALVE

$

$

Currently unavailable

5

Cub Cadet IH-55493-C1

KEEPER, VALVE

$

$

Currently unavailable

6

Cub Cadet IH-55494-C1

SPRING, VALVE

$

$

Currently unavailable

7

Cub Cadet IH-544968-R1

GRIP, RING

$

$

Currently unavailable

8

Cub Cadet IH-544961-R1

FLOAT & ARM

$

$

Not available

9

Cub Cadet IH-545127-R1

FLOAT VALVE & SEAT

Note: (CONSISTS OF REF NOS 10 AND 11)

$

$

Not available

10

Cub Cadet IH-545128-R1

CLIP

$

$

Currently unavailable

11

Cub Cadet IH-545143-R1

WASHER, FLOAT VALVE SEAT

$

$

Currently unavailable

12

Cub Cadet IH-55485-C1

DISC, THROTTLE

$

$

Currently unavailable

13

Cub Cadet IH-544972-R1

SPRING, THROTTLE

$

$

Currently unavailable

14

Cub Cadet IH-55387-C1

SHAFT, THROTTLE

$

$

Currently unavailable

15

Cub Cadet IH-55495-C1

SCREW, AIR ADJ

$

$

Currently unavailable

16

Cub Cadet IH-544969-R1

SPRING, NEEDLE ADJ

$

$

Currently unavailable

17

Cub Cadet IH-55496-C1

TUBING, PRIMER

$

$

Not available

18

Cub Cadet IH-55488-C1

CONNECTOR, TUBING

$

$

Currently unavailable

19

Cub Cadet IH-544956-R1

PIN, FLOAT ARM HINGE

$

$

Currently unavailable

20

Cub Cadet IH-55489-C1

PLUG, NOZZLE

$

$

Currently unavailable

21

BODY ASSY, CARBURETOR

Note: (NUT SERVICED SEPARATELY)

$

$

Not available
