3314 H (990655) - Simplicity Sovereign Garden Tractor, 14hp TRANSMISSION GROUP Parts Diagram

Sovereign Garden Tractor, 14hp

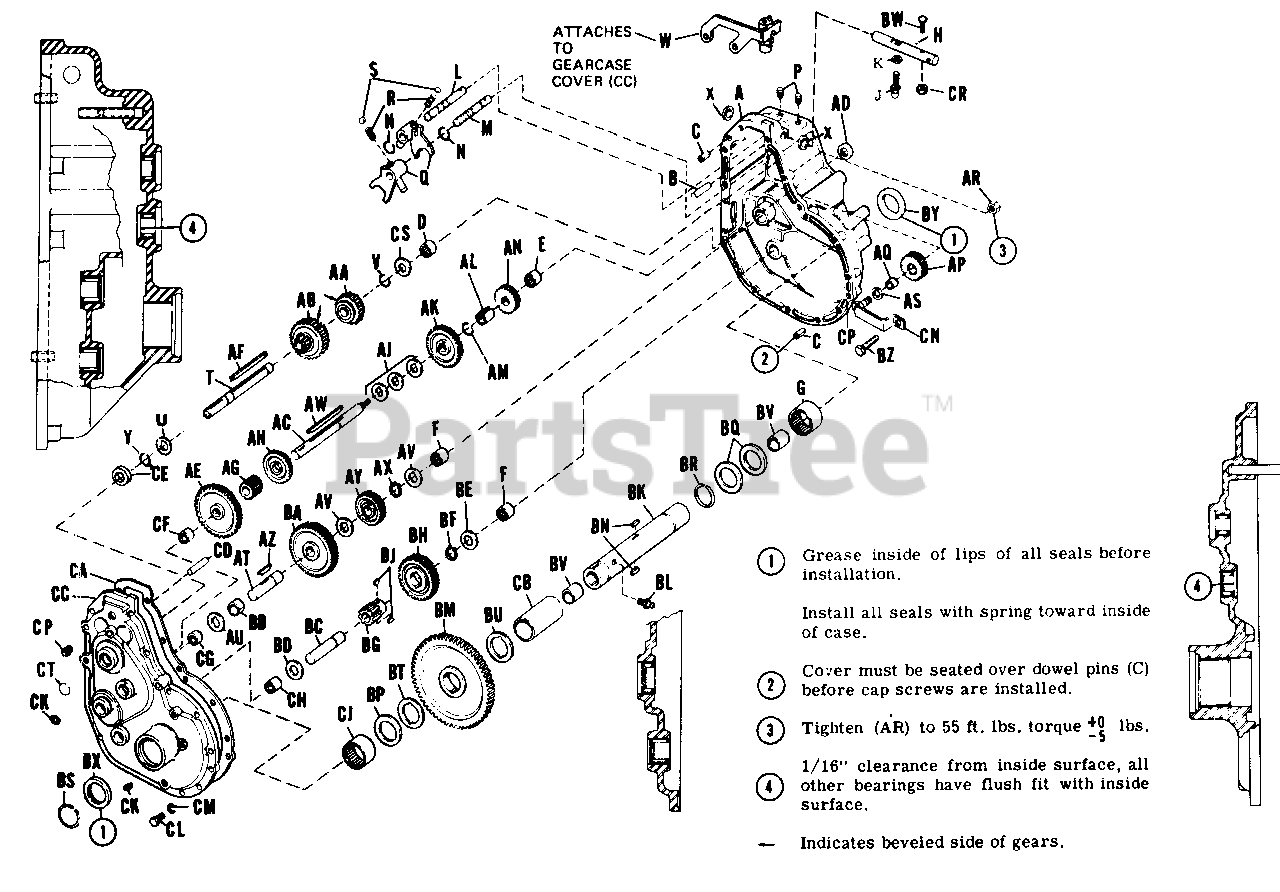

TRANSMISSION GROUP Parts Diagram

  • Title

A

Simplicity 157516

Case, Gear, Complete w/bearings and dowel pins (Includes "B" thru G")

$

$

Not available

B

Simplicity 154538

Roll Pin

$

$

Not available

C

Simplicity 2723007

Roll Pin

$

$

Not available

D

Simplicity 2154257SM

Needle Bearing

$27.99

$

In Stock, only 1 left!

0

E

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, Qty 8

0

F

Simplicity 154259

Needle Bearing

$

$

Not available

G

Simplicity 2157519SM

Needle Bearing

$

$

Not available

H

Simplicity 164250

Shift Rod

$

$

Not available

J

Simplicity 2154261

Shift Stem

$

$

Not available

K

Simplicity 717010

Full Hex. Nut, 3/8"-24 N.F.

$

$

Not available

L

Simplicity 154067

Shifter Shaft Rev., Med.

$

$

Not available

M

Simplicity 154068

Shifter Shaft High, Low

$

$

Not available

N

Simplicity 1729260SM

Retaining Ring

$5.99

$

Usually ships in 2-12 days

0

P

Simplicity 715019

Set Screw, Hollow Hd. Cone Pt. 5/16"-18 x 1/2"
(Superseded to 715455)

$14.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2154069SM

Shift Fork

$227.99

$

Usually ships in 2-12 days

0

R

Simplicity 2154323SM

Spring

$30.99

$

Usually ships in 2-12 days

0

S

Simplicity 2154262

Shift Lock Ball

$

$

Not available

T

Simplicity 164293

Pulley Shaft

$

$

Not available

U

Simplicity 2108472

Washer

$

$

Not available

V

Simplicity 2154264SM

Retaining Ring

$5.99

$

Usually ships in 2-12 days

0

W

Simplicity 164251

Switch Support

$

$

Not available

X

Simplicity 2157619SM

Oil Seal

$20.99

$

In Stock, only 3 left!

0

Y

Simplicity 2118134SM

Retaining Ring

$

$

Not available

AA

Simplicity 2154072

Pinion Assembly Rev. II

$

$

Not available

AB

Simplicity 2154075

Pinion Assembly I and III

$

$

Not available

AC

Simplicity 2157290

Shaft, 1st Intm.

$

$

Not available

AD

Simplicity 1612093SM

Oil Seal

$10.99

$

In Stock, Qty 20+

0

AE

Simplicity 154078

Driven I, Gear

$

$

Not available

AF

Simplicity 2164294SM

Key

$16.99

$

Usually ships in 2-12 days

0

AG

Simplicity 154079

Pinion, 1st Intm.

$

$

Not available

AH

Simplicity 2154080SM

Pinion, Driven III

$96.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 1729259SM

Trans. Gear Spacer

$5.99

$

In Stock, Qty 7

0

AK

Simplicity 154081

Driven II Gear

$

$

Not available

AL

Simplicity 154082

Spacer

$

$

Not available

AM

Simplicity 2154264SM

Retaining Ring

$5.99

$

Usually ships in 2-12 days

0

AN

Simplicity 2154083

Reverse Pinion

$

$

Not available

AP

Simplicity 2154087SM

Reverse Gear

$70.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 154084

Rev. Gear Spacer

$

$

Not available

AR

Simplicity 2717516

Lock Nut, 1/2"-20 N.F.

$

$

Not available

AS

Simplicity 2154325

Washer

$

$

Not available

AT

Simplicity 154086

Shaft, 2nd Intm.

$

$

Not available

AU

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

AV

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

AW

Simplicity 2154354SM

Key

$15.99

$

Usually ships in 2-12 days

0

AX

Simplicity 154266

Retaining Ring

$

$

Not available

AY

Simplicity 164062

Pinion, 2nd. Intm.

$

$

Not available

AZ

Simplicity 2154267SM

Key

$

$

Not available

BA

Simplicity 154089

Gear, 2nd. Intm.

$

$

Not available

BB

Simplicity 154090

Spacer

$

$

Not available

BC

Simplicity 154091

Shaft, 3rd. Intm.

$

$

Not available

BD

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

BE

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

BF

Simplicity 154266

Retaining Ring

$

$

Not available

BG

Simplicity 2154092SM

Pinion, 3rd. Intm.

$

$

Not available

BH

Simplicity 164051

Gear, 3rd. Intm.

$

$

Not available

BJ

Simplicity 2725002

Key Woodruff

$

$

Not available

BK

Simplicity 2164223

Axle Tube w/bushing

$

$

Not available

BL

Simplicity 2727002

Grease Fitting

$

$

Not available

BM

Simplicity 154095

Drive Gear

$

$

Not available

BN

Simplicity 2154096SM

Key

$6.99

$

In Stock, only 1 left!

0

BP

Simplicity 2154097SM

Washer

$

$

Not available

BQ

Simplicity 2154097SM

Washer

$

$

Not available

BR

Simplicity 2154268SM

Snap Ring

$7.49

$

In Stock, only 3 left!

0

BS

Simplicity 2154268SM

Snap Ring

$7.49

$

In Stock, only 3 left!

0

BT

Simplicity 2154130SM

Axle Tube Washer

$6.49

$

Usually ships in 2-12 days

0

BU

Simplicity 2154130SM

Axle Tube Washer

$6.49

$

Usually ships in 2-12 days

0

BV

Simplicity 2164224

Bearing

$

$

Not available

BW

Simplicity 172241

Carriage Bolt, 5/16"-18 x 1

$

$

Not available

BX

Simplicity 2154269SM

Seal

$

$

Not available

BY

Simplicity 2154269SM

Seal

$

$

Not available

BZ

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1 1/4"

$

$

Not available

CA

Simplicity 2164234SM

Gear Case Gasket

$39.99

$

In Stock, only 1 left!

0

CB

Simplicity 154098

Axle Tube Spacer

$

$

Not available

CC

Simplicity 164226

Gear Case Cover, Complete w/bearings

$

$

Not available

CD

Simplicity 154537

Roll Pin

$

$

Not available

CE

Simplicity 2108202SM

Ball Bearing

$11.99

$

In Stock, Qty 20+

0

CF

Simplicity 2154257SM

Needle Bearing

$27.99

$

In Stock, only 1 left!

0

CG

Simplicity 2154271SM

Needle Bearing

$

$

Not available

CH

Simplicity 154259

Needle Bearing

$

$

Not available

CJ

Simplicity 2157520SM

Needle Bearing

$59.99

$

Usually ships in 2-12 days

0

CK

Simplicity 2726003

Pipe Plug, 3/8"

$

$

Not available

CL

Simplicity 2705007

Hex. Cap Screw, 5/16"-18 x 1"

$

$

Not available

CM

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

CN

Simplicity 154352

Rev. Gear Pin Assembly

$

$

Not available

CP

Simplicity 2726003

Pipe Plug, 3/8"

$

$

Not available

CR

Simplicity 2717011

Hex Jam Nut, 5/16"-18

$

$

Not available

CS

Simplicity 154462

Washer

$

$

Not available

CT

Simplicity 164064

Retaining Ring

$

$

Not available
