3314 H (990655) - Simplicity Sovereign Garden Tractor, 14hp REAR WHEELS AND AXLE Parts Diagram

Sovereign Garden Tractor, 14hp

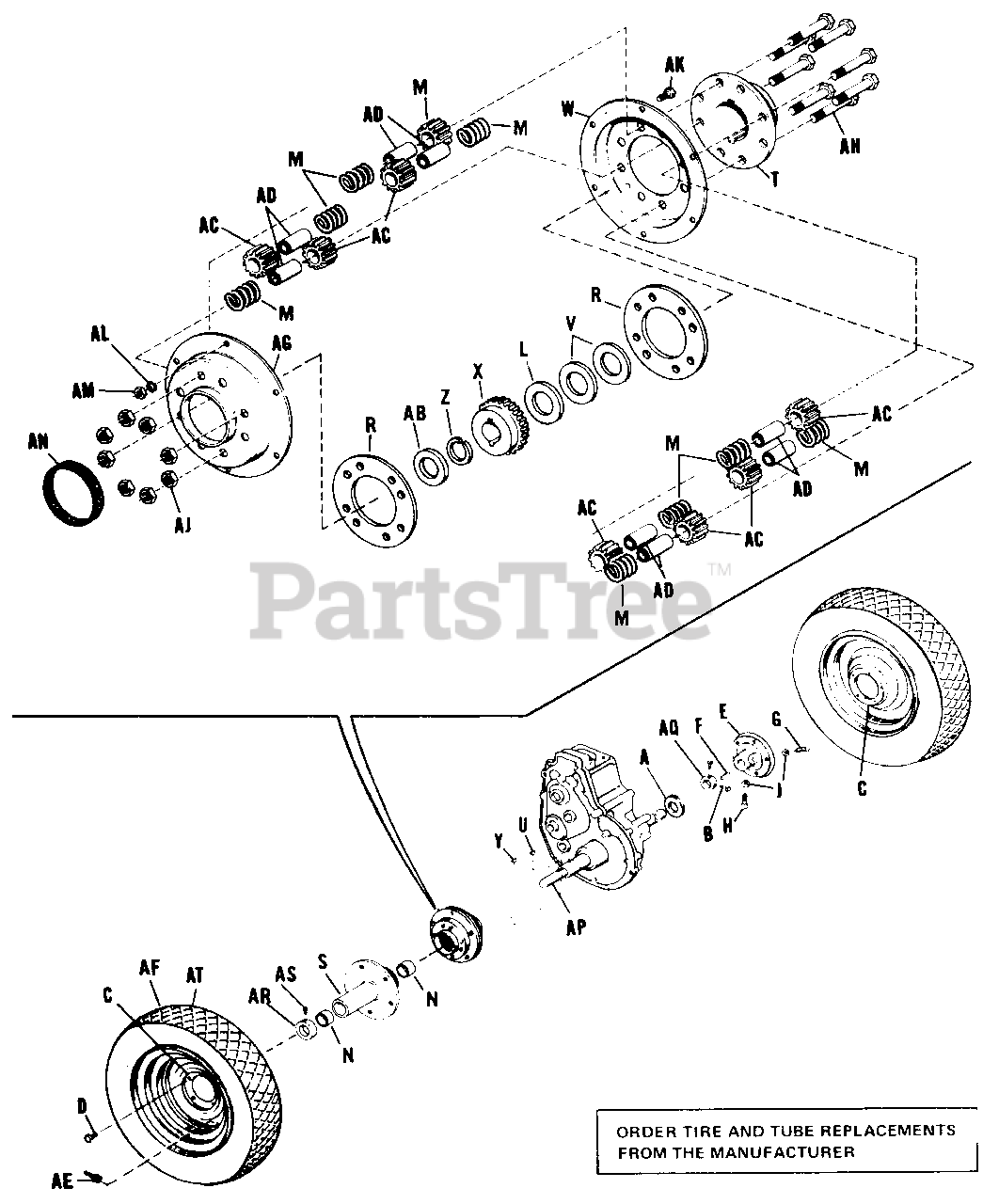

REAR WHEELS AND AXLE Parts Diagram

  • Title

A

Simplicity 2105050

Washer

$

$

Not available

B

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

C

Simplicity 2170278

Wheel Drive

$

$

Not available

D

Simplicity 1729280SM

Hub Bolt

$6.49

$

In Stock, Qty 6

0

E

Simplicity 2154208SM

L.H. Wheel Hub

$164.99

$

In Stock, only 1 left!

0

F

Simplicity 2159129

Key

$

$

Not available

G

Simplicity 2715022

Set Screw, 3/8"-16 x 1-1/2"

$

$

Not available

H

Simplicity 2713004

Set Screw, 3/8"-16 x 1"

$

$

Not available

J

Simplicity 2717021

Hex Jam Nut, 3/8"-16

$

$

Not available

L

Simplicity 2171515

Axle Washer

$

$

Not available

M

Simplicity 2162085SM

Spring

$6.99

$

In Stock, Qty 7

0

N

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

R

Simplicity 2171517SM

Ring Spacer

$9.49

$

Usually ships in 2-12 days

0

S

Simplicity 2171519

Wheel Hub Assy.

$

$

Not available

T

Simplicity 2164217SM

Differential Carrier

$125.99

$

Usually ships in 2-12 days

0

U

Simplicity 2157120SM

Drive Key

$6.99

$

In Stock, only 1 left!

0

V

Simplicity 2154035

Axle Washer

$

$

Not available

W

Simplicity 2171853SM

Differential Cover

Note: Reference letters "W" and "AG" must be replaced in pairs.

$

$

Not available

X

Simplicity 2164219

Differential Gear

$

$

Not available

Y

Simplicity 2725501

Hi-Pro Key

$

$

Not available

Z

Simplicity 2154291SM

Retaining Ring

$6.99

$

Usually ships in 2-12 days

0

AA

Simplicity 2157638SM

Tube (For Service Only)(14 H.P.)

$86.99

$

In Stock, only 2 left!

0

AA

Simplicity 157602

Tube (For Service Only)(10 H.P.)

$

$

Not available

AB

Simplicity 2154277

Axle Washer

$

$

Not available

AC

Simplicity 2158579SM

Differential Pinion

$

$

Not available

AD

Simplicity 2121083SM

Pinion Differential Cover

$13.99

$

In Stock, only 1 left!

0

AE

Simplicity 2172353SM

Valve Stem
(Superseded to 024373MA)

$

$

Not available

AF

Simplicity 170280

Wheel & Tire Assy. (14 H.P.)

$

$

Not available

AF

Simplicity 170279

Wheel & Tire Assy. (10 H.P.)

$

$

Not available

AG

Simplicity 2103189SM

Differential Cover

Note: Reference letters "W" and "AG" must be replaced in pairs.

$

$

Not available

AH

Simplicity 2715043

Hex. Cap Screw, 3/8"-16 x 2-1/2"

$

$

Not available

AJ

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AK

Simplicity 2705015

Hex. Cap Screw, 1/3"-20 x 5/8"

$

$

Not available

AL

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AM

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

AN

Simplicity 2121190SM

Differential Cover Seal

$

$

Not available

AP

Simplicity 2171526

Rear Axle

$

$

Not available

AQ

Simplicity 2154065SM

Axle Collar

$113.99

$

Usually ships in 2-12 days

0

AR

Simplicity 2154065SM

Axle Collar

$113.99

$

Usually ships in 2-12 days

0

AS

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

AT

Simplicity 2157637

Tire 10-1/2" x 12 (14 H.P.)

$

$

Not available

AT

Simplicity 157024

Tire 10-1/2" x 12 (10 H.P.)

$

$

Not available
