3314 H (990655) - Simplicity Sovereign Garden Tractor, 14hp BEVEL GEAR HOUSING Parts Diagram

Sovereign Garden Tractor, 14hp

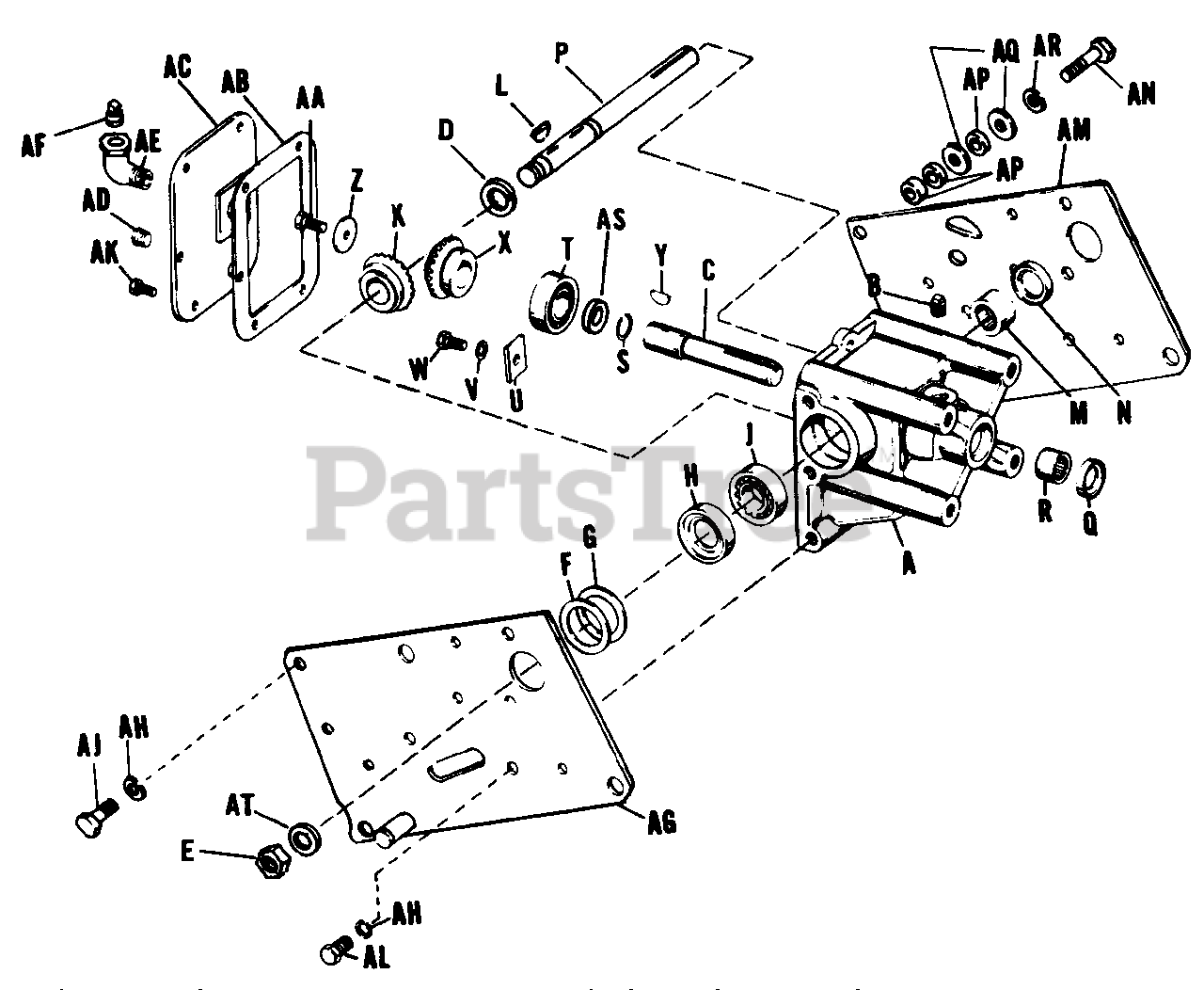

BEVEL GEAR HOUSING Parts Diagram

  • Title

A

Simplicity 1656877SM

Bevel Gear Housing, W/Bearings

$359.99

$

In Stock, only 1 left!

0

B

Simplicity 154326

Pipe Plug

$

$

Not available

C

Simplicity 2172750SM

Drive Shaft

$

$

Not available

D

Simplicity 2172206SM

Retaining Ring

$4.99

$

In Stock, Qty 20+

0

E

Simplicity 2717517

Hex Jam Nut, 3/4"-16

$

$

Not available

F

Simplicity 2171791SM

Shim (As Required)

$19.99

$

In Stock, only 1 left!

0

G

Simplicity 2171790SM

Shim

$16.99

$

In Stock, only 4 left!

0

H

Simplicity 1685088SM

Oil Seal

$34.99

$

In Stock, only 3 left!

0

J

Simplicity 2172256SM

Ball Bearing

$68.99

$

In Stock, only 4 left!

0

K

Simplicity 2171796SM

Bevel Driven Gear

$262.99

$

Usually ships in 2-12 days

0

L

Simplicity 2725003

Key, Woodruff

$

$

Not available

M

Simplicity 2154279SM

Needle Bearing

$

$

Not available

N

Simplicity 2118117SM

Oil Seal

$13.99

$

In Stock, Qty 15

0

P

Simplicity 2172207SM

Driven Shaft

$219.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2118117SM

Oil Seal

$13.99

$

In Stock, Qty 15

0

R

Simplicity 2154279SM

Needle Bearing

$

$

Not available

S

Simplicity 2172206SM

Retaining Ring

$4.99

$

In Stock, Qty 20+

0

T

Simplicity 2172256SM

Ball Bearing

$68.99

$

In Stock, only 4 left!

0

U

Simplicity 2154040SM

Bearing Clamp Plate

$29.99

$

In Stock, only 1 left!

0

V

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

W

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

X

Simplicity 2172752SM

Bevel Drive Gear

$271.99

$

In Stock, only 2 left!

0

Y

Simplicity 2725003

Key

$

$

Not available

Z

Simplicity 2154026

Washer

$

$

Not available

AA

Simplicity 2154281

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

AB

Simplicity 2154282SM

Gasket

$11.99

$

In Stock, only 1 left!

0

AC

Simplicity 164249

Housing Cover Assy.

$

$

Not available

AD

Simplicity 2726002

Pipe Plug

$

$

Not available

AE

Simplicity 2728501

Street Elbow

$

$

Not available

AF

Simplicity 2726003

Pipe Plug

$

$

Not available

AG

Simplicity 164177

R.H. Side Plate

$

$

Not available

AH

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AJ

Simplicity 2705041

Hex Capscrew, 7/16"-14 x 1"

$

$

Not available

AK

Simplicity 2707003

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

AL

Simplicity 2705042

Hex Capscrew, 7/16"-14 x 1-1/4"

$

$

Not available

AM

Simplicity 164179

L.H. Side Plate

$

$

Not available

AN

Simplicity 705064

Hex Capscrew, 7/16"-14 x 2"

$95.99

$

Usually ships in 2-12 days

0

AP

Simplicity 157168

Spacer

$

$

Not available

AQ

Simplicity 2719003

Washer, 7/16"

$

$

Not available

AR

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AS

Simplicity 2172753SM

Washer

$

$

Not available

AT

Simplicity 2154071

Washer

$

$

Not available
