3313 - International Harvester 21" Push Walk-Behind Mower (1972) Frame, Blade And Wheels Parts Diagram

21" Push Walk-Behind Mower

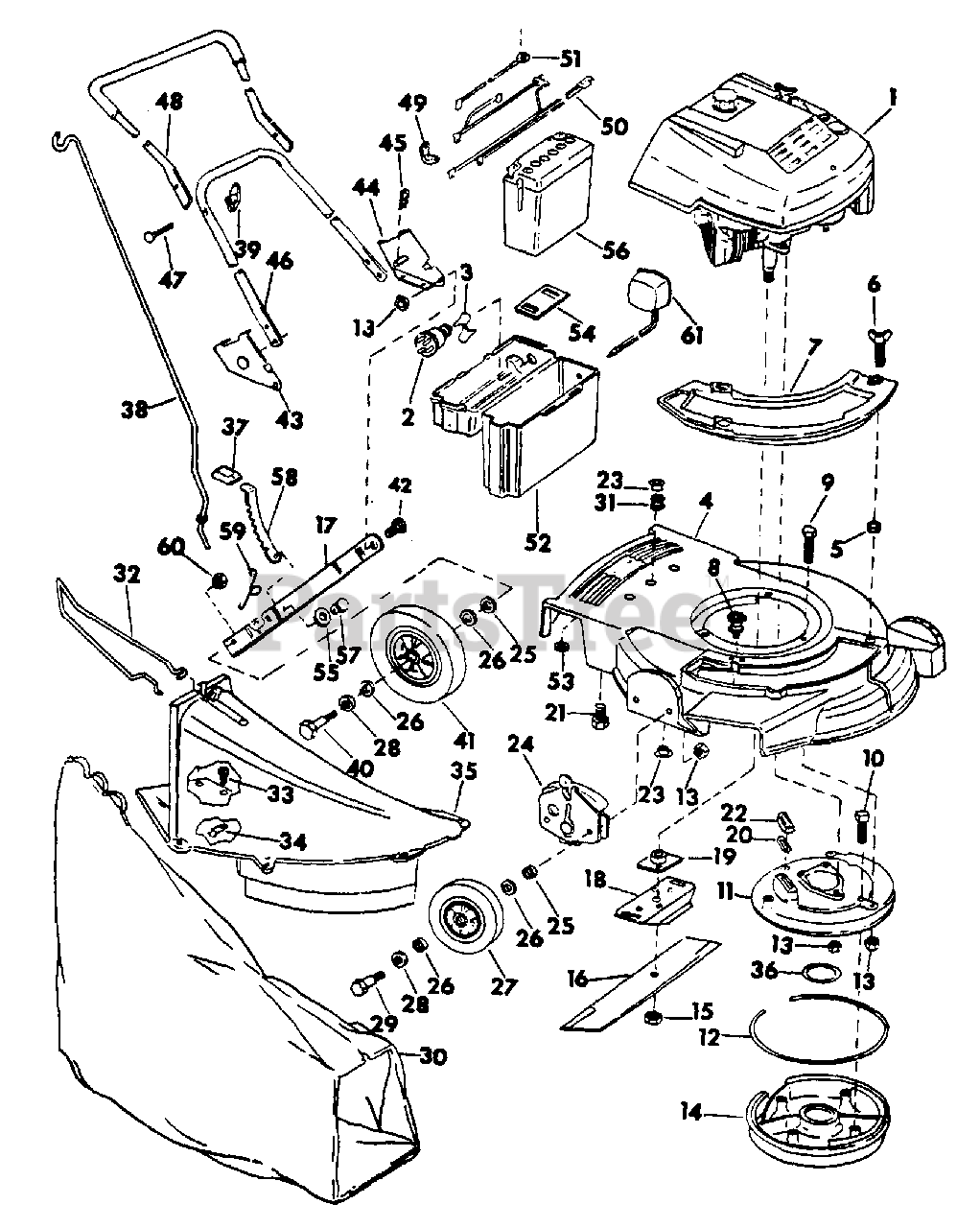

Frame, Blade And Wheels Parts Diagram

  • Title
1

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

2

$

$

Currently unavailable

$

$

Currently unavailable

4

Cub Cadet IH-55592-C91

HOUSING ASSY, 21 IN.

$

$

Currently unavailable

5

Cub Cadet IH-540590-R1

NUT, GROMMET

$

$

Currently unavailable

6

Cub Cadet IH-55410-C1

SCREW, WING

$

$

Currently unavailable

7

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

Note: (REPLACES IH-55414-C1)

$

$

Currently unavailable

8

Cub Cadet IH-55409-C1

SCREW, SHOULDER

$

$

Currently unavailable

9

Cub Cadet IH-55420-C1

SCREW, MUFFLER PLT TO HSG

$

$

Currently unavailable

10

Cub Cadet IH-55419-C1

SCREW, MUFFLER TO PLATE

$

$

Currently unavailable

11

Cub Cadet IH-55422-C1

PLATE, MUFFLER

$

$

Currently unavailable

12

Cub Cadet IH-55421-C1

GASKET, MUFFLER OUTSIDE

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Cub Cadet IH-55423-C1

COVER, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CD TORQUE HEX.

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Cub Cadet IH-544348-R1

BLADE, 21 IN.

$

$

Not available

Cub Cadet IH-557269-R1

WASHER, 21/32 X 2 X 16 GA

$

$

Currently unavailable

$

$

Currently unavailable

18

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

19

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

20

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

21

Cub Cadet IH-544315-R1

SCREW, HANDLE BRACKET

$

$

Currently unavailable

22

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

23

Cub Cadet IH-55430-C1

SPACER, FLANGED

$

$

Currently unavailable

24

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

$

$

Currently unavailable

26

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

27

Cub Cadet IH-55413-C1

WHEEL AND TIRE

Note: (6 IN. FRONT)

$

$

Currently unavailable

28

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

29

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

30

$

$

Not available

$

$

Currently unavailable

32

Cub Cadet IH-55424-C1

GUARD, WHEEL

$

$

Currently unavailable

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Cub Cadet IH-548277-R91

CHUTE ASSY

Note: (INCLUDES REF NOS 33 AND 34)

$

$

Currently unavailable

36

Cub Cadet IH-55418-C1

GASKET, MUFFLER INSIDE

$

$

Currently unavailable

$

$

Currently unavailable

38

Cub Cadet IH-55429-C1

ROD, GRASS BAG

$

$

Currently unavailable

$

$

Currently unavailable

40

Cub Cadet IH-544317-R1

BOLT, REAR WHEEL

$

$

Currently unavailable

41

Cub Cadet IH-55412-C1

WHEEL & TIRE - 8 IN. REAR

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

$

$

Currently unavailable

43

Cub Cadet IH-55416-C1

BRACKET & PIN, RH

$

$

Currently unavailable

44

Cub Cadet IH-55415-C1

BRACKET & PIN, LH

$

$

Currently unavailable

45

$

$

Currently unavailable

46

Cub Cadet IH-55426-C1

HANDLE, BOTTOM

$

$

Not available

$

$

Currently unavailable

48

Cub Cadet IH-55425-C1

HANDLE & GRIP, TOP

$

$

Currently unavailable

49

Cub Cadet IH-55597-C1

POD, INSULATION

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

52

Cub Cadet IH-55598-C1

BOX, BATTERY

$

$

Currently unavailable

Cub Cadet IH-23911-R1

NUT, 1/4-20 CAD NYLON INSERT

$

$

Currently unavailable

Cub Cadet IH-12653-R1

BOLT, 1/4-20 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

53

Cub Cadet IH-545109-R1

WASHER, BATTERY MTG BRACKET

$

$

Currently unavailable

54

Cub Cadet IH-55395-C1

STRAP, BATTERY BOX MTG

$

$

Currently unavailable

55

Cub Cadet IH-544371-R1

WASHER, SPRING

$

$

Currently unavailable

56

Cub Cadet IH-55396-C1

BATTERY, DRY CHARGED

$

$

Currently unavailable

57

Cub Cadet IH-544372-R1

PIN, HEIGHT ADJ LEVER

$

$

Currently unavailable

58

Cub Cadet IH-55417-C1

LEVER, REAR HGT ADJ

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

61

Cub Cadet IH-545104-R1

CHARGER, TRICKLE

$

$

Currently unavailable

Cub Cadet IH-55583-C1

PACKAGE, PRODUCT GRAPHIC

$

$

Currently unavailable
