33115SC (88382) - Snapper 33" Rear-Engine Riding Mower, 11hp Wheels - Rear Parts Diagram

33" Rear-Engine Riding Mower, 11hp

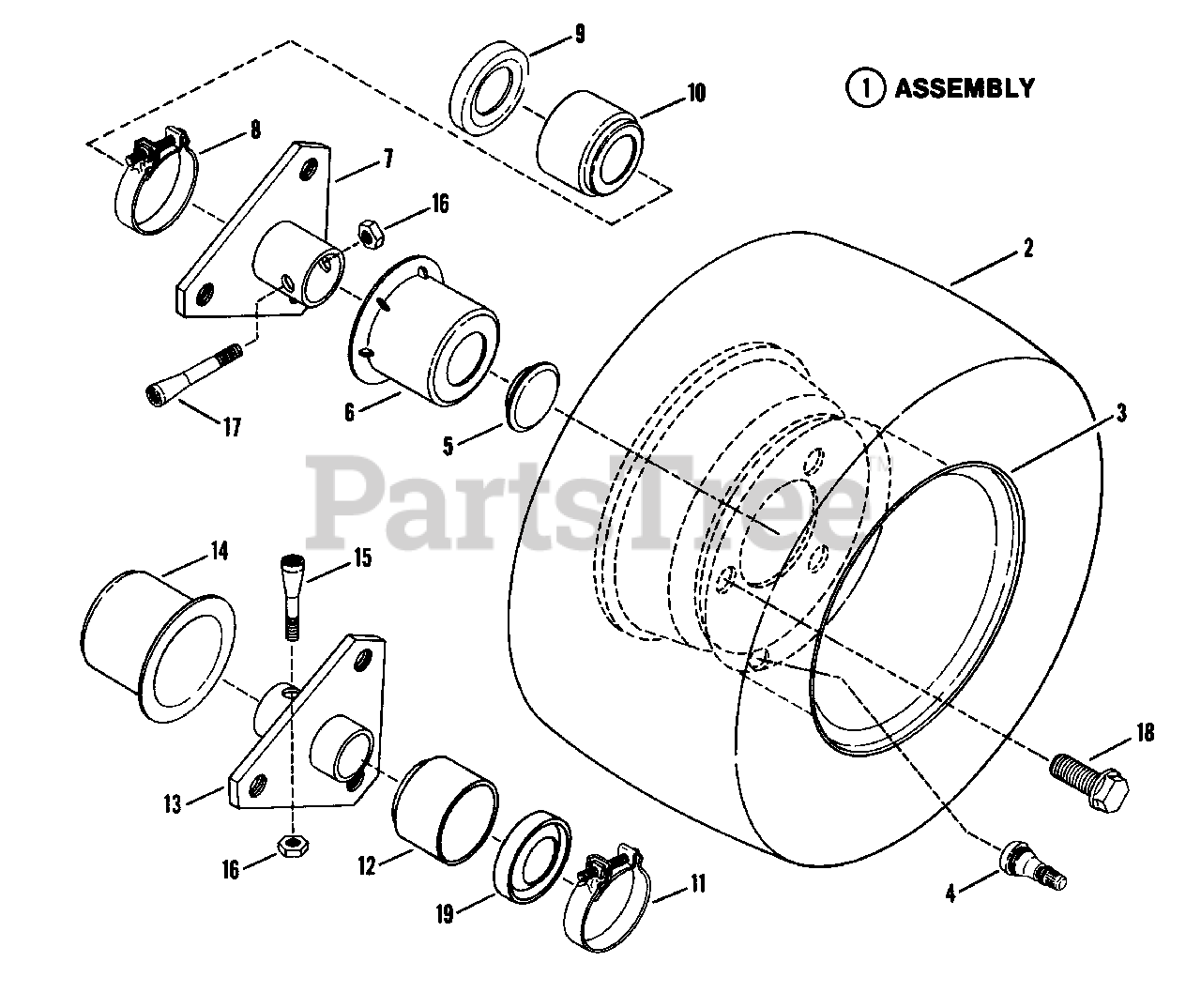

Wheels - Rear Parts Diagram

  • Title
1

Snapper 57270

ASSEMBLY, Rear Tire & Rim

Note: (Includes items 2, 3 & 4) Was 50713

$

$

Currently unavailable

2

Snapper 7046245

TIRE, Wide, 16/6.50x8
(Superseded to 7073584YP)

Note: Was 11097

$170.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM, Wide
(Superseded to 7012163YP)

Note: (For 16/6.50x8 Tire)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014741

PLUG, Right Hand, Commercial

$

$

Not available

6

Snapper 7011052

HUB-CAP, Right Hand, Commercial
(Superseded to 7011052YP)

Note: Was 32409

$4.49

$

In Stock, Qty 7

0

7

Snapper 7040433

HUB, Rear Wheel, Right Hand
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 14

0

8

Snapper 7014542

CLAMP, Right Hand

$

$

Not available

9

Snapper 7011817

SEAL, Oil, Right Hand
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7014541

BOOT, Right Hand
(Superseded to 7014541YP)

$

$

Not available

11

Snapper 7012332

Cl AMP, Left Hand
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

12

Snapper 7014658

BOOT, Left Hand
(Superseded to 7014658YP)

$7.99

$

In Stock, Qty 20+

0

13

Snapper 7040434

HUB, Rear Wheel, Left Hand
(Superseded to 7040434YP)

$

$

Not available

14

Snapper 7011052

HUB-CAP, Left Hand
(Superseded to 7011052YP)

$4.49

$

In Stock, Qty 7

0

15

Snapper 7011035

BOLT, Tapered, Left Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7092062

NUT, 5/16-24 Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7011013

BOLT, Tapered, Right Hand
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

18

Snapper 7091502

BOLT, Lug
(Superseded to 703431)

Note: Was 90367 (1/2-20x3/4" HHCS)

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7014662

SEAL, Oil, .75" ID, 1.832" OD, .25" Thick, Left Hand
(Superseded to 7014662YP)

$9.49

$

In Stock, only 1 left!

0
