33115SC (88382) - Snapper 33" Rear-Engine Riding Mower, 11hp Fuel Tank - Operators Seat Parts Diagram

33" Rear-Engine Riding Mower, 11hp

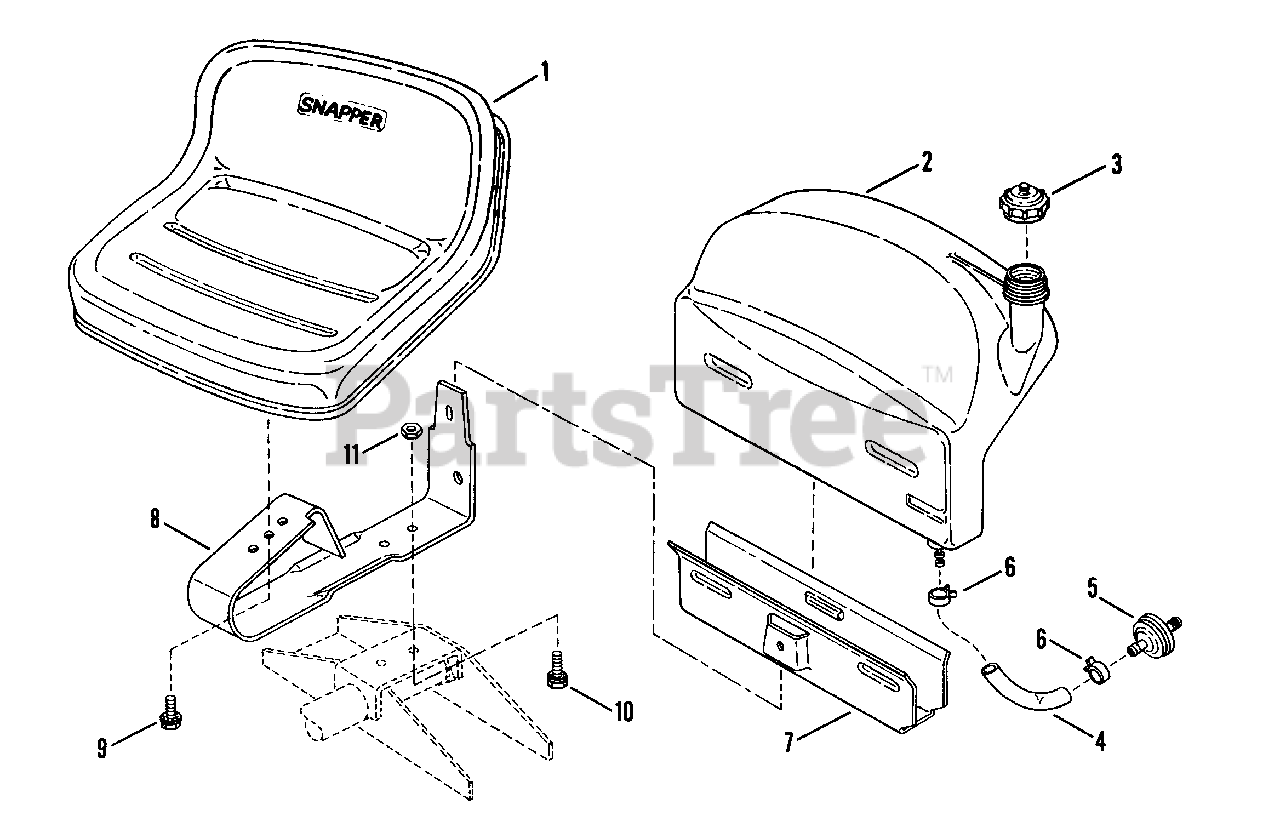

Fuel Tank - Operators Seat Parts Diagram

  • Title

1

Snapper 7019978

SEAT, Operator
(Superseded to 7019978YP)

$243.99

$

In Stock, only 1 left!

0

2

Snapper 7057243

ASSEMBLY, Fuel Tank
(Superseded to 7057243YP)

Note: (Includes item 3)

$186.99

$

In Stock, only 1 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 4 left!

0

4

Snapper 7032015

HOSE, Fuel, 7"
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7014359

FILTER, Fuel, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7039607

BRACKET, Fuel Tank
(Superseded to 7039607YP)

$51.99

$

Usually ships in 2-12 days

0

8

Snapper 7038333

SPRING, Operator's Seat
(Superseded to 7038333YP)

Note: Was 37750

$74.99

$

In Stock, only 1 left!

0

9

Snapper 7090680

BOLT, 1/2-13x3/4" Hex Flange Lock

$3.49

$

In Stock, only 4 left!

0

10

Snapper 7027198

BOLT, 3/8x1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

11

Snapper 7091619

LOCKNUT, 3/8 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
