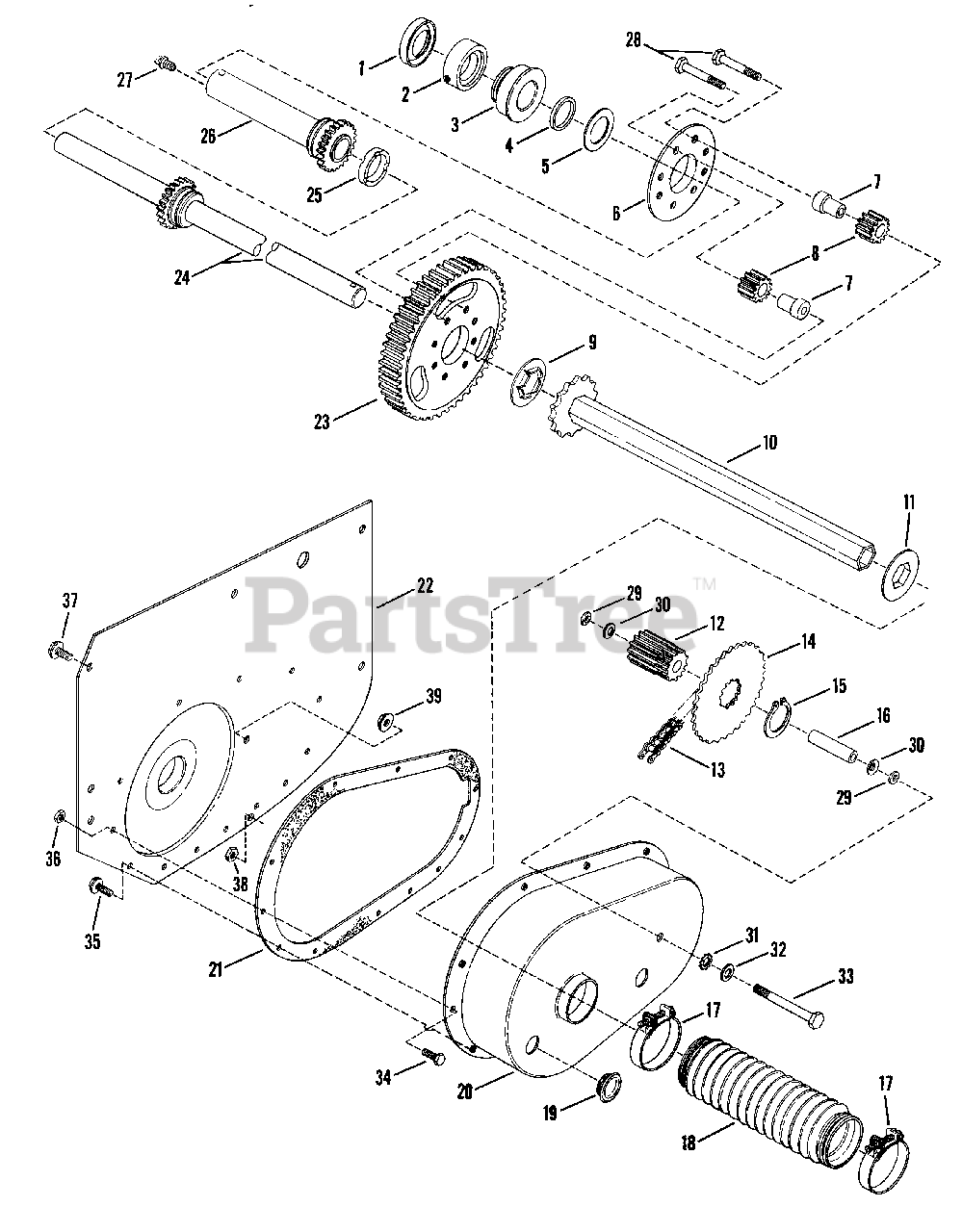

33115SC (88382) - Snapper 33" Rear-Engine Riding Mower, 11hp Differential, R.H. Fender Parts Diagram

33" Rear-Engine Riding Mower, 11hp

Differential, R.H. Fender Parts Diagram

  • Title

1

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

2

Snapper 7014401

COLLAR, Lock
(Superseded to 7014401YP)

Note: (Includes 5/16C x 5/16" Set Screw #90201)

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7018822

BEARING, Axle Right Hand Fender
(Superseded to 7018822YP)

Note: Was 14400

$74.99

$

In Stock, Qty 6

0

4

Snapper 7032107

SPACER, Short Axle

$10.99

$

In Stock, Qty 9

0

5

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

6

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$

$

Not available

7

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7021127

PINION GEARS, Differential
(Superseded to 7021127YP)

$23.99

$

In Stock, only 2 left!

0

9

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

10

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, Qty 6

0

10A

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

Note: Was 51429

$92.99

$

In Stock, Qty 6

0

10B

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, Qty 6

0

11

Snapper 7010988

WASHER, Hex
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7010964

GEAR, 11 Teeth, 10 Pitch
(Superseded to 7200128YP)

$14.99

$

In Stock, only 1 left!

0

13

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

14

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$20.99

$

In Stock, Qty 5

0

15

Snapper 7010965

RING, External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

16

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

17

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

18

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 11011

$10.99

$

In Stock, Qty 20+

0

19

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

20

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

21

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

Note: Was 18060

$24.99

$

In Stock, Qty 20+

0

22

Snapper 7037957

FENDER, Right Hand

$

$

Not available

23

Snapper 7027644

GEAR, 63 Teeth, 10 Pitch
(Superseded to 7027644YP)

$

$

Not available

24

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

Note: Was 47763

$136.99

$

In Stock, Qty 12

0

25

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7057398

AXLE, Short (DX)
(Superseded to 7600137YP)

$95.99

$

In Stock, only 4 left!

0

26A

Snapper 7057398

AXLE, Short (DX)
(Superseded to 7600137YP)

Note: Was 57352

$95.99

$

In Stock, only 4 left!

0

26B

Snapper 7057398

AXLE, Short (DX)
(Superseded to 7600137YP)

Note: Was 57398

$95.99

$

In Stock, only 4 left!

0

27

Snapper 7014669

FITTING, Lube
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7012333

SCREW, 5/16-24 x 1-5/8" Special Lock Cap
(Superseded to 7012333YP)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7011782

WASHER, 5/16" Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090395

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

32

Snapper 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

33

Snapper 7011042

BOLT, 5/16-24 x 2-5/8" (Idler)
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

34

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

35

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping )
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

36

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

37

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

38

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

Snapper 7060662

KIT, Differential (Commercial)
(Superseded to 7600229YP)

Note: (Includes item 22 and 1-8822 Ball Bearing for item 3)

$1049.99

$

Usually ships in 2-12 days

0

Snapper 7090201

Set Screw 5/16C x 5/16"
(Superseded to 7090201SM)

$

$

Not available
