33115SC (88382) - Snapper 33" Rear-Engine Riding Mower, 11hp Chain Case, LH Fender Parts Diagram

33" Rear-Engine Riding Mower, 11hp

Chain Case, LH Fender Parts Diagram

  • Title

1

Snapper 7059634

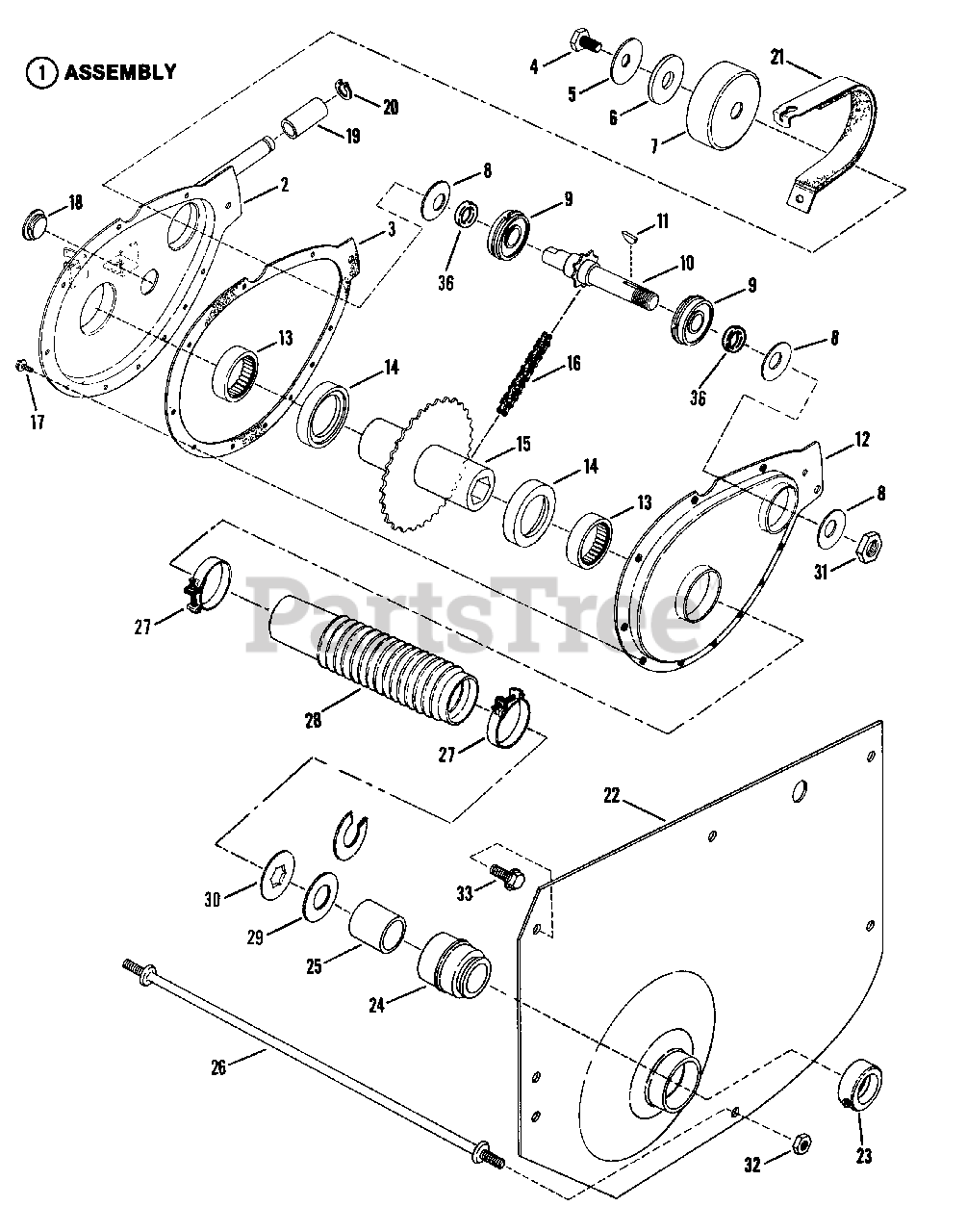

ASSEMBLY, Chain Case

Note: (Includes items 2 thru 17)

$

$

Not available

2

Snapper 7047313

CASE, Sprocket
(Superseded to 7047313YP)

$46.99

$

Usually ships in 2-12 days

0

3

Snapper 7028761

GASKET, Case-Cover
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7090493

SCREW, 3/8-24x1/2" Hex Head Cap

$4.99

$

In Stock, only 1 left!

0

5

Snapper 7011132

WASHER
(Superseded to 7011132YP)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7031751

WASHER, Brake Drum
(Superseded to 7031751YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7031748

DRUM, Auxiliary Brake
(Superseded to 7031748YP)

$25.99

$

Usually ships in 2-12 days

0

8

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

Note: (2 in Assembly, 1 Loose)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

10

Snapper 7010940

SPROCKET & SHAFT
(Superseded to 7010940YP)

$93.99

$

Usually ships in 2-12 days

0

11

Snapper 7010614

KEY, Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

13

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

14

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 14

0

15

Snapper 7040355

HUB & SPROCKET
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

16

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

17

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

18

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

19

Snapper 7020908

ROLLER
(Superseded to 7020908YP)

$4.49

$

In Stock, only 3 left!

0

19A

Snapper 7020908

ROLLER
(Superseded to 7020908YP)

Note: (Used with Yoke #47843, See "Smooth Clutch Assembly" illus. & parts list)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7050628

BAND, Auxiliary Brake
(Superseded to 7050628YP)

$68.99

$

In Stock, only 1 left!

0

22

Snapper 7037958

FENDER, Left Hand

$

$

Not available

23

Snapper 7014625

COLLAR, Lock
(Superseded to 7014625YP)

Note: (Includes 1/4Cx1/4" Set Screw #90776)

$11.99

$

In Stock, Qty 12

0

24

Snapper 7014624

BEARING, Left Hand Fender
(Superseded to 7014624YP)

$

$

Not available

25

Snapper 7023447

SPACER, Left Hand
(Superseded to 7023447YP)

Note: Was 32114

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7011070

ROD, Cross-Tie
(Superseded to 7011070YP)

$20.99

$

In Stock, only 3 left!

0

27

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

28

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 18555

$10.99

$

In Stock, Qty 20+

0

29

Snapper 7011071

WASHER, Thrust Nylon
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

31

Snapper 7090356

LOCKNUT, 5/8-18 Hex
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7090361

SCREW, 5/16-18 x 5/8" HW Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

?34

Snapper 7051451

FENDER ASS'Y, LH

Note: (Includes items 22 & 24)

$

$

Not available

?35

Snapper 7060277

KIT, Shim

Note: (Includes items 18, 29, 30 and 12271)

$

$

Not available

36

Snapper 7014508

"O" Ring
(Superseded to 7014508YP)

$4.49

$

In Stock, Qty 10

0

Snapper 7047843

LIFT, Yoke
(Superseded to 7047843YP)

$186.99

$

Usually ships in 2-12 days

0

Snapper 7090776

Set Screw 1/4C x 1/4"
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0
