3311 - International Harvester 19" Push Walk-Behind Mower (1972) Engine, Governor And Air Cleaner Parts Diagram

19" Push Walk-Behind Mower

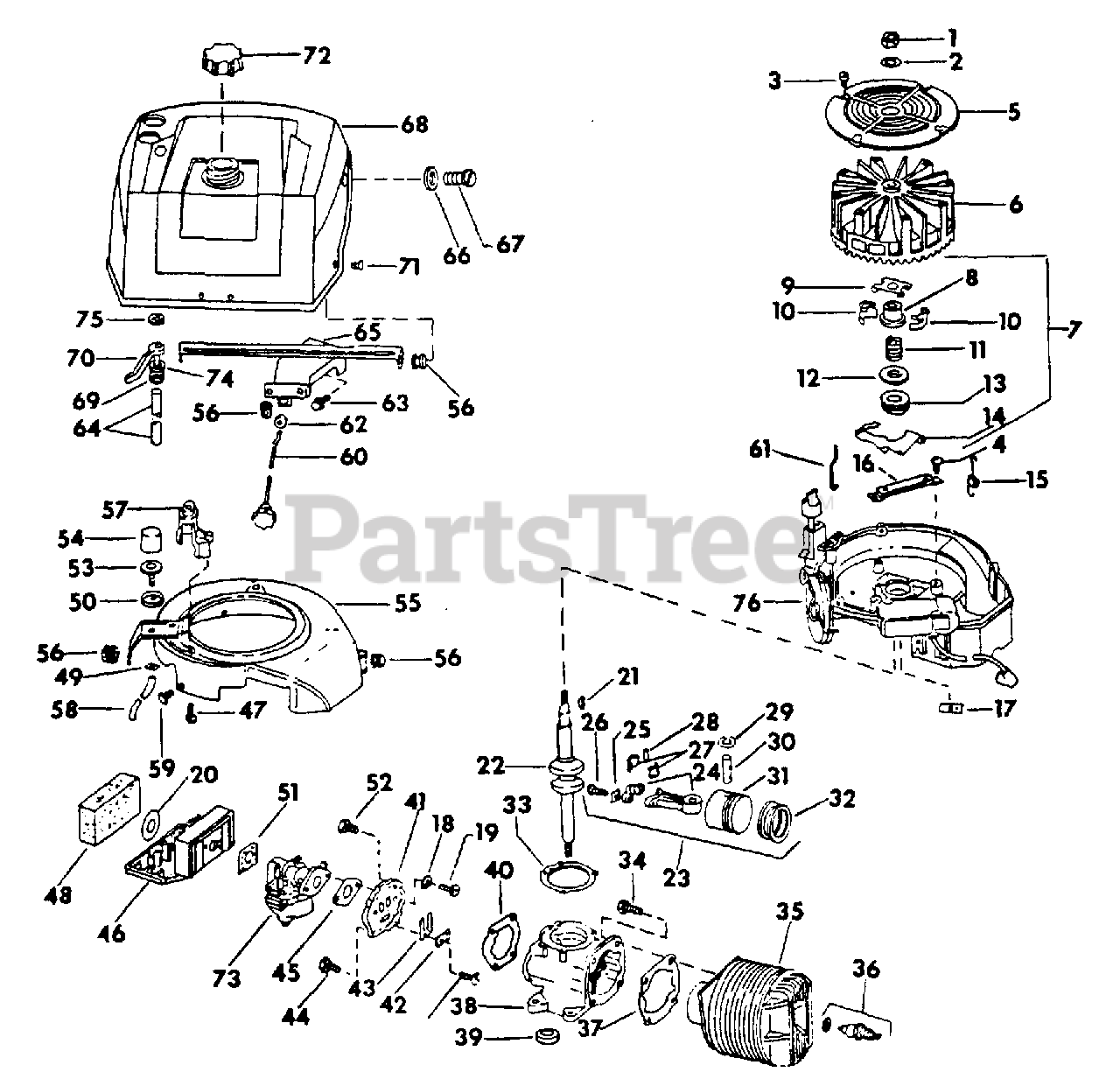

Engine, Governor And Air Cleaner Parts Diagram

  • Title

1

Cub Cadet IH-271506

NUT, 7/16-20 HEX.

$

$

Not available

2

Cub Cadet IH-131718

WASHER, 7/16 ZND INT TOOTH LOCK

$

$

Currently unavailable

3

Cub Cadet IH-544362-R1

SCREW, 10-24 X 1/2 TRUSS-HD REC TAP.

$

$

Currently unavailable

4

Cub Cadet IH-24733-R1

SCREW, 5/16-18 X 1-3/8 ZND HEX-HD CAP

$

$

Currently unavailable

5

Cub Cadet IH-55452-C2

SCREEN, FLYWHEEL

$

$

Currently unavailable

6

Cub Cadet IH-55453-C2

FLYWHEEL

$

$

Currently unavailable

7

Cub Cadet IH-55964-C92

GOVERNOR ASSY

Note: (CONSISTS OF REF. NOS. 8 THRU 14)

$

$

Currently unavailable

8

Cub Cadet IH-544637-R1

COLLAR, GOVERNOR

$

$

Currently unavailable

9

Cub Cadet IH-544638-R1

YOKE, GOVERNOR

$

$

Currently unavailable

10

Cub Cadet IH-544639-R1

WEIGHT, GOVERNOR

$

$

Currently unavailable

11

Cub Cadet IH-544642-R1

SPRING, GOVERNOR

$

$

Currently unavailable

12

Cub Cadet IH-544643-R1

WASHER, THRUST

$

$

Currently unavailable

13

Cub Cadet IH-55454-C2

COLLAR, THRUST

$

$

Currently unavailable

14

Cub Cadet IH-544641-R1

LEVER, GOVERNOR

$

$

Currently unavailable

Cub Cadet IH-453800

SCREW, 10-24 X 3/8 C-Z FIL-HD SLT MACH

$

$

Currently unavailable

15

Cub Cadet IH-55455-C1

SPRING, VARIABLE SPEED

$

$

Currently unavailable

16

Cub Cadet IH-55456-C1

BRACKET, GOVERNOR LEVER

$

$

Currently unavailable

17

Cub Cadet IH-55458-C1

TAB, ROD

$

$

Currently unavailable

Cub Cadet IH-271468

SCREW, 1/4-20 X 3/4 C-Z FIL-HD SLT MACH

$

$

Currently unavailable

18

Cub Cadet IH-544967-R1

WASHER

$

$

Currently unavailable

19

Cub Cadet IH-544966-R1

SCREW

$

$

Currently unavailable

20

Cub Cadet IH-55462-C1

WASHER

$

$

Currently unavailable

21

Cub Cadet IH-544655-R1

KEY, CRANKSHAFT

$

$

Currently unavailable

22

Cub Cadet IH-55463-C1

CRANKSHAFT

$

$

Currently unavailable

23

Cub Cadet IH-545117-R91

PISTON & CONNECTING ROD ASSY

Note: (CONSISTS OF REF. NOS. 24 THRU 32)

$

$

Currently unavailable

24

Cub Cadet IH-545118-R91

ROD ASSY, CONNECTING

$

$

Currently unavailable

25

Cub Cadet IH-545119-R1

LOCKPLATE, SCREW

$

$

Currently unavailable

26

Cub Cadet IH-545135-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

27

Cub Cadet IH-545126-R1

LINER, CONNECTING ROD

$

$

Currently unavailable

28

Cub Cadet IH-545122-R91

BEARING SET, NEEDLE

$

$

Not available

29

Cub Cadet IH-264038-R1

RING, RETAINING

$

$

Currently unavailable

30

Cub Cadet IH-545121-R1

PIN, WRIST

$

$

Currently unavailable

31

Cub Cadet IH-545091-R1

PISTON

$

$

Currently unavailable

32

Cub Cadet IH-545129-R91

RING SET, PISTON -2 RINGS

$

$

Not available

33

Cub Cadet IH-544662-R1

GASKET, CRANKCASE TO ARM PLATE .010

$

$

Not available

34

Cub Cadet IH-544663-R1

SCREW, CYL TO CRANKCASE

$

$

Currently unavailable

35

Cub Cadet IH-55459-C1

CYLINDER

$

$

Currently unavailable

36

Cub Cadet IH-544665-R1

SPARK PLUG & GASKET

Note: (CHAMPION CJ14)

$

$

Not available

37

Cub Cadet IH-544666-R1

GASKET, CYL TO CRANKCASE

$

$

Not available

38

Cub Cadet IH-545094-R91

CRANKCASE & SEAL ASSY

Note: (CONSISTS OF REF NOS 39 THRU 43 AND 52)

$

$

Currently unavailable

39

Cub Cadet IH-544667-R92

SEAL, OIL

$

$

Currently unavailable

40

Cub Cadet IH-544668-R1

GASKET, REED PLATE

$

$

Currently unavailable

41

Cub Cadet IH-545149-R91

REED PLATE ASSY

$

$

Currently unavailable

Cub Cadet IH-451785

SCREW, 6-32 X 1/4 C-Z SLT-BD-HD MACH

$

$

Currently unavailable

42

Cub Cadet IH-544670-R1

PLATE, BACKUP

$

$

Currently unavailable

43

Cub Cadet IH-544671-R1

REED

$

$

Currently unavailable

44

Cub Cadet IH-545151-R1

SCREW, HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

45

Cub Cadet IH-544673-R1

GASKET, CARBURETOR

$

$

Currently unavailable

46

Cub Cadet IH-55460-C1

FILTER ASSY, AIR

$

$

Not available

Cub Cadet IH-25634-R1

SCREW, 8-32 X 9/16 C-Z PAN-HD SLT LOCK-WASHER

$

$

Currently unavailable

47

Cub Cadet IH-55465-C1

SCREW

$

$

Currently unavailable

48

Cub Cadet IH-55461-C1

ELEMENT, FILTER

$

$

Not available

49

Cub Cadet IH-55466-C1

FASTENER

$

$

Currently unavailable

50

Cub Cadet IH-55467-C1

CAP

$

$

Currently unavailable

51

Cub Cadet IH-55599-C1

GASKET

$

$

Currently unavailable

52

Cub Cadet IH-544677-R1

SCREW, HH REED PLATE TO CRANKCASE

$

$

Currently unavailable

53

Cub Cadet IH-55525-C1

BASE

$

$

Not available

54

Cub Cadet IH-55600-C1

BULB, PRIMER

$

$

Not available

55

Cub Cadet IH-55464-C91

BAFFLE ASSY AIR

Note: (CONSISTS OF REF NOS 47, 49, 50, 53, 54 AND 57)

$

$

Currently unavailable

56

Cub Cadet IH-544680-R1

GROMMET

$

$

Currently unavailable

57

Cub Cadet IH-55468-C1

BRACKET & EYELET

$

$

Currently unavailable

58

Cub Cadet IH-55496-C1

TUBING

$

$

Not available

59

Cub Cadet IH-55469-C1

SCREW

$

$

Currently unavailable

60

Cub Cadet IH-55470-C1

KNOB & ROD

$

$

Currently unavailable

61

Cub Cadet IH-55457-C1

ROD, GOVERNOR

$

$

Currently unavailable

62

Cub Cadet IH-55471-C1

GROMMET

$

$

Currently unavailable

63

Cub Cadet IH-545151-R1

SCREW

$

$

Currently unavailable

64

Cub Cadet IH-55473-C1

LINE, FUEL

$

$

Currently unavailable

65

Cub Cadet IH-55474-C1

BRACKET, SHROUD

$

$

Currently unavailable

66

Cub Cadet IH-426152-C1

WASHER

$

$

Currently unavailable

67

Cub Cadet IH-55601-C1

SCREW

$

$

Currently unavailable

68

Cub Cadet IH-55476-C91

SHROUD, TANK & VALVE ASSY

Note: (CONSISTS OF REF NOS 69, 70, 74 AND 75)

$

$

Currently unavailable

69

Cub Cadet IH-55477-C1

CLIP, SPRING

$

$

Currently unavailable

70

Cub Cadet IH-55478-C1

STEM

$

$

Not available

71

Cub Cadet IH-544695-R1

SCREW, COVER MTG

$

$

Currently unavailable

72

Cub Cadet IH-55475-C1

CAP, GAS

$

$

Not available

73

CARBURETOR ASSY

Note: (SEE "CARBURETOR" ILLUSTRATION AND PARTS LIST)

$

$

Not available

74

Cub Cadet IH-55479-C1

WASHER

$

$

Not available

75

Cub Cadet IH-55480-C1

GASKET

$

$

Not available

76

MAGNETO ASSY

Note: (SEE "MAGNETO AND STARTER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

Cub Cadet IH-55605-C91

ENGINE, IH 600

Note: (CONSISTS OF THE FOLLOWING 5 ITEMS)

$

$

Currently unavailable

ENGINE, BASIC

$

$

Not available

CARBURETOR

$

$

Not available

FLYWHEEL

$

$

Not available

ARMATURE PLATE

$

$

Not available

FUEL TANK & COVER

$

$

Not available

Cub Cadet IH-55965-C91

BLOCK, SHORT

Note: (CONSISTS OF THE FOLLOWING 5 ITEMS)

$

$

Currently unavailable

BLOCK ASSY

$

$

Not available

CARBURETOR GASKET

$

$

Not available

CRANKCASE TO ARM PLATE GASKET

$

$

Not available

REED PLATE TO CRANKCASE GASKET

$

$

Not available

EXHAUST GASKET

$

$

Not available
