3310 V (990653) - Simplicity Landlord Garden Tractor FRAME, HOOD, GRILL, & INST. PANEL Parts Diagram

Landlord Garden Tractor

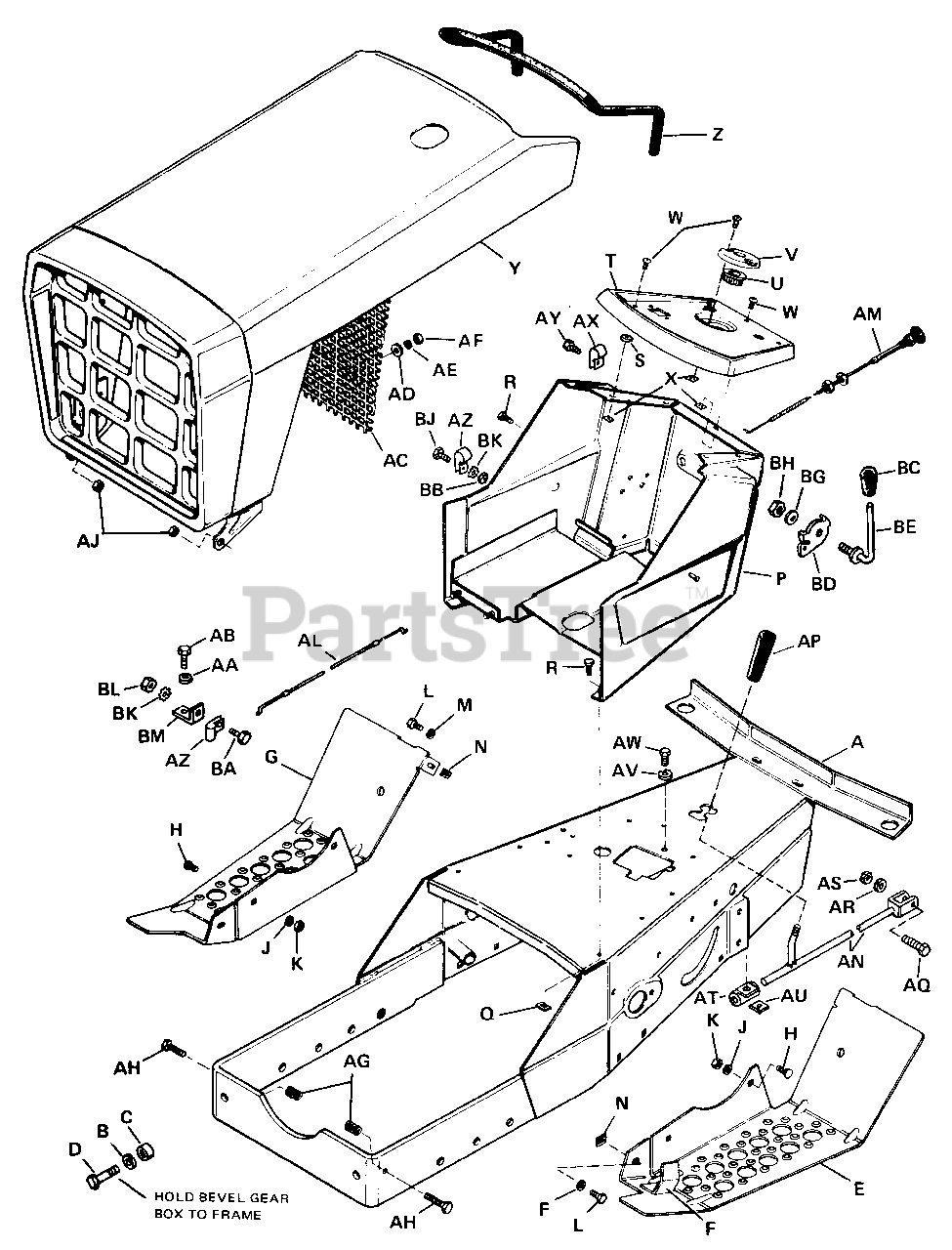

FRAME, HOOD, GRILL, & INST. PANEL Parts Diagram

  • Title

A

Simplicity 170733

Frame Assy.

$

$

Not available

B

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

C

Simplicity 2108419

Bushing

$

$

Not available

D

Simplicity 705039

Hex Cap Screw, 7/16"-14 N.C. x 1-1/2"

$6.99

$

In Stock, only 2 left!

0

E

Simplicity 171271

Foot Rest R.H.

$

$

Not available

F

Simplicity 172265

Guard Assy.

$

$

Not available

G

Simplicity 171272

Foot Rest L.H.

$

$

Not available

H

Simplicity 2702015

Carriage, Bolt, 5/16"-16 N.C. x 3/4"

$

$

Not available

J

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

K

Simplicity 2717001

Hex Nut, Full, 5/16"-18 N.C.

$

$

Not available

L

Simplicity 2705017

Hex Cap Screw 5/16"-18 N.C. x 3/4"

$

$

Not available

M

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

N

Simplicity 2718024

Nut, Tinnerman, 5/16"-18 N.C.

$

$

Not available

P

Simplicity 171266

Dash Assy.

$

$

Not available

Q

Simplicity 718038

Nut, Tinnerman

$

$

Not available

R

Simplicity 2714031

Hex Head Self Tapping Screw, No. 14 AB x 3/4"

$

$

Not available

S

Simplicity 2719007

Plain Washer

$

$

Not available

T

Simplicity 171231

Panel, Instrument

$

$

Not available

U

Simplicity 2157077SM

Bushing, Steering

$140.99

$

Usually ships in 2-12 days

0

V

Simplicity 2172008SM

Plate, Steering Adj.
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

W

Simplicity 2711002

Round Head Phillips Screw, 1/4" 20 N.C. x 1/2"

$

$

Not available

X

Simplicity 2718043

Nut, Tinnerman, 1/4"-20 N.C.

$

$

Not available

Y

Simplicity 171226

Grille & Hood Assy.

$

$

Not available

Z

Simplicity 2172935

Molding, Hood

$

$

Not available

AA

Simplicity 2720003

Lock Washer

$

$

Not available

AB

Simplicity 2714021

Self Tapping Rec. Hex. Hd. Screw

$

$

Not available

AC

Simplicity 171232

Screen, Grille

$

$

Not available

AD

Simplicity 2172742

Washer

$

$

Not available

AE

Simplicity 2721003

Lock Washer, Shakeproof No. 10

$

$

Not available

AF

Simplicity 2717023

Nut, Hex Full, No. 10-24 N.F.

$

$

Not available

AG

Simplicity 1729278SM

Spring

$2.49

$

Usually ships in 2-12 days

0

AH

Simplicity 2705009

Hex Cap Screw, 3/8"-16 N.C. x 1-1/2"

$

$

Not available

AJ

Simplicity 2717510

Hex Lock Nut, Center, 3/8"-16 N.C.

$

$

Not available

AL

Simplicity 2171355SM

Throttle Control

$42.99

$

Usually ships in 2-12 days

0

AM

Simplicity 2171334

Choke Control

$

$

Not available

AN

Simplicity 171559

Rod Assy. Shifter

$

$

Not available

AP

Simplicity 2164180

Handle

$

$

Not available

AQ

Simplicity 2715026

Hex Capscrew, 5/16"-18 N.C. x 1-1/2" SAE Grade 8

$

$

Not available

AR

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AS

Simplicity 2717001

Full Hex Nut, 5/16"-18 N.C.

$

$

Not available

AT

Simplicity 157020

Guide Assy. Shift Rod

$

$

Not available

AU

Simplicity 2718032

Nut, Retainer

$

$

Not available

AV

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AW

Simplicity 2715018

Hex Capscrew, 1/4"-20 N.C. x 5/8" SAE Grade 5

$

$

Not available

AX

Simplicity 2158475SM

Clip, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

AY

Simplicity 714005

Self Tapping Screw Rd. H., No. 10-24 N.C. x 1/2"

$

$

Not available

AZ

Simplicity 2158475SM

Clip, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

BA

Simplicity 710004

Screw Mach. Rd. Hd., No. 10-32 N.F. x 3/8"

$3.99

$

In Stock, only 1 left!

0

BB

Simplicity 2717007

Full Hex Nut, No. 10-32 N.F.

$

$

Not available

BC

Simplicity 2172040

Throttle Handle

$

$

Not available

BD

Simplicity 2103280SM

Stop Throttle

$

$

Not available

BE

Simplicity 2158424

Arm Throttle

$

$

Not available

BF

Simplicity 2159134

Washer

$

$

Not available

BG

Simplicity 2721602

Washer Lock Dished Type, 3/8"

$

$

Not available

BH

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16 N.C.

$

$

Not available

BJ

Simplicity 710002

Screw Rd. Hd. Mach, No. 10-32 N.F. x 1/2"

$

$

Not available

BK

Simplicity 2721003

Washer, External No. 10 Shakeproof

$

$

Not available

BL

Simplicity 2717007

Full Hex Nut, No. 10-32 N.F.

$

$

Not available

BM

Simplicity 157315

Bracket, Throttle Cable

$

$

Not available
