3310 (31AH95P6766) - Troy-Bilt Polar Blast 33" Snow Thrower (2015) Handles, Panel & Discharge Chute Parts Diagram

Polar Blast 33" Snow Thrower

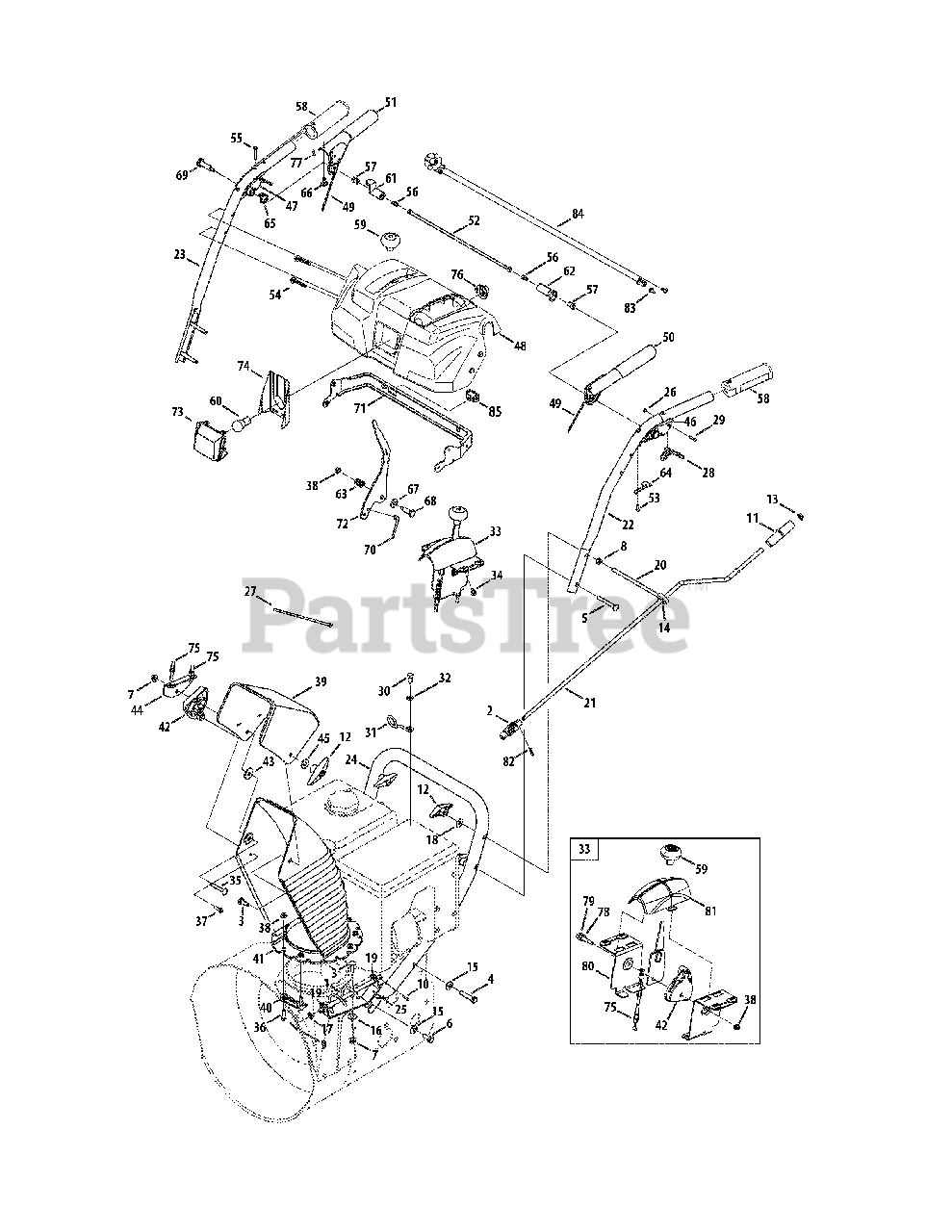

Handles, Panel & Discharge Chute Parts Diagram

  • Title

1

Troy-Bilt 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 12

0

4

Troy-Bilt 710-04682

Screw, Hex, 3/8-16 x 2.00 Lock

$5.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0572

Screw, Carriage, 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-3118

Screw, Hex, 3/8-16 x 1.0 Lock, Gr5

$5.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-04040

Pin, Bow-tie Cotter

$1.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 715-04095

Spring Pin

$5.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 920-0284

Wing Knob
(Superseded to 720-0284)

$

$

Not available

13

Troy-Bilt 926-0100

Cap, Push, 3/8
(Superseded to 726-0100)

$

$

Not available

14

Troy-Bilt 735-0234

Grommet, Rubber

$5.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 736-0105

Washer, Bel, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

17

Troy-Bilt 936-0185

Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 941-0475

Plastic Bushing, .380 I.D.

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 747-04747

Eye Bolt

$12.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 747-04925A-0637

Chute Rod

$38.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 749-04675-0638

Handle, Upper - LH
(Superseded to 749-04675-0637)

$51.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 749-04674-0638

Handle, Upper - RH
(Superseded to 749-04674-0637)

$51.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 749-0991-0638

Handle, Lower

$68.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 790-00329-0637

Chute Crank Bracket

$16.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 716-04036

Ring, Retainer

$6.49

$

In Stock, Qty 6

0

27

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 731-06113

Trigger

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 17

0

30

Troy-Bilt 710-1681

Hex Head Screw, MB 1.25

$5.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 984-04230

2-Way Chute Control™ Assy

$134.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 710-04187A

Hi-Lo Screw, 1/4-15 x 0.5

$6.99

$

In Stock, Qty 7

0

35

Troy-Bilt 710-0458

Bolt, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

37

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

38

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-0846C

Upper Chute

$52.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 8

0

42

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 936-0231

Flat Washer
(Superseded to 736-0231)

$

$

Not available

44

Troy-Bilt 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

46

Troy-Bilt 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 631-04134B

Handle Clutch Lock - RH

$15.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 931-04181A

Handle Panel

$59.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 646-0012

Cable Assembly, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 684-04105C

Handle Engage Assy - LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 684-04106C

Handle Engage Assy - RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 684-04250

Rod Ass’y, Clutch Lock Pivot

$12.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

54

Troy-Bilt 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

56

Troy-Bilt 710-3069

Screw, 1/4-20 x.375

$4.99

$

In Stock, Qty 10

0

57

Troy-Bilt 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, only 2 left!

0

58

Troy-Bilt 925-06107

Heated Grip

$78.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 925-1629

Lamp

$11.99

$

In Stock, Qty 14

0

61

Troy-Bilt 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

62

Troy-Bilt 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

63

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

64

Troy-Bilt 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 732-04238B

Torsion Spring

$5.49

$

In Stock, Qty 11

0

66

Troy-Bilt 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

67

Troy-Bilt 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

68

Troy-Bilt 738-04125

Shoulder Screw

$4.99

$

In Stock, only 4 left!

0

69

Troy-Bilt 738-04348

Shoulder Screw, 1/4-20 x 1.345

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 746-04341

Speed Selector Cable

$25.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 790-00248C

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Troy-Bilt 790-00248C-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

72

Troy-Bilt 790-00281B

Shift Lever

Variations

Troy-Bilt 790-00281B-0637

LEVER-SHIFT 700/90 - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 731-05319

Lens Panel

$13.99

$

In Stock, only 4 left!

0

74

Troy-Bilt 777X41805

Reflector Label

$9.49

$

In Stock, only 4 left!

0

75

Troy-Bilt 746-04338

Cable, Chute Tilt
(Superseded to 946-04338)

$56.99

$

In Stock, only 2 left!

0

76

Troy-Bilt 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 6

0

78

Troy-Bilt 736-0413

Washer, Spring, .39 x .625 x .012

$6.99

$

In Stock, only 2 left!

0

79

Troy-Bilt 738-04185

Screw, Shoulder, .31 x .995:1/4-20

$8.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt 790-00200A-0637

Bracket, Mounting

$18.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 731-05307

Cover, Tilt Cover

$11.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

83

Troy-Bilt 710-0599

1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 725-05148

Wire Harness

$69.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0
