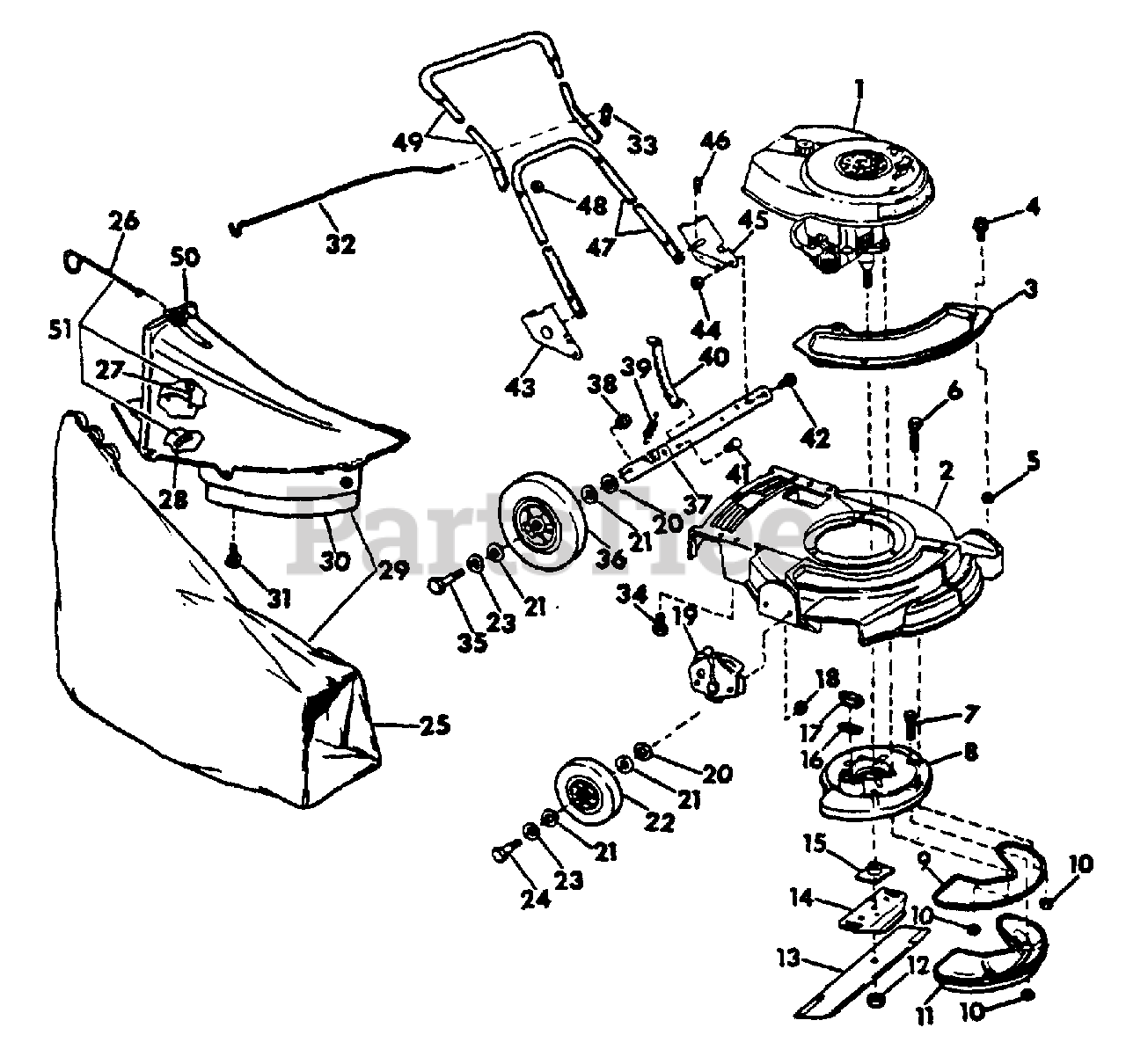

331 - International Harvester 19" Push Walk-Behind Mower (1971) Frame, Blades And Wheels Parts Diagram

19" Push Walk-Behind Mower

Frame, Blades And Wheels Parts Diagram

  • Title
1

ENGINE, IH

Note: (SEE "ENGINE, GOVERNOR AND AIR CLEANER" ILLUSTRATION AND PARTS LIST)

$

$

Not available

2

Cub Cadet IH-544955-R91

HOUSING & GROMMET ASSY. 19 IN.

$

$

Currently unavailable

Cub Cadet IH-24644-R1

SCREW, 5/16-18 X 1-5/8 TYPE 8 HEX-HD CAP

Note: (CRANKCASE TO MUFFLER PLATE)

$

$

Currently unavailable

3

Cub Cadet IH-545157-R1

COVER, CHUTE OPENING

$

$

Currently unavailable

4

Cub Cadet IH-544346-R1

SCREW, HEX-HD

$

$

Currently unavailable

5

Cub Cadet IH-540590-R1

NUT, GROMMET

$

$

Currently unavailable

6

Cub Cadet IH-544286-R1

SCREW, MUFFLER PLATE TO HSG

$

$

Currently unavailable

7

Cub Cadet IH-544287-R1

SCREW, MUFFLER TO MUFFLER PLATE

$

$

Currently unavailable

8

Cub Cadet IH-544288-R2

PLATE W/SCREW, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-180085

BOLT, 5/16 X 1-3/4 TYPE 5

$

$

Currently unavailable

9

Cub Cadet IH-544289-R1

GASKET, MUFFLER

$

$

Currently unavailable

10

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-273924

NUT, 1/4-20 CAD TORQUE HEX.

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Cub Cadet IH-544294-R1

BLADE. 19 IN.

$

$

Currently unavailable

14

Cub Cadet IH-544295-R1

STIFFENER, BLADE

$

$

Currently unavailable

15

Cub Cadet IH-544297-R1

COLLAR & PLATE

$

$

Currently unavailable

16

Cub Cadet IH-544298-R1

GASKET, EXHAUST

$

$

Not available

17

Cub Cadet IH-544299-R1

SLEEVE, EXHAUST GASKET

$

$

Currently unavailable

18

Cub Cadet IH-544290-R1

NUT, HEIGHT ADJ MTG

$

$

Currently unavailable

19

Cub Cadet IH-544301-R1

ADJUSTMENT, HEIGHT

$

$

Currently unavailable

Cub Cadet IH-454869

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

$

$

Currently unavailable

21

Cub Cadet IH-544304-R1

WASHER, FELT

$

$

Currently unavailable

22

Cub Cadet IH-544305-R1

WHEEL & TIRE, 6 IN.

$

$

Not available

23

Cub Cadet IH-544306-R1

WASHER, WHEEL BOLT HD

$

$

Currently unavailable

24

Cub Cadet IH-544307-R1

BOLT, WHEEL FRT SHOULDER
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

25

$

$

Not available

26

GUARD, WHEEL

Note: ORDER IH-545133-R91

$

$

Not available

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Cub Cadet IH-545088-R91

CHUTE ASSY

Note: (CONSISTS OF REF. NOS. 25, 30 & 32)

$

$

Currently unavailable

$

$

Not available

Cub Cadet IH-453996

NUT, 8-32 CAD HEX-MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-25633-R1

SCREW, 8-32 X 7/16 C-Z PAN-HD SLT MACH

$

$

Currently unavailable

30

SKIRT ASSY, CHUTE

Note: (NOT SERVICED SEPARATELY ORDER CHUTE, IH-545088-R91)

$

$

Not available

31

$

$

Currently unavailable

32

Cub Cadet IH-544312-R1

ROD, GRASS BAR

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Cub Cadet IH-544315-R1

SCREW, HANDLE BRACKET

$

$

Currently unavailable

35

Cub Cadet IH-544317-R1

BOLT, REAR WHEEL

$

$

Currently unavailable

36

Cub Cadet IH-544318-R91

WHEEL & TIRE, 8 IN.

$

$

Not available

$

$

Currently unavailable

38

Cub Cadet IH-544322-R1

NUT, REAR WHEEL BOLT

$

$

Currently unavailable

39

Cub Cadet IH-544323-R1

SPRING, HEIGHT ADJ

$

$

Currently unavailable

40

Cub Cadet IH-544325-R1

LEVER, HEIGHT ADJ REAR

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT.
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

$

$

Currently unavailable

43

Cub Cadet IH-55416-C1

BRACKET, HANDLE RH

Note: (REPLACES 545 108 R1)

$

$

Currently unavailable

44

Cub Cadet IH-544290-R1

NUT, WHEEL LEVER BOLT

$

$

Currently unavailable

45

Cub Cadet IH-55415-C1

BRACKET, HANDLE LH

Note: (REPLACES 545 107 R1)

$

$

Currently unavailable

46

$

$

Currently unavailable

47

Cub Cadet IH-544345-R1

HANDLE, BOTTOM

$

$

Currently unavailable

48

Cub Cadet IH-378531-R1

NUT, CENTERLOCK

$

$

Currently unavailable

Cub Cadet IH-180018

SCREW, 1/4-20 X 5/8 ZND HEX-HD CAP HANDLE
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet IH-545103-R1

HANDLE GRIP, TOP

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Cub Cadet IH-545113-R91

GUARD ASSY, WHEEL

$

$

Currently unavailable

Cub Cadet IH-59360-C91

PARTS ACCESSORY, LEAF BAG

$

$

Currently unavailable

Cub Cadet IH-59257-C1

PARTS ACCESSORY, DELUXE GRASS BAG

$

$

Not available

$

$
