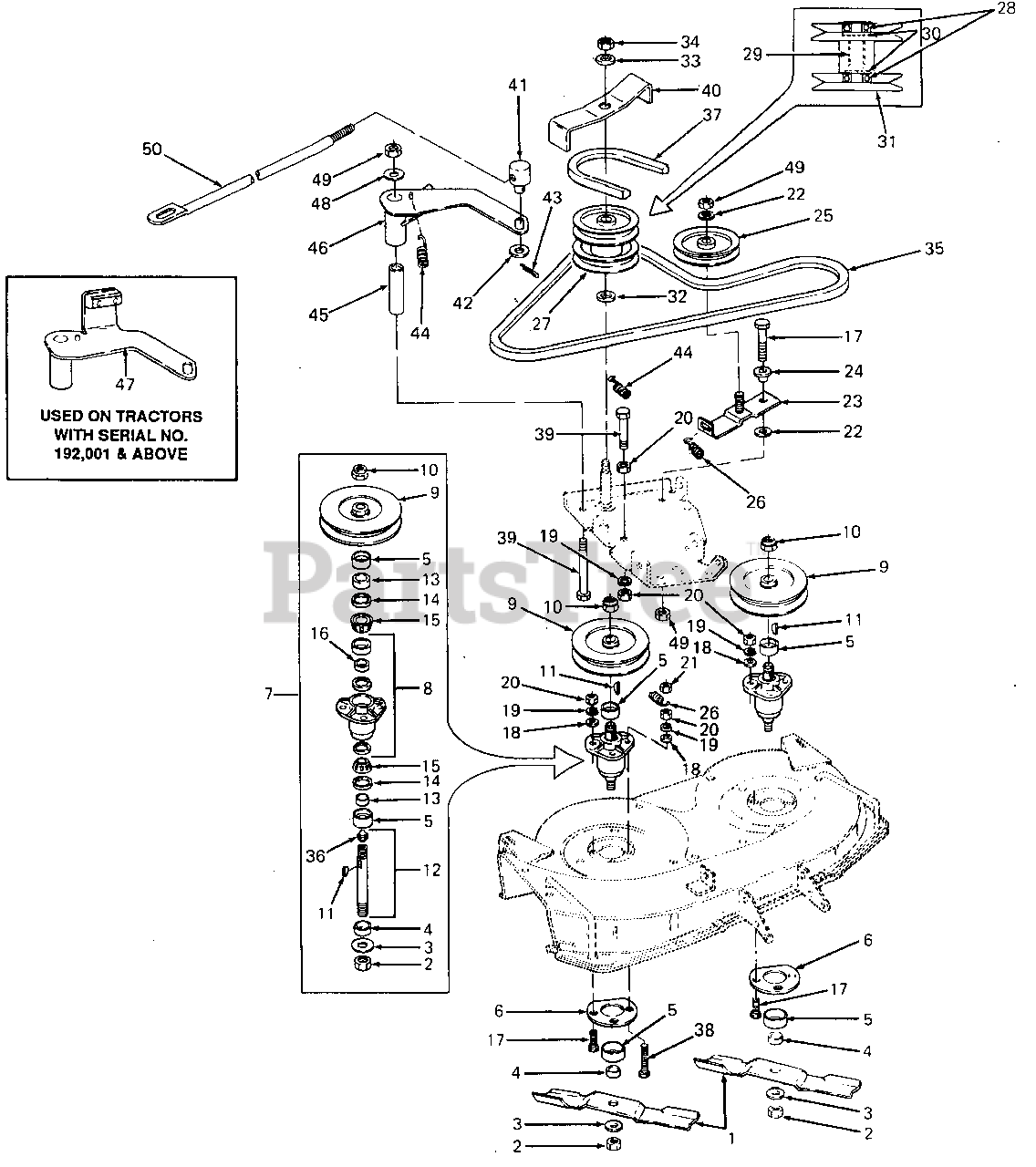

331 (190-331-100) - Cub Cadet 38" Mower Deck, Manual PTO att Spindles, Pulleys & Blades Parts Diagram

38" Mower Deck, Manual PTO

Spindles, Pulleys & Blades Parts Diagram

  • Title

1

Cub Cadet 742-3009

Blade, Low Lift, 19.38 Lg
(Superseded to 759-3817)

$27.99

$

In Stock, Qty 15

0

Cub Cadet 759-3395

Blade, Hard Coated Low Lift, 19.38 Lg
(Superseded to 759-3831)

$

$

Not available

Cub Cadet 742-3008

Blade, Bagging, 19.38 Lg
(Superseded to 759-3816)

$34.99

$

In Stock, Qty 14

0

Cub Cadet 759-3396

Blade, Hard Coated Bagging, 19.38 Lg
(Superseded to 759-3832)

$44.99

$

In Stock, Qty 5

0

2

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

3

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk HDN

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 748-3020

Spacer, Blade
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

5

Cub Cadet 703-1387

Cup, Spindle HDN
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

6

Cub Cadet 703-1650

Plate, Spindle Mounting

$

$

Not available

7

Cub Cadet 759-3294

Spindle Service Kit
(Superseded to 759-3294P)

Note: (Includes Mounting Hardware)

$365.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$

$

Not available

9

Cub Cadet 756-3008

4L V-Pulley, 4.62 OD X 0.75 ID

$53.99

$

In Stock, Qty 6

0

10

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16

$4.99

$

In Stock, Qty 7

0

11

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, only 3 left!

0

13

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

16

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 GR5

$3.99

$

In Stock, Qty 10

0

18

Cub Cadet 736-0258

Washer, Flat, .378 X 1.0 X .127 Thk

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet 736-0267

Washer, Flat, .385 X .88 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 703-1416

Bracket, Idler
(Superseded to 703-1416A-0716)

$

$

Not available

24

Cub Cadet 711-3223

Spacer, Shld

$

$

Not available

25

Cub Cadet 756-3005

Pulley, Flat Idler

$45.99

$

In Stock, Qty 20+

0

26

Cub Cadet 732-3055

Spring, Extension, .62 OD X 5.50 Lg
(Superseded to 932-3055)

$16.99

$

In Stock, only 2 left!

0

27

Cub Cadet 703-1298

Pulley Assy, Double
(Superseded to 759-3651)

Note: [Order 759-3651 which includes Ref No. 28 (Qty 2), 29, 30 (Qty 2) & 31]

$259.99

$

In Stock, only 4 left!

0

28

Cub Cadet 741-0155

Bearing, Ball, .62 ID X 1.38 OD X .44 Thk
(Superseded to 941-0155)

Note: (Used in 703-1298 Pulley Assy)

$23.99

$

In Stock, Qty 15

0

Cub Cadet 741-0524

Bearing, Ball, .62 ID X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

Note: (Used in 759-3651 Pulley Assy)

$23.99

$

In Stock, Qty 20+

0

29

Cub Cadet 750-3043

Spacer, Pulley, .64 ID X .81 OD X 2.25 Lg

Note: (Used in 703-1298 Pulley Assy)

$

$

Not available

Cub Cadet 750-3070

Spacer, Pulley, .64 ID X .88 OD X 2.15 Lg

Note: (Used in 759-3651 Pulley Assy)

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

Note: (Used in 759-3651 Pulley Assy)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 756-3051

Pulley, Double
(Superseded to 956-3051)

Note: (Used in 759-3651 Pulley Assy)

$150.99

$

In Stock, Qty 7

0

32

Cub Cadet 736-0290

Washer, Flat, .625 ID X 1.0 OD X .06 Thk HDN

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-3087

Washer, Flat, .510 ID X 1.12 OD X .100 Thk HDN

$

$

Not available

34

Cub Cadet 712-0200A

Nut, Hex Patch Jam, 1/2-20

$4.49

$

In Stock, only 1 left!

0

35

Cub Cadet 754-3036

V-Belt, 1/2 X 63" Lg - A Full
(Superseded to 954-3036)

$36.99

$

In Stock, only 3 left!

0

36

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 754-3038

V-Belt, PTO Drive
(Superseded to 954-3038)

$32.99

$

In Stock, only 3 left!

0

38

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 X 2.5 Lg GR5

$6.99

$

In Stock, Qty 16

0

40

Cub Cadet 703-1783

Guard, Belt

$

$

Currently unavailable

41

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

42

Cub Cadet 736-0159

Washer, Flat, .406 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 714-0507

Pin, Cottter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 732-0581

Spring, Extension, .75 OD X 5.31 Lg
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

45

Cub Cadet 750-0275

Tube, Spacer

$

$

Not available

46

Cub Cadet 703-1782

Arm, Brake
(Superseded to 703-1782-0499)

Note: (Used on Tractors w/Serial No. 192,000 & below)

Variations

Cub Cadet 703-1782-0499

ARM ASSY-BRAKE - CUB BEIGE (0499)

$138.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 703-2074

Arm Assy, Brake

Note: (Used on Tractors w/Serial No. 192,001 & above)

$

$

Not available

48

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

50

Cub Cadet 747-3135

Rod, Deck Brake

$59.99

$

In Stock, only 1 left!

0
