33006 (1000) - Lawn-Boy Insight Snow Thrower (SN: 260000001 - 260999999) (2006) FLYWHEEL, BLOWER HOUSING, AND STARTER ASSEMBLIES BRIGGS AND STRATTON 084233-0198-E1 Parts Diagram

Insight Snow Thrower

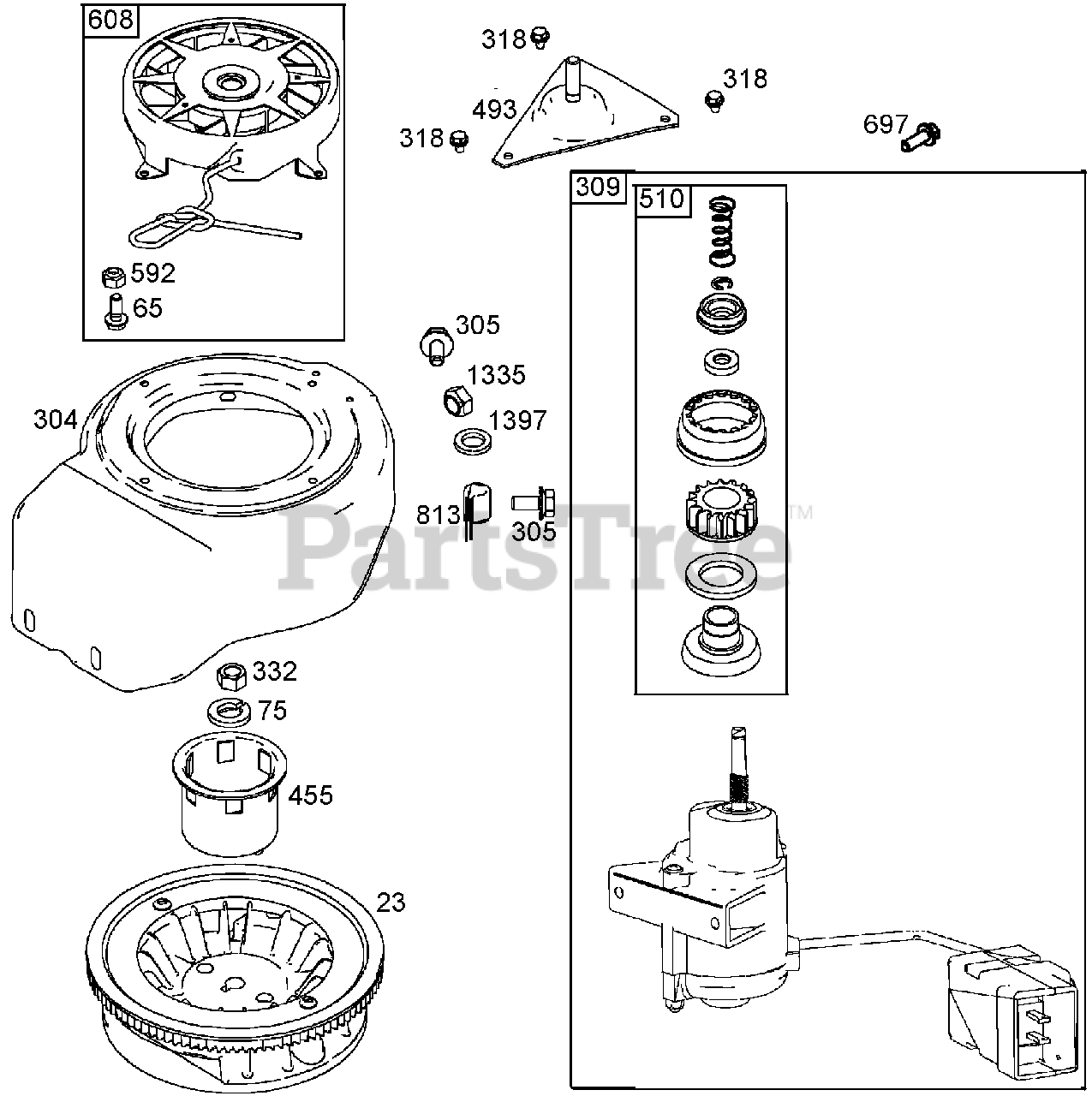

FLYWHEEL, BLOWER HOUSING, AND STARTER ASSEMBLIES BRIGGS AND STRATTON 084233-0198-E1 Parts Diagram

  • Title
23

Lawn-Boy 801246

Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

65

Lawn-Boy 801243

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

75

Lawn-Boy 801237

Washer

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

304

Lawn-Boy 801236

Housing-Blower

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

305

Lawn-Boy 801239

Screw (Blower Housing)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

309

Lawn-Boy 801247

Motor-Starter

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

318

Lawn-Boy 801241

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

332

Lawn-Boy 801238

Nut

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

455

Lawn-Boy 801235

Cup-Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

493

Lawn-Boy 801240

Bracket-Mounting

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

510

Lawn-Boy 801293

Drive-Starter

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

592

Lawn-Boy 801244

Nut

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

608

Lawn-Boy 801242

Starter-Rewind

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

697

Lawn-Boy 801248

Screw (Starter Motor)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

813

Lawn-Boy 801249

Clamp

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1335

Lawn-Boy 801269

Nut (Blower Housing)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1397

Lawn-Boy 801270

Washer

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
