33005 (1000) - Lawn-Boy Insight Snow Thrower (SN: 270000001 - 270999999) (2007) ROTOR HOUSING AND SCRAPER ASSEMBLY Parts Diagram

Insight Snow Thrower

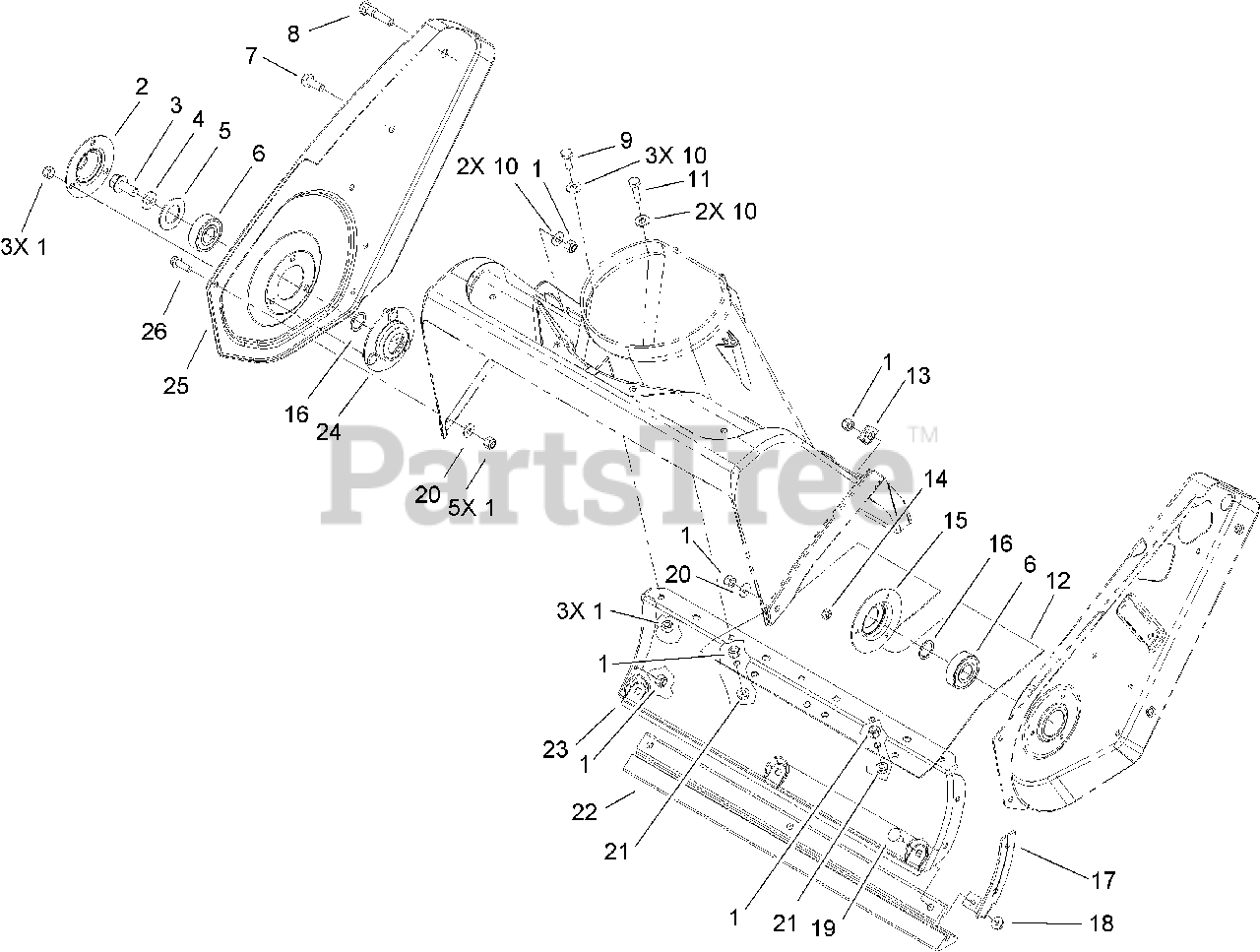

ROTOR HOUSING AND SCRAPER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 52-7290-03

RETAINER-BEARING

$23.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 52-7270

WASHER-RUBBER

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 55-9512

COVER-BOTTOM

$21.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 55-9430

BRACKET-HOUSING

$7.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 38-8620

FLANGE-BEARING

$

$

Not available

16

Lawn-Boy 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 56-2610

BRACKET-HOUSING, LOWER

$21.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 55-8760

SCRAPER

$33.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 105-1967-03

HOUSING-LOWER
(Superseded to 119-1551)

$86.99

$

In Stock, Qty 5

0

24

Lawn-Boy 52-9110

FLANGE-BEARING

$24.99

$

In Stock, only 4 left!

0

25

Lawn-Boy 105-1952-03

SIDEPLATE-RIGHT

$

$

Not available

26

Lawn-Boy 32105-15

SCREW

$2.99

$

In Stock, Qty 20+

0
