33005 (1000) - Lawn-Boy Insight Snow Thrower (SN: 270000001 - 270999999) (2007) HANDLE ASSEMBLY Parts Diagram

Insight Snow Thrower

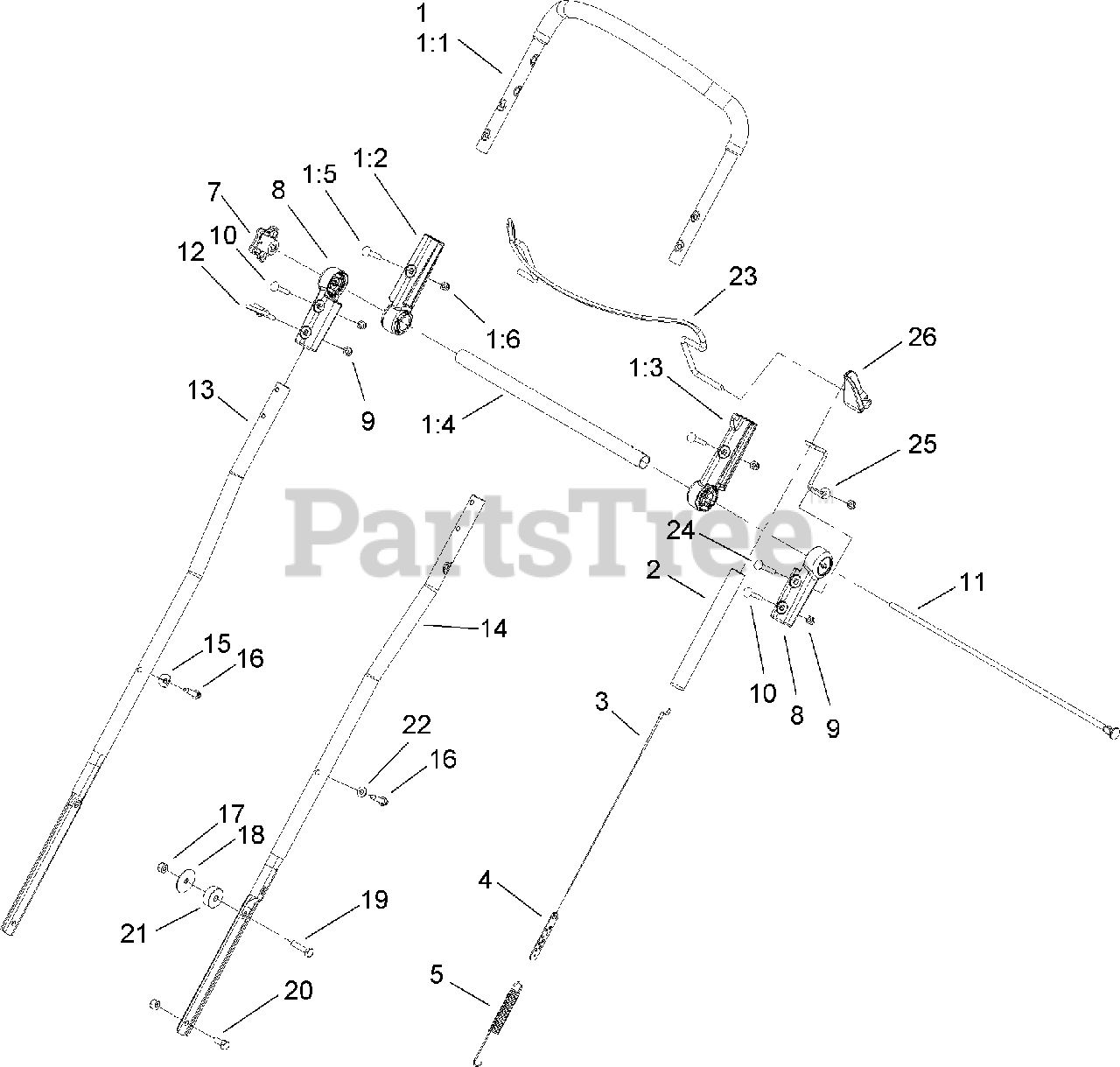

HANDLE ASSEMBLY Parts Diagram

  • Title
1

UPPER HANDLE ASM

Note: Not serviced separately

$

$

Not available

1:1

Lawn-Boy 110-1752

HANDLE ASM

$

$

Not available

1:2

Lawn-Boy 110-1770

MOUNT-HANDLE, RH

$19.99

$

In Stock, only 1 left!

0

1:3

Lawn-Boy 110-1769

MOUNT-HANDLE, LH

$

$

Not available

1:4

$25.99

$

Usually ships in 3-6 days

0

1:5

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

1:6

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 71-5530

COVER-SPRING

$5.49

$

In Stock, Qty 10

0

3

Lawn-Boy 55-9322

CABLE-CLUTCH

$11.99

$

In Stock, Qty 7

0

4

Lawn-Boy 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 12

0

5

Lawn-Boy 110-2181

SPRING-EXTENSION

$9.49

$

In Stock, only 4 left!

0

$3.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 107-3865

MOUNT-HANDLE, LOWER

$12.99

$

In Stock, Qty 8

0

9

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 107-3871

ROD-THREADED

$19.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, only 3 left!

0

13

Lawn-Boy 110-2150-03

HANDLE-LOWER, RH

$

$

Not available

14

Lawn-Boy 110-2164-03

HANDLE-LOWER, LH

$

$

Not available

15

$6.49

$

In Stock, Qty 14

0

16

Lawn-Boy 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

$5.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

$

$

Not available

24

Lawn-Boy 3229-29

SCREW-CARR

$

$

Not available

25

Lawn-Boy 110-1840

GUIDE-ROPE

$

$

Not available

26

Lawn-Boy 107-3943

STOP-BAIL
(Superseded to 112-8764)

$4.99

$

In Stock, only 1 left!

0
