33005 (1000) - Lawn-Boy Insight Snow Thrower (SN: 260000001 - 260999999) (2006) CHUTE ASSEMBLY Parts Diagram

Insight Snow Thrower

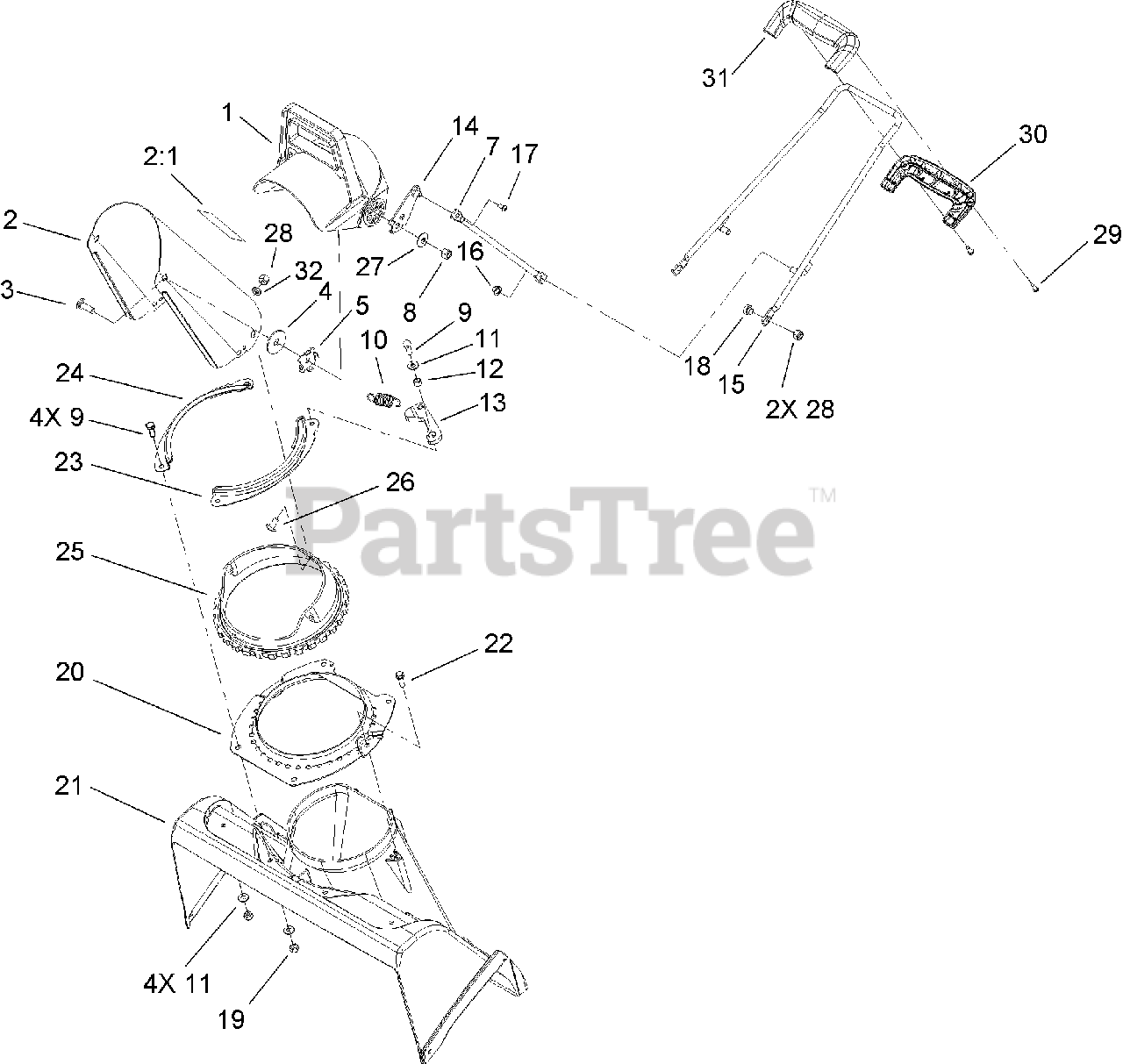

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 104-4115

CHUTE ASM

$68.99

$

In Stock, only 1 left!

0

2:1

Lawn-Boy 104-4135

DECAL-DANGER

$5.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

5

Lawn-Boy 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 110-2154

ROD-SUPPORT

$

$

Not available

8

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 8

0

11

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

13

$12.99

$

In Stock, Qty 10

0

14

Lawn-Boy 110-2157

PIVOT ARM ASM

$

$

Not available

15

Lawn-Boy 110-2155

CHUTE HANDLE ASM

$

$

Not available

16

Lawn-Boy 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3251-1

SCREW-PPH

$11.99

$

In Stock, Qty 6

0

18

Lawn-Boy 110-2158

SPACER-FLANGED

$6.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

21

Lawn-Boy 105-1950

HOUSING-ROTOR, UPPER

$147.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 71-4980-03

RETAINER-CHUTE, LH

$

$

Not available

24

Lawn-Boy 71-4990-03

RETAINER-CHUTE, RH

$

$

Not available

25

Lawn-Boy 104-2763

RING-GEAR, CHUTE

$47.99

$

In Stock, Qty 7

0

26

Lawn-Boy 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

27

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 110-3419

HANDLE-BOTTOM

$

$

Not available

31

Lawn-Boy 110-3420

HANDLE-TOP

$

$

Not available

32

Lawn-Boy 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0
