3300/61SRDCE (5901917) - Ferris 61" Mower Deck 61" Mower Deck Group - Housing, Covers, Spindles and Blades Parts Diagram

61" Mower Deck

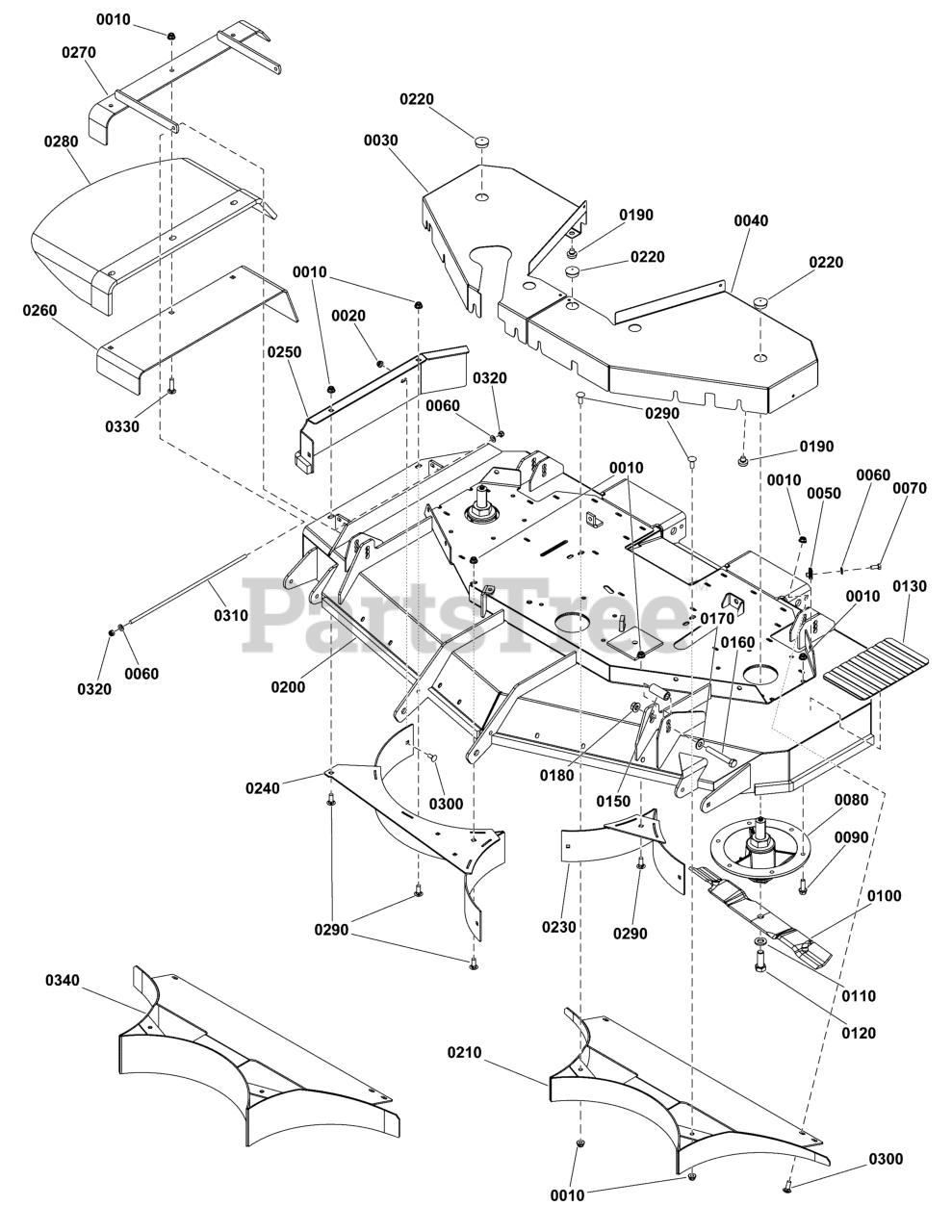

61" Mower Deck Group - Housing, Covers, Spindles and Blades Parts Diagram

  • Title

0010

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0020

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 84007968

PLATE, Guard, Right

$131.99

$

Usually ships in 2-12 days

0

0040

Ferris 84007972

PLATE, Guard, Left

$153.99

$

Usually ships in 2-12 days

0

0050

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0060

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0070

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0080

Ferris 84003242

SPINDLE ASSEMBLY

$351.99

$

In Stock, Qty 5

0

0090

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

0100

Ferris 5103305S

BLADE, SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$84.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

0120

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

0150

Ferris 5108633

SPACER, .52 X .88 X 2.16, CZ

$

$

Currently unavailable

0160

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

0170

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0180

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0190

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0200

Ferris 5601338

DECK SHELL W/DECALS, 3300-61CE, 5420756B

$

$

Currently unavailable

0210

Ferris 5420813AA

WELD, REAR BAFFLE, SHORT,3300CE-61 - BLK
(Superseded to 5420813AAFS)

$192.99

$

Usually ships in 2-12 days

0

0220

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5421097AA

WELD, FRONT BAFFLE, LH, 61 - BLK

$

$

Currently unavailable

0240

Ferris 5421093AA

WELD, FRONT BAFFLE, RH, 61 - BLK

$

$

Currently unavailable

0250

Ferris 5420807B

WELD, PLATE, BLOCK OFF, 61 - RED

$

$

Currently unavailable

0260

Ferris 84008077

PLATE, Support

$129.99

$

Usually ships in 2-12 days

0

0270

Ferris 84008047

FRAME, Chute

$91.99

$

Usually ships in 2-12 days

0

0280

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0290

Ferris 80004497

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0300

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0310

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0320

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0330

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0340

Ferris 5420814AA

WELD, REAR BAFFLE, TALL, 3300CE-61 - BLK

$

$

Currently unavailable
