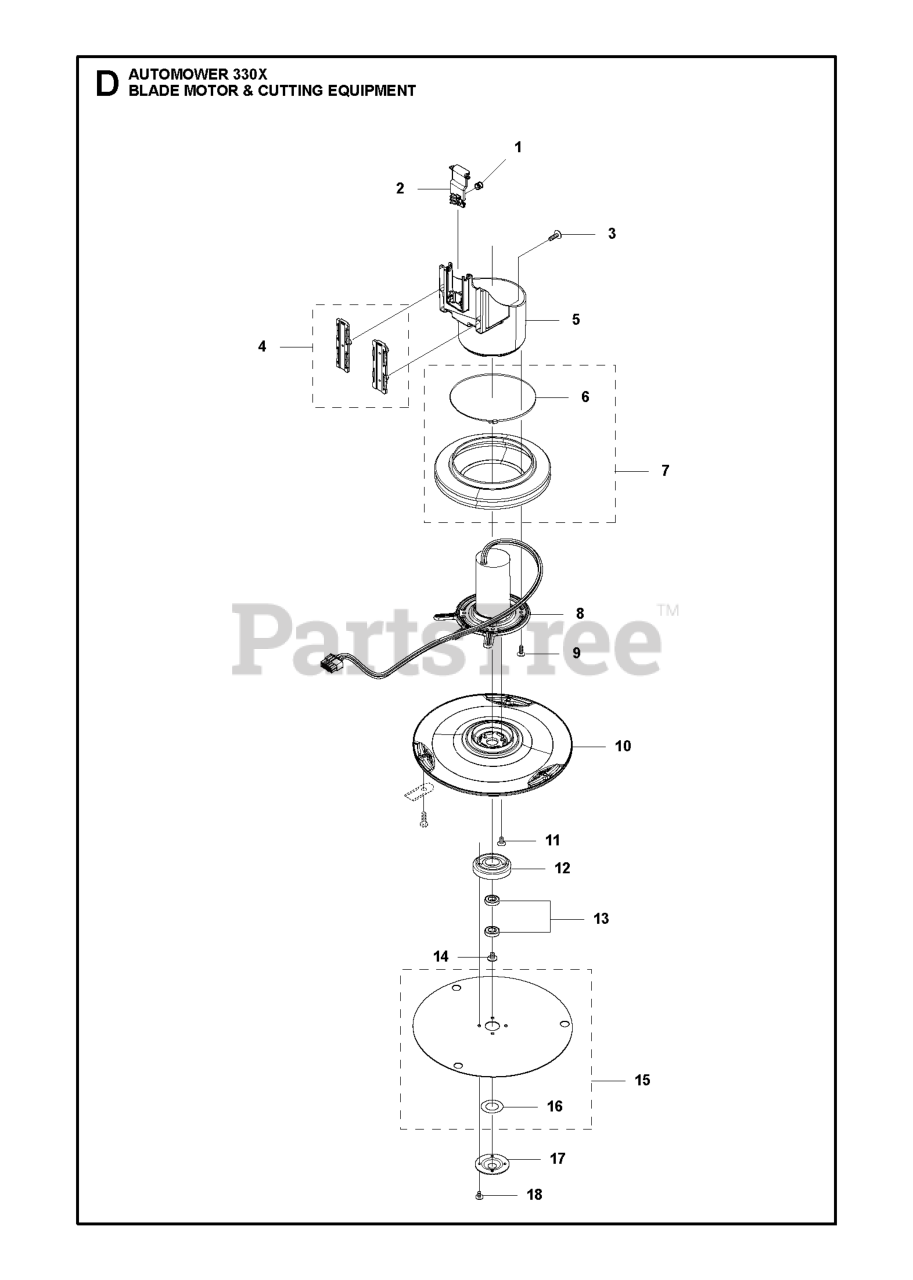

330 X - Husqvarna Automower Robotic Lawn Mower (2014-02) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

18

Husqvarna 575543310

SCREW SILVER 10MM

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

7

Husqvarna 581622101

$

$

Currently unavailable

3

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

6

Husqvarna 580754101

$

$

Currently unavailable

10

Husqvarna 580793002

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 535126401

BEARING

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 579564501

HOUSING CUTTING MOTOR

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580624401

SPRING LINK

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580234801

$

$

Currently unavailable

2

Husqvarna 579564601

LINK MOTOR HOUSING

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 581621801

BEARING KIT

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581621901

$

$

Currently unavailable

16

Husqvarna 535082501

GASKET

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available
