330 X - Husqvarna Automower Robotic Lawn Mower (2013-03) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

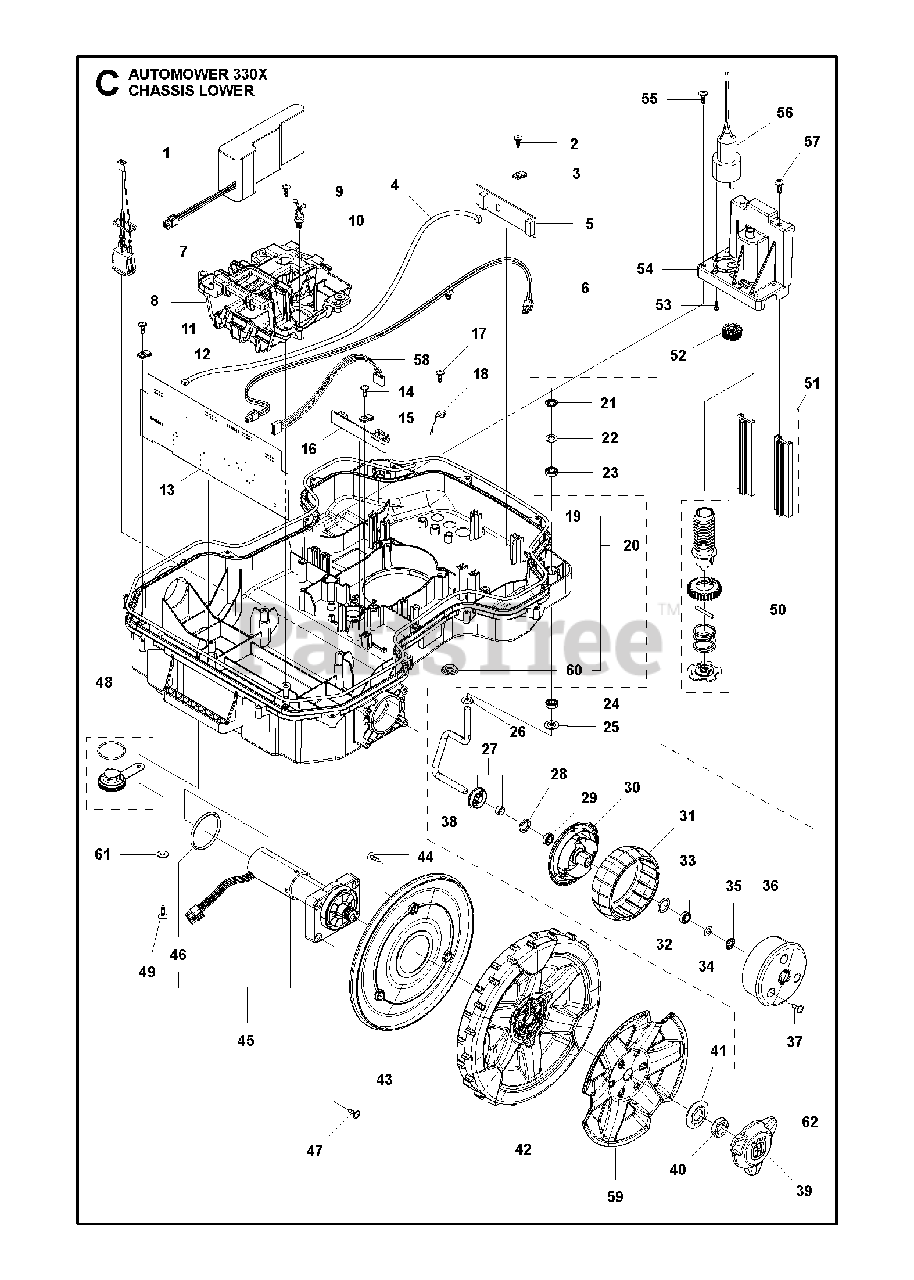

CHASSIS LOWER Parts Diagram

  • Title
1

Husqvarna 580683301

BATTERY
(Superseded to 529606801)

$341.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

3

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 579708201

LOOM LOOP SENSOR

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579660201

PRINTED CIRCUIT ASSY PCBA LOOP

$

$

Not available

$

$

Currently unavailable

7

Husqvarna 579708701

LOOM ON/ OFF

$34.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

9

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

12

$3.49

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

14

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

15

$3.49

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

17

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574874705

Sealing Strip

$9.49

$

In Stock, Qty 6

0

19

Husqvarna 581903201

SEALING STRIP CHASSIS 10 PCS
(Superseded to 574874705)

Note: 10 PCS

$9.49

$

In Stock, Qty 6

0

$

$

Currently unavailable

21

Husqvarna 576019301

LOCK WASHER PUSH-ON TYPE P 8 S

Note: . 62

$

$

Not available

22

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: . 62

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: . 62

$7.99

$

In Stock, only 2 left!

0

24

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: . 62

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 535087803

WASHER FRONT WHEEL CE

Note: . 62

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: . 62

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 581621501

SHIELD KIT

Note: . 62

$7.99

$

In Stock, only 3 left!

0

28

Husqvarna 580487101

SEALING 12X18X3

Note: . 62

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: . 62

$7.99

$

In Stock, only 2 left!

0

30

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: . 62

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: . 62

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 580445101

O-RING 2,62X15,54

Note: . 62

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: . 62

$7.99

$

In Stock, only 2 left!

0

34

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: . 62

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 576019301

LOCK WASHER PUSH-ON TYPE P 8 S

Note: . 62

$

$

Not available

36

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: . 62

$6.99

$

Usually ships in 3-10 days

0

37

Husqvarna 575543314

SCREW 14MM

Note: . 62

$4.99

$

In Stock, Qty 17

0

38

Husqvarna 580336101

SPINDLE SPINDLE FRONT WHEEL RI
(Superseded to 580336102)

Note: . 62

$11.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

40

Husqvarna 731432401

HEXAGON THIN NUT

$7.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

44

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

46

Husqvarna 580443901

Note: . 45

$

$

Currently unavailable

47

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

48

$

$

Not available

49

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

50

$20.99

$

Usually ships in 3-10 days

0

51

Husqvarna 581621801

BEARING KIT

$7.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

55

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

$

$

Currently unavailable

58

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

$20.99

$

In Stock, only 1 left!

0

59

Husqvarna 579505701

WHEEL COVER REAR WHEEL

$17.99

$

In Stock, only 1 left!

0

60

Husqvarna 581822501

Note: . 20

$

$

Currently unavailable

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 581621401

WHEEL KIT FRONT

$

$
