330 (UT-10598) - Homelite Chainsaw Starter & Tank Parts Diagram

Chainsaw

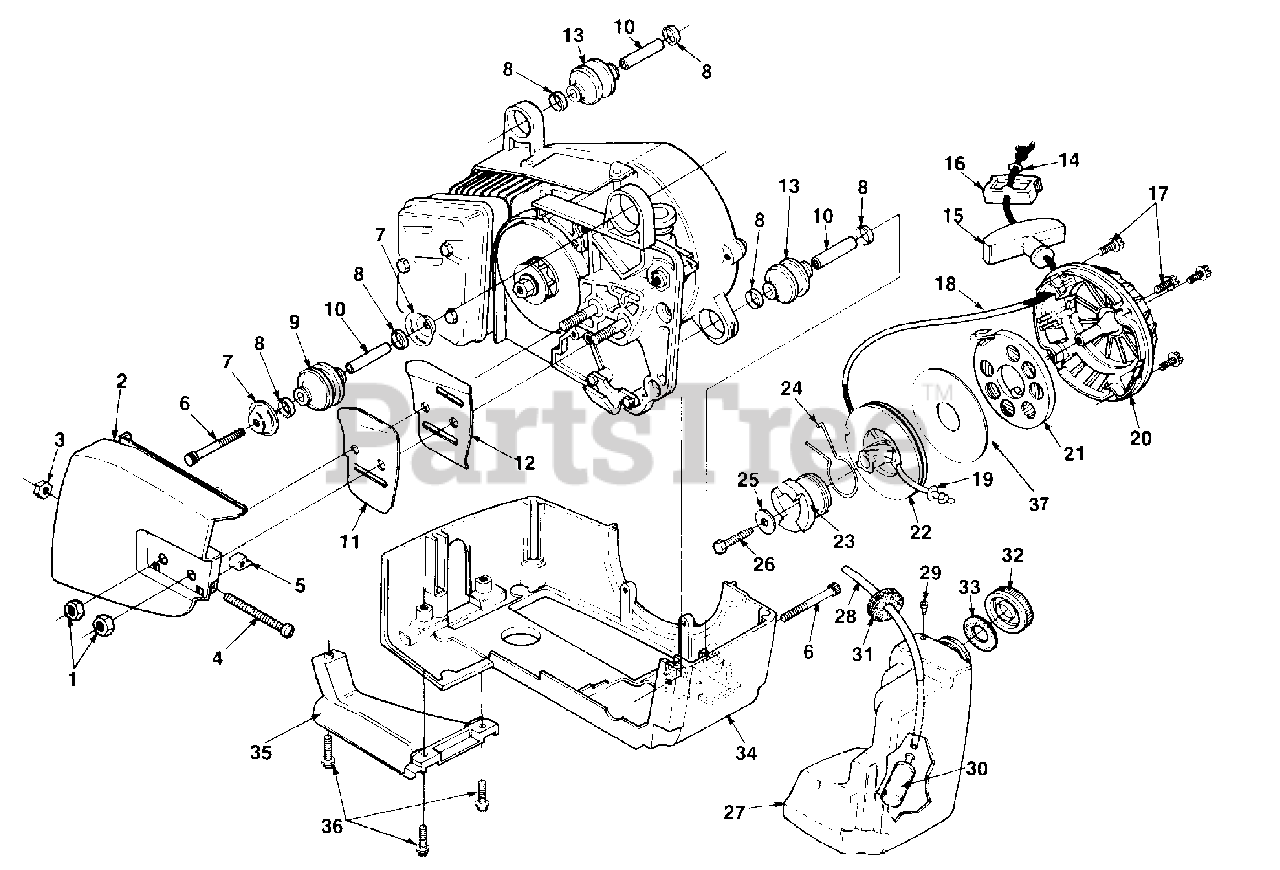

Starter & Tank Parts Diagram

  • Title
1

Homelite 81196

NUT- Hex (5/16-18)
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

2

Homelite A946851

COVER- Drivecase

$

$

Currently unavailable

3

Homelite 81206

NUT- Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

4

Homelite 65175A

SCREW- Guide bar adjusting

$

$

Not available

5

Homelite 651121

PIN- Guide bar adjusting
(Superseded to 651121A)

$

$

Not available

6

Homelite 82377

SCREW- Cap socket hd. (10-24 x 1 3/4)

$

$

Not available

7

Homelite 70440A

WASHER- Vibration isolator

$

$

Currently unavailable

8

Homelite 70432A

RING- Vibration isolator
(Superseded to UP05992)

$

$

Not available

9

Homelite 95868

ISOLATOR- Vibration

$

$

Not available

10

$

$

Not available

11

Homelite 95453

PLATE- Guide bar (outer)

$

$

Not available

12

Homelite 95452

PLATE- Guide bar (inner)

$

$

Not available

13

Homelite 95915

ISOLATOR- Vibration

$13.99

$

Usually ships in 3-7 days

0

14

Homelite 84025

WASHER- Flat (#8)

$

$

Not available

15

Homelite A69962B

GRIP- Starter

$19.99

$

Usually ships in 3-7 days

0

16

Homelite 70018A

INSERT- Rope

$

$

Not available

17

Homelite 80983

SCREW- (8-32 x 1/2)
(Superseded to 80560)

$

$

Not available

18

Homelite A93876

ROPE- Starter
(Superseded to UP06820)

$

$

Not available

19

Homelite 93862

WASHER- Nylon

$4.99

$

Usually ships in 3-7 days

0

20

Homelite A94736

HOUSING- Starter

$

$

Currently unavailable

21

Homelite A94918A

SPRING- Rewind w/retainer
(Superseded to UP06987)

$

$

Not available

22

Homelite 94383A

PULLEY- Starter
(Superseded to UP07446)

$15.99

$

Usually ships in 3-7 days

0

23

Homelite 94384

RATCHET- Starter

$

$

Not available

24

Homelite 94505A

LEVER- Ratchet
(Superseded to UP05639)

$

$

Not available

25

Homelite 95208

WASHER
(Superseded to 98098)

$

$

Not available

26

Homelite 82392

SCREW- Thd. forming (#10 x 1 1/4)

$

$

Not available

27

Homelite A94678A

TANK- Fuel

$

$

Currently unavailable

28

Homelite 9311230

TUBING- 7 1/2 (fuel)
(Superseded to 9311237)

$16.99

$

Usually ships in 3-7 days

0

29

Homelite 96841

VALVE- Check
(Superseded to UP07204)

$

$

Not available

30

Homelite 96639

FILTER- Fuel
(Superseded to UP03871)

$

$

Not available

31

Homelite 95206

SEAL- Foam

$

$

Not available

32

Homelite A94671

CAP- Fuel

$

$

Currently unavailable

33

Homelite 94390

GASKET- Filler cap
(Superseded to UP07434)

$

$

Not available

34

Homelite 938302

HOUSING- Engine (bottom)

$

$

Currently unavailable

35

Homelite 94763

BRACE- Handle

$

$

Not available

36

Homelite 88051

SCREW- Sems hex hd. (10-24 x 3/4)

$

$

Not available

37

$

$

Currently unavailable

Homelite A04291

ASSEMBKY- Complete Starter

$

$

Currently unavailable
