330 - Poulan Chainsaw, Type 1 (2006-09) Handle & Controls Parts Diagram

Chainsaw, Type 1

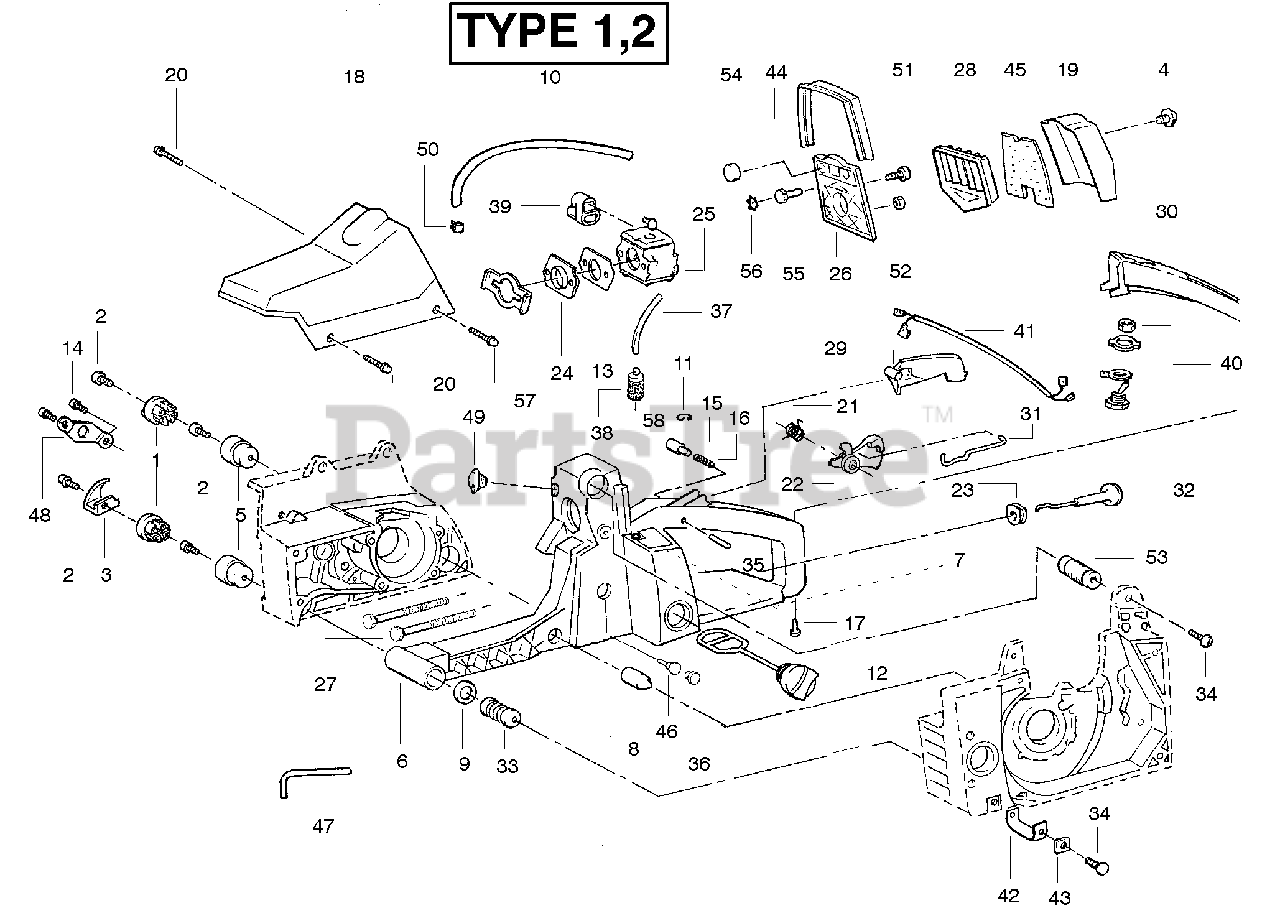

Handle & Controls Parts Diagram

  • Title

1

Electrolux/AYP 530027732

Retainer-Chain Catcher

$

$

Not available

2

Electrolux/AYP 530016057

Screw

$4.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530027733

Chain Catcher

$

$

Not available

4

Electrolux/AYP 530049248

Knob-Carb. Cover

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530042080

Lower Isolator

$

$

Not available

6

Electrolux/AYP 530069974

Rear Handle & Fuel Tank

$

$

Not available

7

Electrolux/AYP 530019192

Seal Carb. Cover-Left

$2.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530027187

Isolator Limiter

$3.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 530069976

Impulse Line Kit

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530015702

"C" Clip-Throttle Lock

$

$

Not available

12

Electrolux/AYP 530010845

Fuel Cap Ass’y.

$

$

Not available

13

Electrolux/AYP 530069487

Gasket - Carb.

$

$

Not available

14

Electrolux/AYP 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 530029666

Button Throttle Lock

$

$

Not available

16

Electrolux/AYP 530024772

Spring-Throttle

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530015716

Screw

$

$

Not available

18

Electrolux/AYP 530049271

Cylinder Shield

$

$

Not available

19

Electrolux/AYP 530053440

Carb. Cover Ass’y.

$

$

Not available

20

Electrolux/AYP 530015650

Screw

$

$

Not available

21

Electrolux/AYP 530027134

Spring-Trigger Latch

$2.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530027133

Throttle Trigger

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530036053

Grommet-Choke Rod

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530049465

Bracket-Intake

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530069895

Carburetor Kit w/limiter caps

$

$

Not available

26

Electrolux/AYP 530049260

Air Filter Base

$

$

Not available

27

Electrolux/AYP 530049562

Carb. Mounting Stud

$

$

Not available

28

Electrolux/AYP 503553902

Air Filter

$

$

Not available

29

Electrolux/AYP 530027135

Throttle Lockout

$

$

Not available

30

Electrolux/AYP 530049257

Rear Handle Cover

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530027073

Throttle Wire

$6.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 530027075

Rod & Wire Choke

$3.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530069384

Isolator Kit

$

$

Not available

34

Electrolux/AYP 530015871

Screw
(Superseded to 530015650)

$

$

Not available

35

Electrolux/AYP 530015701

Dowel Pin-Trigger

$2.23

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530038264

Plug-Bronze Vent

$

$

Not available

37

Electrolux/AYP 530069910

Fuel Line Kit

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530091878

Fuel Pick-up Ass’y.

$

$

Not available

39

Electrolux/AYP 530049265

Grommet-Carburetor

$

$

Not available

40

Electrolux/AYP 530069225

Switch Kit

$

$

Not available

41

Electrolux/AYP 530027138

Lead Wire Ass’y.

$

$

Not available

42

Electrolux/AYP 530037009

AV Strap

$

$

Not available

43

Electrolux/AYP 530037012

Strap Retainer Plate

$4.99

$

In Stock, Qty 9

0

44

Electrolux/AYP 530049739

Sound Strip

$

$

Not available

45

Electrolux/AYP 530049684

Sound Foam

$

$

Not available

46

Electrolux/AYP 530026119

Check Valve

$5.99

$

In Stock, Qty 8

0

47

Electrolux/AYP 530031159

Hex Wrench 5/32

$4.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 530029347

Bracket-Retainer

$

$

Not available

49

Electrolux/AYP 530025922

Plug-Air Box

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530053893

Clamp, Hose

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530015598

Screw-Air Filter Base

$

$

Not available

52

Electrolux/AYP 530049561

Nut-Carb

$3.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 530047334

Cylinder Mount Ass’y.

$

$

Not available

54

Electrolux/AYP 530027399

Bumper Carb Cover

$3.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 530015839

Screw-Carb Knob

$

$

Not available

56

Electrolux/AYP 530016199

Retaining Ring

$3.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 530049273

Bracket-Carb Stud

$

$

Not available

58

Electrolux/AYP 530019191

Seal Carb Cover-Right

$

$

Not available
