33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) SPINDLE, PULLEYS, AND DRIVE BELT Parts Diagram

Rear-Engine Riding Mower

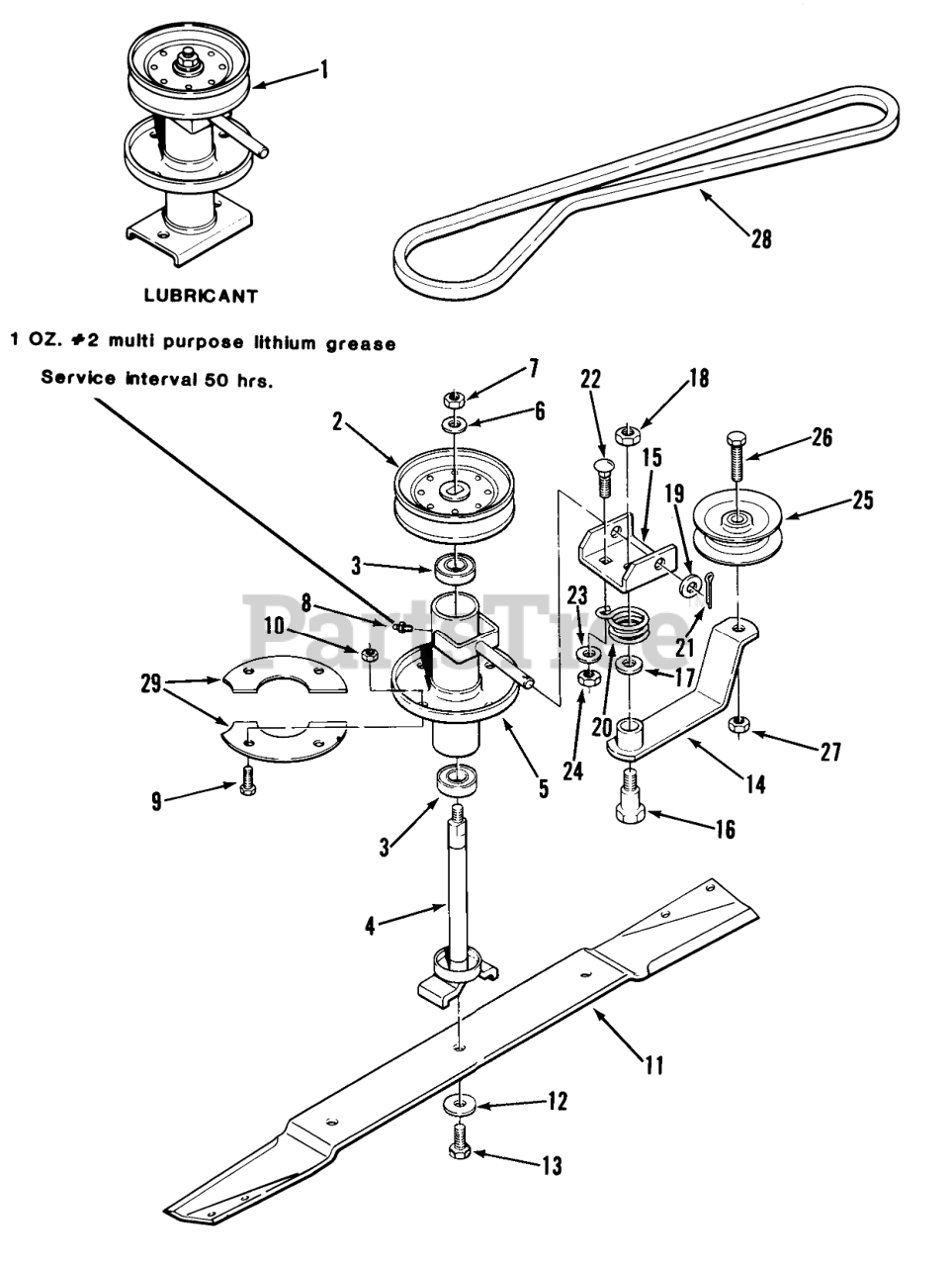

SPINDLE, PULLEYS, AND DRIVE BELT Parts Diagram

  • Title
1

Toro 110393

Spindle Assy Complete
(Superseded to 113168)

$

$

Not available

2

Toro 110441

PULLEY SPINDLE

$

$

Not available

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

4

Toro 110442

Shaft And Blade Saddle Assy
(Superseded to 111140)

$323.99

$

Usually ships in 3-6 days

0

5

Toro 110446

Spindle Housing Assy
(Superseded to 113167)

$353.99

$

Usually ships in 3-6 days

0

6

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

7

Toro 110449

Top Lock Nut 3/8-24

$

$

Not available

8

Toro 1030

Zerk

$

$

Not available

9

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

11

Toro 110397

Mower Blade
(Superseded to 112560)

$152.99

$

Usually ships in 3-6 days

0

12

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

13

Toro 110450

Eslok Bolt 3/8-24 x 1

$

$

Not available

14

Toro 110398

ASSY LEVER R

$

$

Not available

15

Toro 110400

CHANNEL PIVOT R

$

$

Not available

16

Toro 108176

BOLT-SHOULDER

$

$

Not available

17

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

18

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

19

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

20

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

21

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

22

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

24

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

25

Toro 110401

PULLEY IDLER

$

$

Not available

26

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

27

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

28

Toro 110420

Mower Drive Belt
(Superseded to 114567)

$30.99

$

In Stock, Qty 9

0

29

Toro 110966

SPACER SPINDLE

$

$

Not available
