33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) PTO CLUTCH, PULLEYS, AND CONTROLS Parts Diagram

Rear-Engine Riding Mower

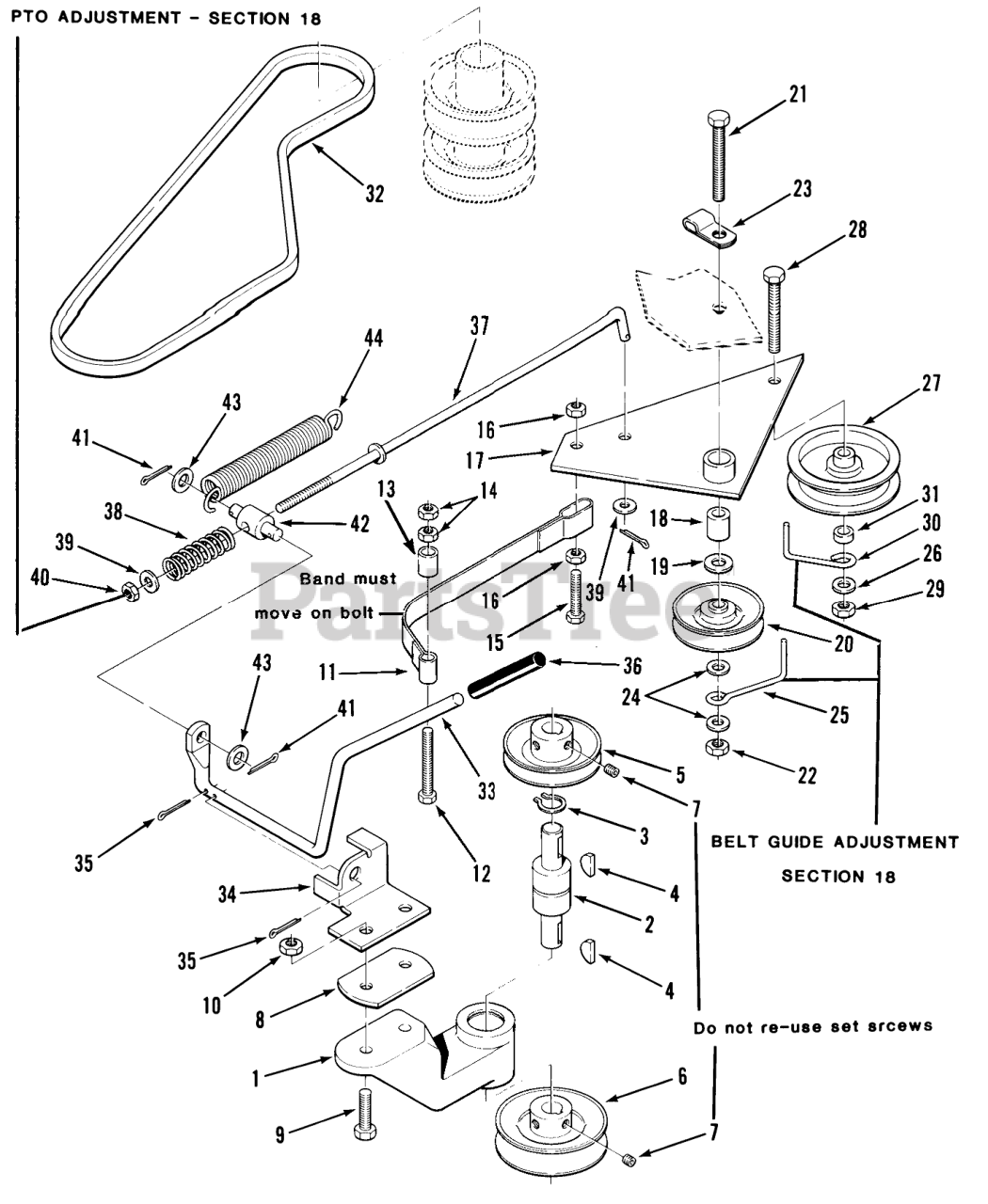

PTO CLUTCH, PULLEYS, AND CONTROLS Parts Diagram

  • Title
1

Toro 8971

Jack Shaft Housing
(Superseded to 104176-01)

$

$

Not available

2

Toro 106388

BEARING-INT SHAFT

$164.99

$

Usually ships in 3-6 days

0

3

Toro 936021

Snap Ring
(Superseded to 32120-10)

$1.49

$

In Stock, Qty 20+

0

4

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

5

Toro 110440

PULLEY

$

$

Not available

6

Toro 108172

PULLEY

$86.99

$

Usually ships in 3-6 days

0

7

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 110365

PLATE SPACER R

$

$

Not available

9

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

11

Toro 110371

PT0 Brake Band
(Superseded to 112165)

$62.99

$

Usually ships in 3-6 days

0

12

Toro 913215

BOLT 5/16-18X2 1/4

$

$

Not available

13

Toro 110372

SPACER

$

$

Not available

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

16

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

17

Toro 110366

PT0 Clutch Lever Assy
(Superseded to 111054)

$

$

Not available

18

Toro 110369

SPACER

$

$

Not available

19

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

20

Toro 110370

IDLER PULLEY R
(Superseded to 93-0320)

$21.99

$

In Stock, only 4 left!

0

21

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 14

0

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

23

Toro 110618

CLAMP DOUBLE

$

$

Not available

24

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

25

Toro 107288

GUIDE-BELT

$

$

Not available

26

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

27

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

28

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

29

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

30

Toro 103408

RETAINER-BELT

$

$

Not available

31

Toro 104525

SPACER
(Superseded to 93-3658)

$9.99

$

Usually ships in 3-6 days

0

32

Toro 110376

V-BELT

$69.99

$

Usually ships in 3-6 days

0

33

Toro 110373

PT0 Handle
(Superseded to 111056)

$

$

Not available

34

Toro 110374

PT0 Handle Pivot Bracket
(Superseded to 111055)

$

$

Not available

35

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

36

Toro 9038

GRIP

$6.99

$

Usually ships in 3-6 days

0

37

Toro 110375

PT0 Handle To Lever Rod
(Superseded to 111676)

$

$

Not available

38

Toro 106573

SPRING-CLUTCH

$

$

Not available

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

41

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

42

Toro 110429

Trunnion

$

$

Not available

43

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

44

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0
