33-08BP01 (A-85) - Toro Rear-Engine Riding Mower (1985) MECHANICAL TRANSMISSION-5-SPEED Parts Diagram

Rear-Engine Riding Mower

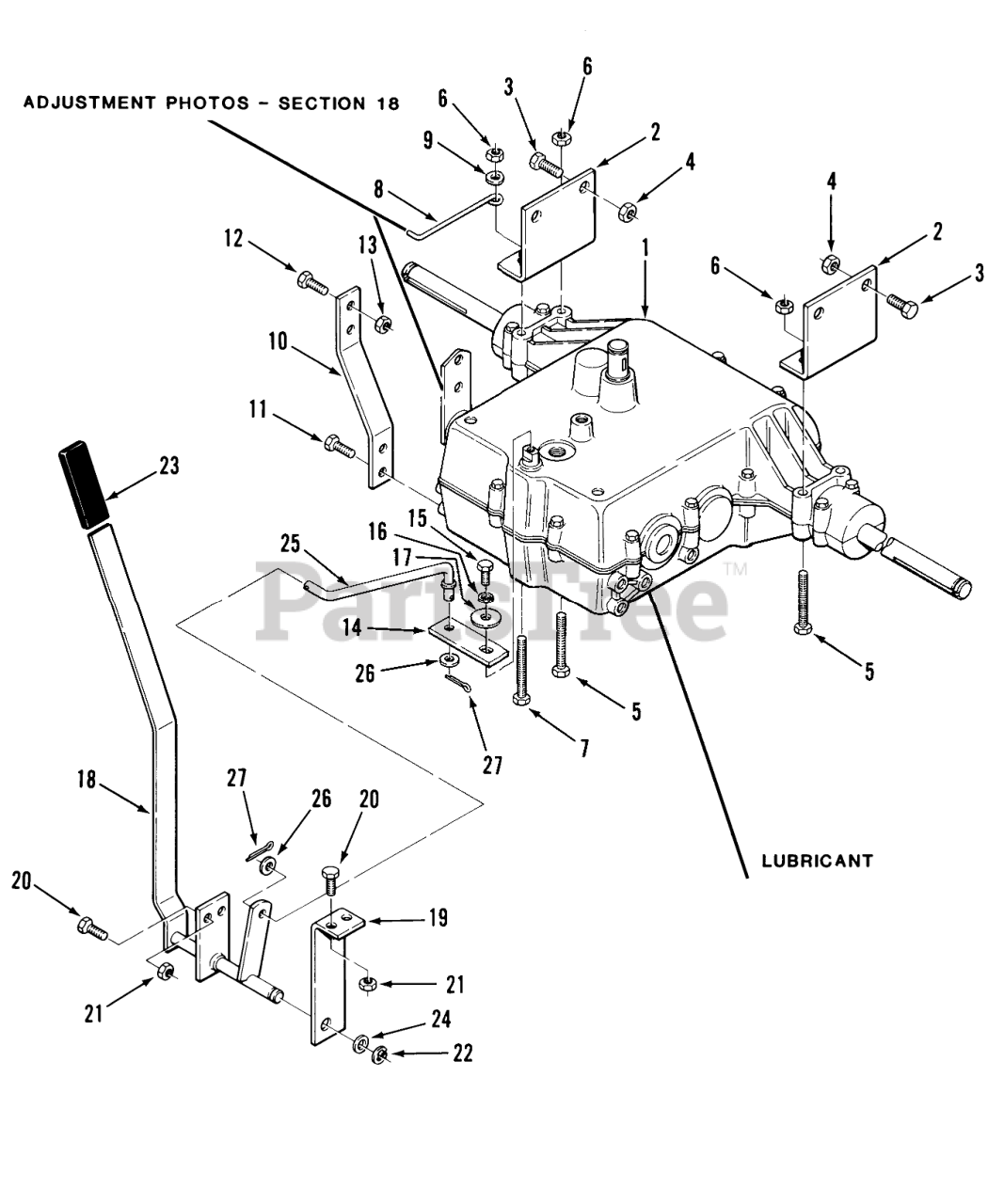

MECHANICAL TRANSMISSION-5-SPEED Parts Diagram

  • Title
1

Toro 110325

Transmission Peerless Model 829

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

2

Toro 110326

Bracket-Rear Axle

$

$

Not available

3

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

5

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

6

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

7

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, Qty 6

0

8

Toro 110328

Brake Stop Rod
(Superseded to 110848)

$

$

Not available

9

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10

Toro 110327

TORQUE STRAP R

$11.99

$

Usually ships in 3-6 days

0

11

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

13

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

14

Toro 110330

LEVER LOWER SHIFT

$

$

Not available

15

Toro 908153

Bolt 1/4-28 X 7/8
(Superseded to 329-5)

$

$

Not available

16

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

17

Toro 104869

WASHER

$

$

Not available

18

Toro 110332

Shift lever Assy

$

$

Not available

19

Toro 110337

SUPPORT SHIFT

$

$

Not available

20

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

21

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

23

$2.49

$

Usually ships in 3-6 days

0

24

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

25

Toro 110331

ROD - LOWER SHIFT

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

27

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available
