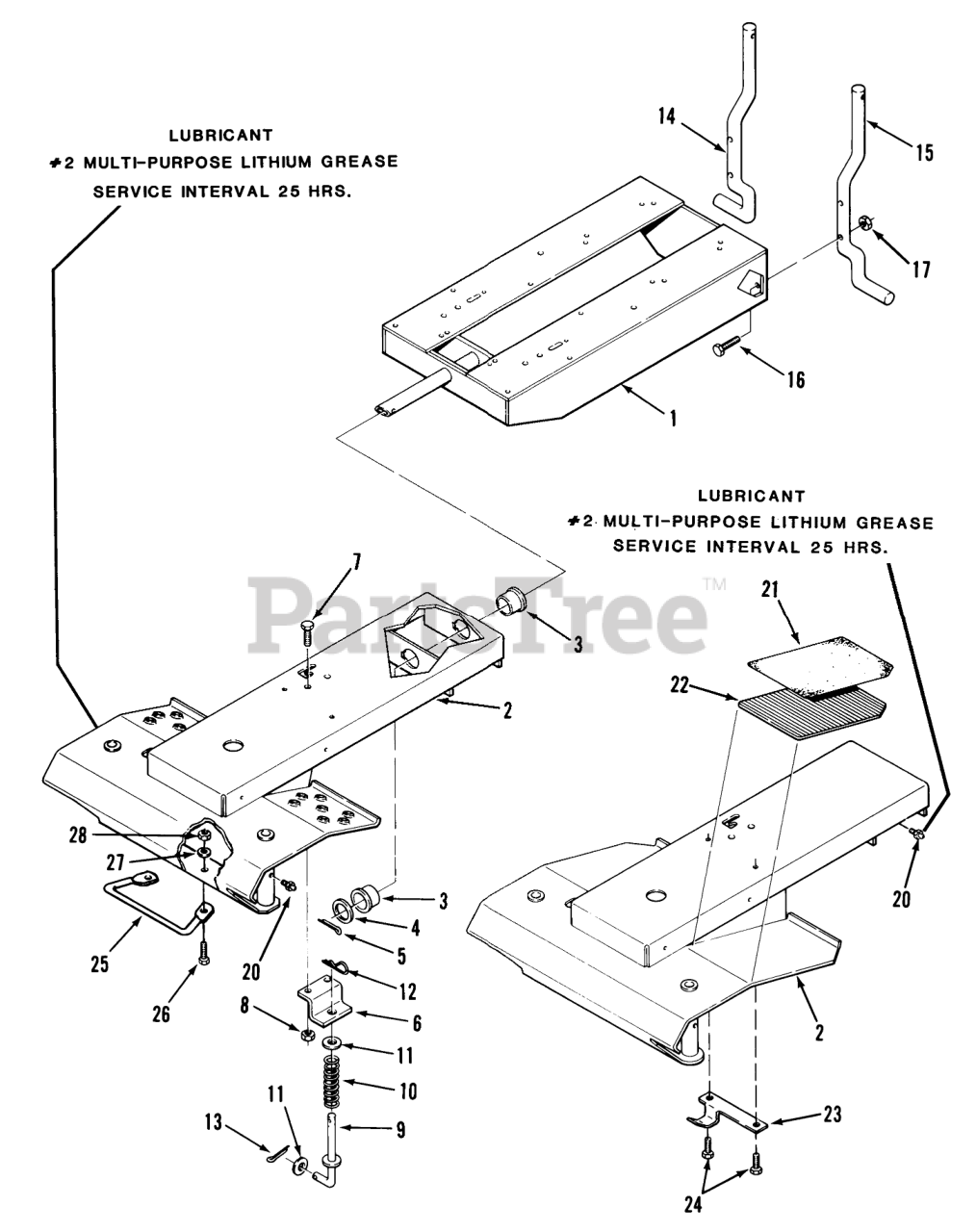

33-08B504 (108-5) - Toro Rear-Engine Riding Mower (1988) FRAME Parts Diagram

Rear-Engine Riding Mower

FRAME Parts Diagram

  • Title
1

Toro 112502

ASS'Y-FRAME REAR R

$843.99

$

Usually ships in 3-6 days

0

Toro 113302

Rear Frame 112-C Only

$

$

Not available

2

Toro 111303

ASSY FRONT FRAME R

$

$

Not available

Toro 112524

Front Frame 112-C Only

$

$

Not available

3

Toro 110311

BEARING FLANGE

$

$

Not available

4

Toro 110426

WASHER

$

$

Not available

5

Toro 932037

Pin-Cotter
(Superseded to 9320374)

$

$

Not available

6

Toro 110406

BRACKET R

$

$

Not available

7

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 110913

ROD ASSY R

$

$

Not available

10

Toro 109229

SPRING-COMPRESSION

$60.99

$

Usually ships in 3-6 days

0

11

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

14

Toro 111088

REAR ROD RH B

$

$

Not available

15

Toro 111087

REAR ROD LH B

$219.99

$

Usually ships in 3-6 days

0

16

Toro 911439

BOLT 5/16-18X1 1/2

$

$

Not available

17

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

20

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$7.49

$

In Stock, only 1 left!

0

21

Toro 111300

PAD FOOTREST RH

$

$

Not available

Toro 111299

PAD FOOTREST LH

$

$

Not available

22

Toro 111324

PAD FOOTREST RH

$54.99

$

Usually ships in 3-6 days

0

Toro 111325

PAD FOOTREST LH

$

$

Not available

23

Toro 112726

BRACKET-SWITCH R

$

$

Not available

24

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 114184

Lift Handle

$

$

Not available

26

Toro 913160

BOLT 5/16-18 X 3/4

$

$

Not available

27

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

28

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
