33-08B402 (108-4) - Toro Rear-Engine Riding Mower (1988) AIR FILTER & CARBURETOR Parts Diagram

Rear-Engine Riding Mower

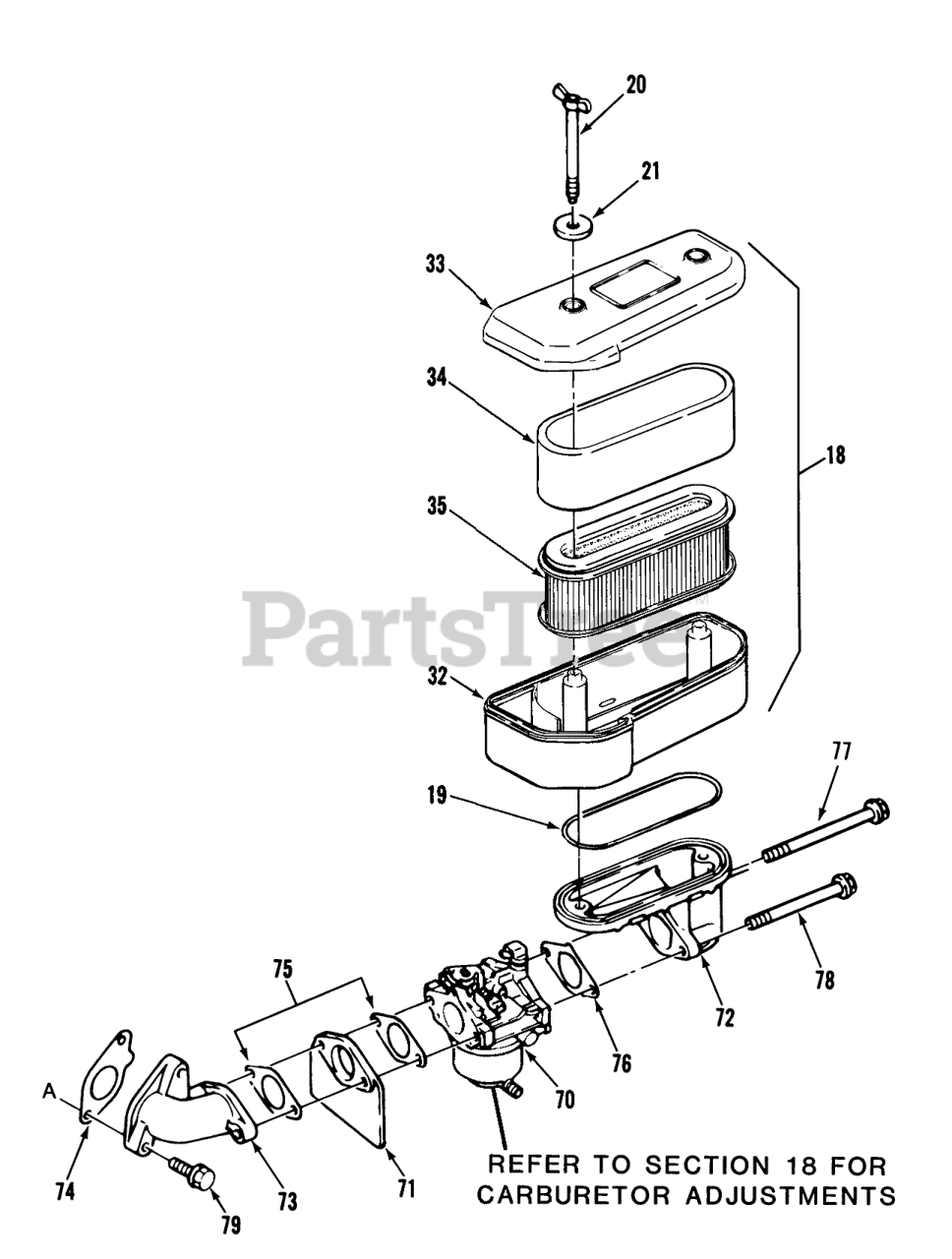

AIR FILTER & CARBURETOR Parts Diagram

  • Title
18

Toro KW10013

Air Filter Assy (includes items 32, 33, 34 & 35)

$

$

Not available

19

Toro KW10012

GASKET

$

$

Not available

20

$

$

Not available

21

Toro KW10200

WASHER

$

$

Not available

32

Toro KW10246

CASE-AIR FILTER

$

$

Not available

33

Toro KW10015

CAP-AIR FILTER

$

$

Not available

34

Toro KW10016

ELEMENT-AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

35

Toro KW10017

AIR CLEANER ELEMENT

$

$

Not available

70

Toro KW10291

ASS'Y-CARBURETOR

$

$

Not available

71

Toro KW10072

INSULATOR

$

$

Not available

72

Toro KW10070

MANIFOLD INTAKE

$

$

Not available

73

Toro KW10071

MANIFOLD INTAKE

$

$

Not available

74

Toro KW10007

GASKET

$

$

Not available

75

Toro KW10008

GASKET

$

$

Not available

76

Toro KW10009

GASKET

$

$

Not available

77

$

$

Not available

78

$

$

Not available

79

Toro KW10034

BOLT, FLANGED 8X25

$

$

Not available
