33-08B301 (108-3) - Toro Rear-Engine Riding Mower (1985) FUEL SYSTEM Parts Diagram

Rear-Engine Riding Mower

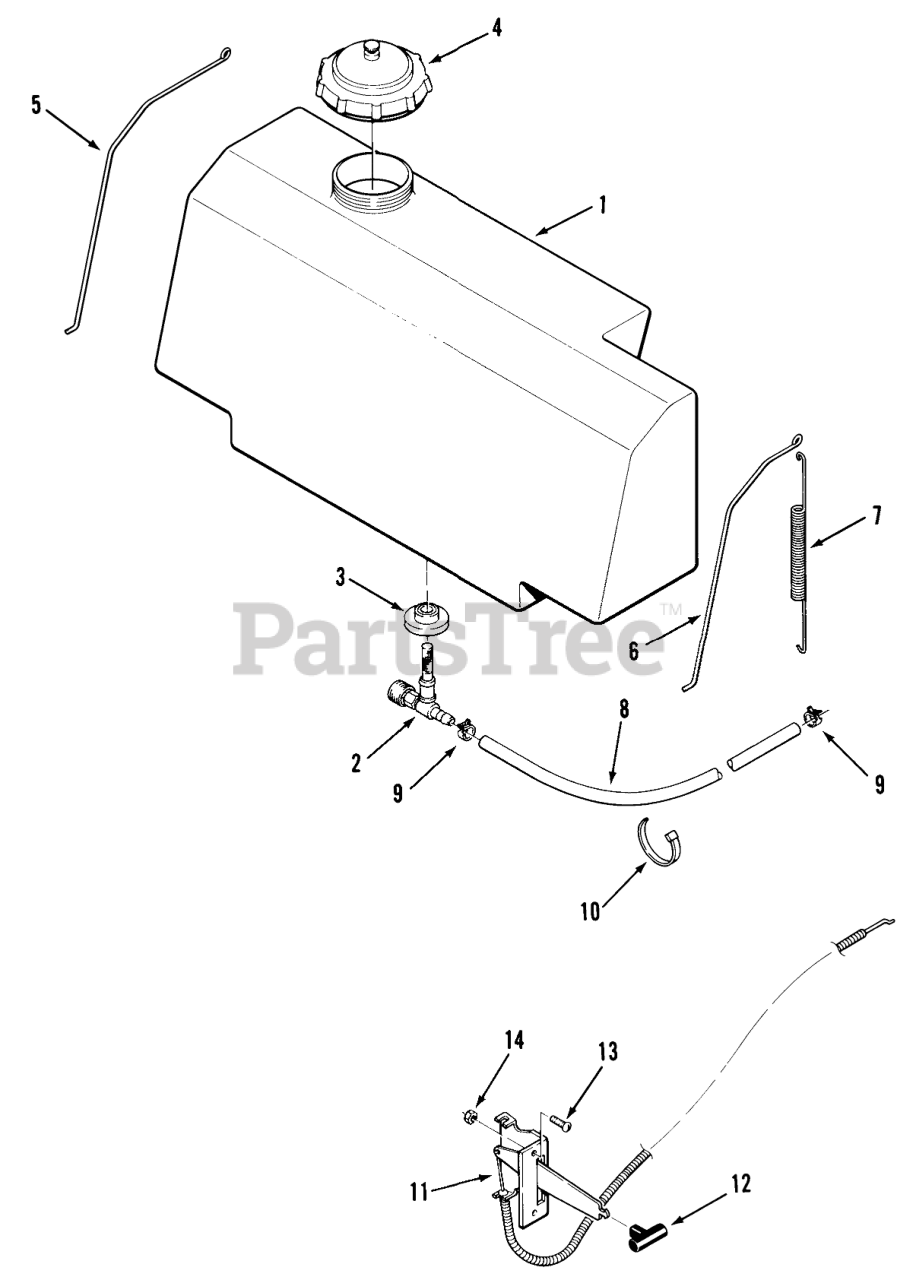

FUEL SYSTEM Parts Diagram

  • Title

1

Toro 110423

FUEL TANK ASSY

$

$

Not available

2

Toro 110425

Valve
(Superseded to 104048)

$31.99

$

In Stock, only 1 left!

0

3

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

4

Toro 110352

ASSY FUEL CAP

$

$

Not available

5

Toro 110925

RETAINER TANK RH

$

$

Not available

6

Toro 110926

RETAINER TANK LH

$

$

Not available

7

Toro 110927

SPRING EXTENSION

$

$

Not available

8

Toro 8714

Hose
(Superseded to 101338)

$

$

Not available

9

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

10

Toro 100571

PLASTIC TIE

$

$

Not available

11

Toro 110878

CONTROL-THROTTLE

$77.99

$

In Stock, only 1 left!

0

12

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

13

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

14

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0
